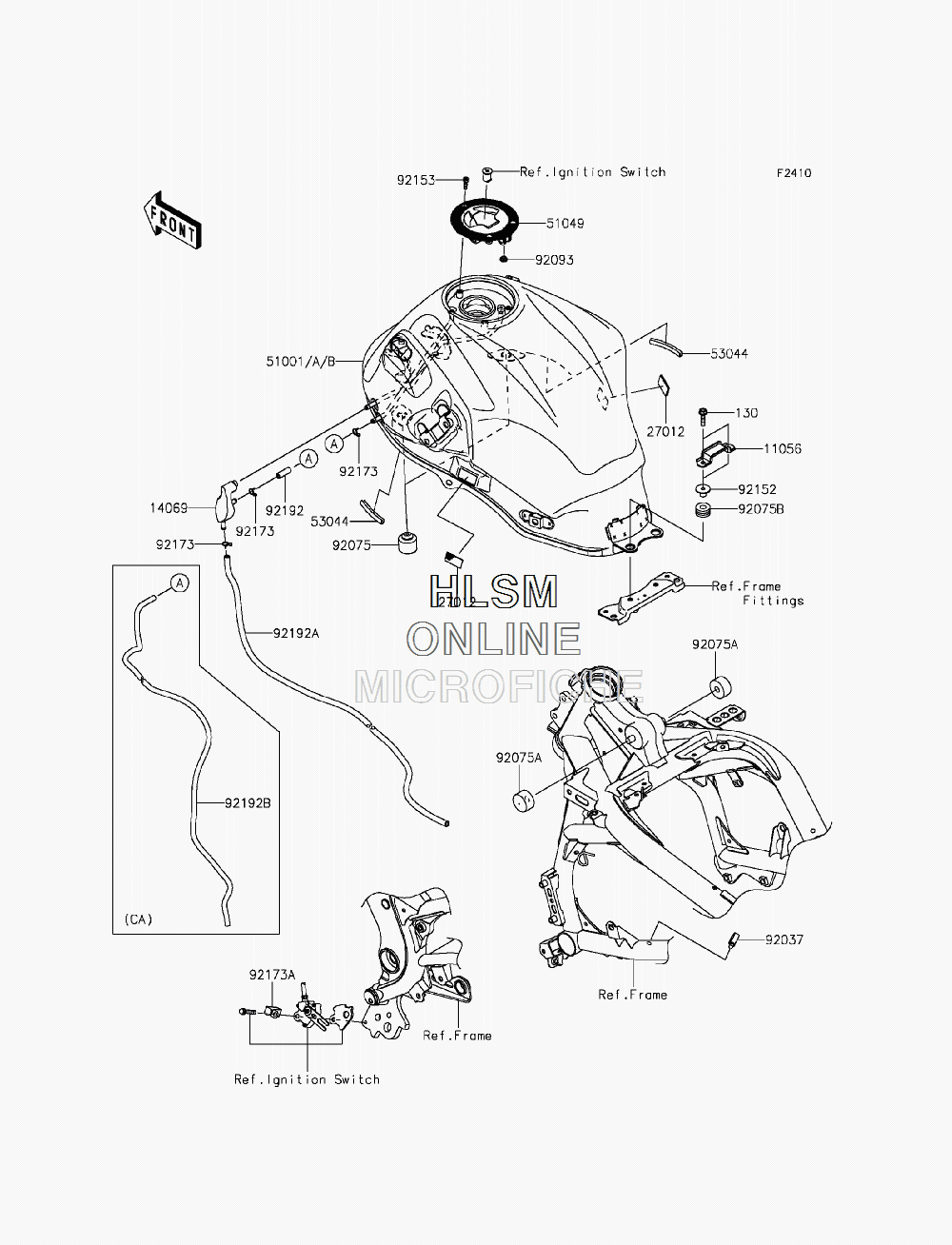

FUEL TANK для Kawasaki VERSYS 650 LT (KLE650FGFAS) - 2016 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0625 BOLT-FLANGED, 6X25
    BOLT-FLANGED, 6X25
  • 11056
    11056-0361 BRACKET, SEAT
    BRACKET, SEAT
  • 14069
    14069-0011 BREATHER (EXCEPT CALIF.)
    BREATHER (EXCEPT CALIF.)
  • 27012
    27012-0784 HOOK, DUAL LOCK FASTENER, 20X30
    HOOK, DUAL LOCK FASTENER, 20X30
  • 51001B
    51001-0812-660 TANK-COMP-FUEL, M.S.BLACK
    TANK-COMP-FUEL, M.S.BLACK
  • 51049
    51049-0714 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 53044
    53044-1249 TRIM, L=60
    TRIM, L=60
  • 92037
    92037-1827 CLAMP, HOSE
    CLAMP, HOSE
  • 92075
    92075-1002 DAMPER
    DAMPER
  • 92075A
    92075-125 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075B
    92075-1690 DAMPER, 10X24X12
    DAMPER, 10X24X12
  • 92093
    92093-1030 SEAL, FUEL TANK CAP
    SEAL, FUEL TANK CAP
  • 92152
    92152-0910 COLLAR, 6.5X10X13.1
    COLLAR, 6.5X10X13.1
  • 92153
    92153-1616 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92173
    92173-0049 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92173
    92173-0049 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92173A
    92173-0833 CLAMP
    CLAMP
  • 92192
    92192-0910 TUBE, 5X9X26 (EXCEPT CALIF.)
    TUBE, 5X9X26 (EXCEPT CALIF.)
  • 92192A
    92192-1237 TUBE, 5X9X900 (EXCEPT CALIF.)
    TUBE, 5X9X900 (EXCEPT CALIF.)
  • 92192B
    92192-1403 TUBE, 5X9X940 & 35 (CALIF. ONLY)
    TUBE, 5X9X940 & 35 (CALIF. ONLY)
