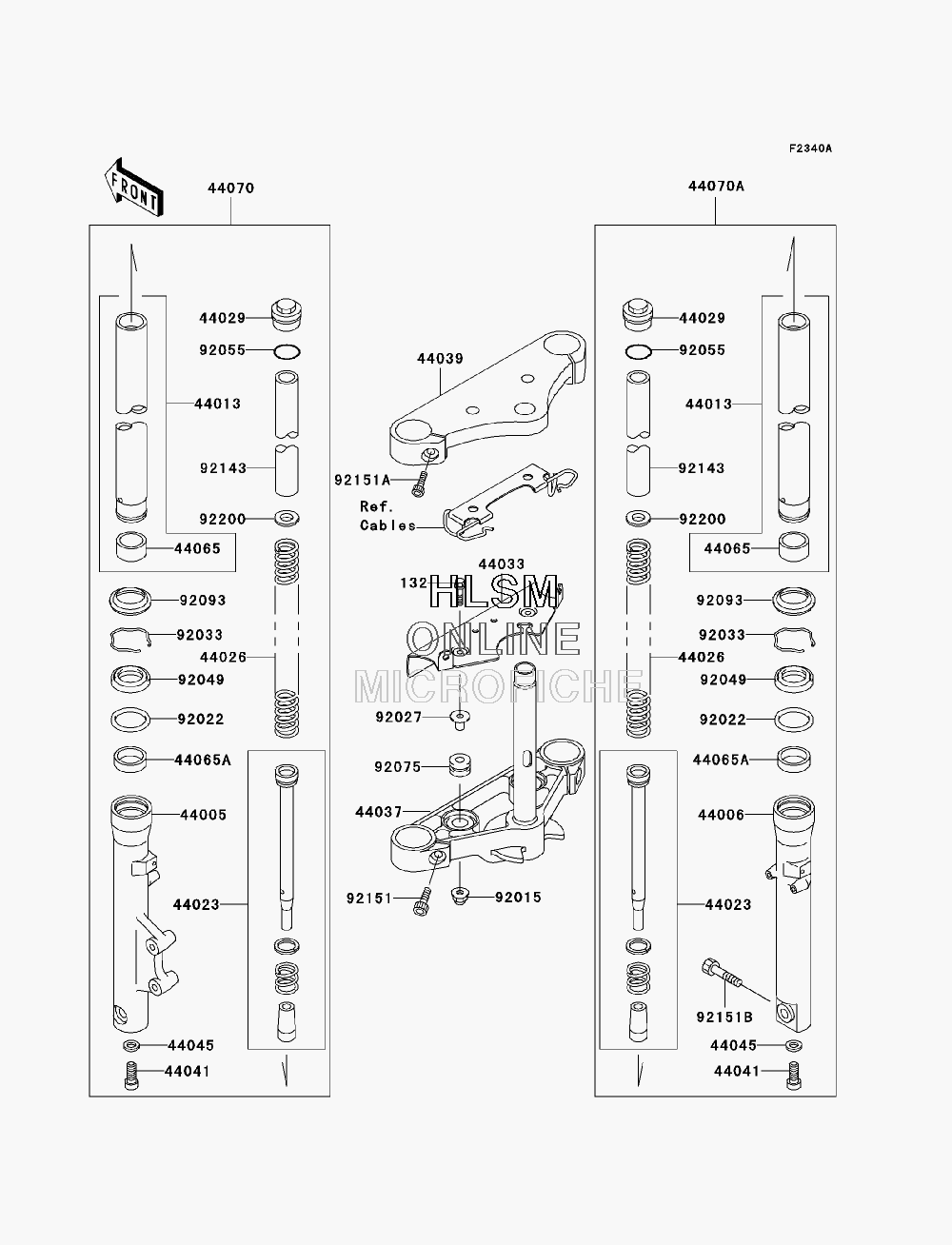

FRONT FORK для Kawasaki VULCAN 500 LTD (EN500C9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132E0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
4400544005-1365 PIPE-LEFT FORK OUTERPIPE-LEFT FORK OUTER
-
4400644006-1364 PIPE-RIGHT FORK OUTERPIPE-RIGHT FORK OUTER
-
4401344013-1422 PIPE-FORK INNERPIPE-FORK INNER
-
4402344023-1099 CYLINDER-COMP-FORKCYLINDER-COMP-FORK
-
4402644026-1606 SPRING-FRONT FORKSPRING-FRONT FORK
-
4402944029-1147 SEAT-FORK SPRINGSEAT-FORK SPRING
-
4403344033-1213 COVER-FORKCOVER-FORK
-
4403744037-1341 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-1265 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4404144041-040 BOLT, SOCKET, FORK CYLINDERBOLT, SOCKET, FORK CYLINDER
-
4404544045-057 GASKETGASKET
-
4406544065-1114 BUSHING-FRONT FORK, INNER PIPEBUSHING-FRONT FORK, INNER PIPE
-
44065A44065-1115 BUSHING-FRONT FORK, OUTER TUBEBUSHING-FRONT FORK, OUTER TUBE
-
4407044070-1483 DAMPER-ASSY, FORK, LEFT HANDDAMPER-ASSY, FORK, LEFT HAND
-
44070A44070-1484 DAMPER-ASSY, FORK, RIGHT HANDDAMPER-ASSY, FORK, RIGHT HAND
-
9201592015-1385 NUT, CAP, 6MMNUT, CAP, 6MM
-
9202292022-1298 WASHER, FORK OUTER TUBEWASHER, FORK OUTER TUBE
-
9202792027-1847 COLLAR, L=16.1COLLAR, L=16.1
-
9203392033-1036 RING-SNAPRING-SNAP
-
9204992049-1494 SEAL-OIL, FORK OUTER TUBESEAL-OIL, FORK OUTER TUBE
-
9205592055-1321 RING-ORING-O
-
9207592075-1035 DAMPERDAMPER
-
9209392093-1472 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9214392143-1861 COLLAR, FORK, L=250COLLAR, FORK, L=250
-
9215192151-1080 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
92151A92151-1081 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
92151B92151-1082 BOLT, SOCKET, 10X40BOLT, SOCKET, 10X40
-
9220092200-1302 WASHERWASHER
-
