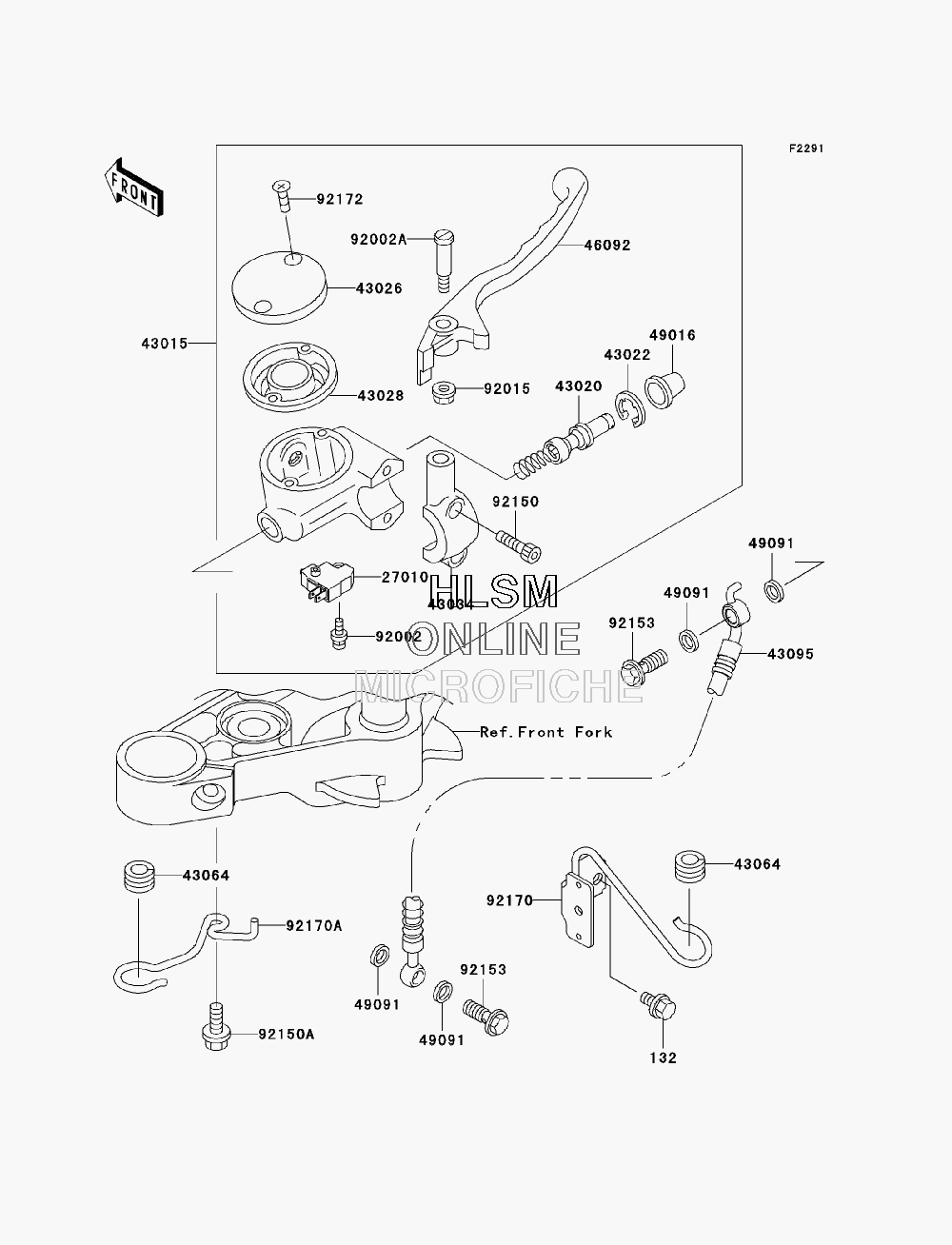

BRAKE - MASTER CYLINDER - FRONT для Kawasaki VULCAN 500 LTD (EN500C9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132E0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0054 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1098 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-1078 CAP-BRAKE, SILVERCAP-BRAKE, SILVER
-
4302843028-1071 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1102 HOLDER-BRAKE, SILVERHOLDER-BRAKE, SILVER
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4309543095-0196 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4609246092-1172 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1561 BOLT, LEVER SETBOLT, LEVER SET
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9215092150-1025 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
92150A92150-1340 BOLT, 6X14BOLT, 6X14
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217092170-1611 CLAMP, HOSECLAMP, HOSE
-
92170A92170-1647 CLAMP, HOSECLAMP, HOSE
-
9217292172-0089 SCREW, 5MMSCREW, 5MM
-
132132E0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0054 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1098 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-1078 CAP-BRAKE, SILVERCAP-BRAKE, SILVER
-
4302843028-1071 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1102 HOLDER-BRAKE, SILVERHOLDER-BRAKE, SILVER
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4309543095-0196 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4609246092-1172 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1561 BOLT, LEVER SETBOLT, LEVER SET
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9215092150-1025 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
92150A92150-1340 BOLT, 6X14BOLT, 6X14
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217092170-1611 CLAMP, HOSECLAMP, HOSE
-
92170A92170-1647 CLAMP, HOSECLAMP, HOSE
-
9217292172-0089 SCREW, 5MMSCREW, 5MM
