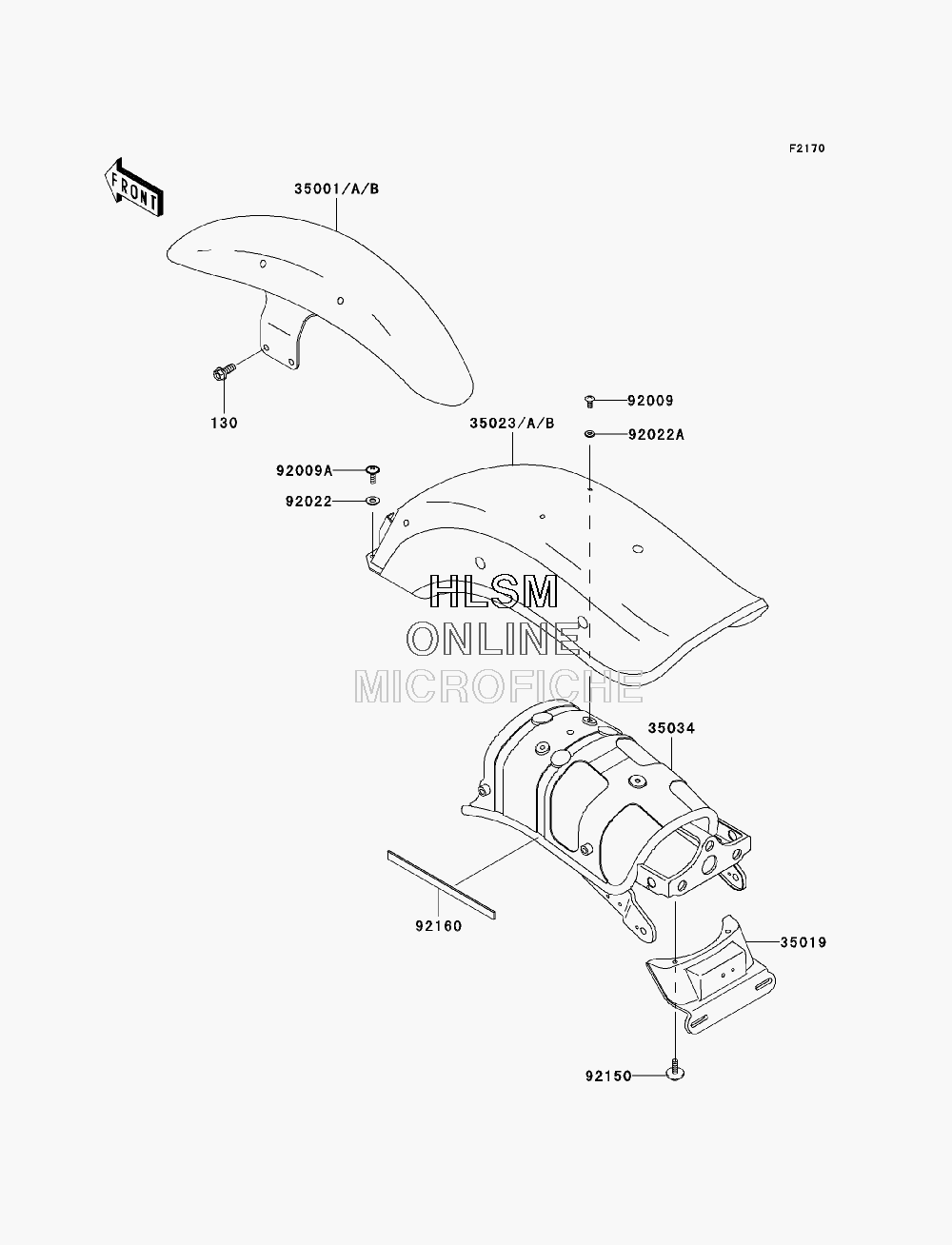

FENDER(S) для Kawasaki VULCAN 500 LTD (EN500C9F) - 2009 года выпуска`
-
№АртикулНазвание
-
130130BA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
35001A35001-1202-19J FENDER-ASSY-FRONT, M.I.REDFENDER-ASSY-FRONT, M.I.RED
-
3501935019-1340 FLAP, REARFLAP, REAR
-
35023A35023-1438-19J FENDER-REAR, M.I.REDFENDER-REAR, M.I.RED
-
3503435034-1264 REINFORCE, REAR FENDERREINFORCE, REAR FENDER
-
9200992009-1652 SCREW, 5X12SCREW, 5X12
-
92009A92009-1663 SCREW, 6X18SCREW, 6X18
-
9202292022-1143 WASHER, 6.5X16X1WASHER, 6.5X16X1
-
92022A92022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9215092150-1133 BOLT, 6X14BOLT, 6X14
-
9216092160-1632 DAMPERDAMPER
-
130130BA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
35001A35001-1202-19J FENDER-ASSY-FRONT, M.I.REDFENDER-ASSY-FRONT, M.I.RED
-
3501935019-1340 FLAP, REARFLAP, REAR
-
35023A35023-1438-19J FENDER-REAR, M.I.REDFENDER-REAR, M.I.RED
-
3503435034-1264 REINFORCE, REAR FENDERREINFORCE, REAR FENDER
-
9200992009-1652 SCREW, 5X12SCREW, 5X12
-
92009A92009-1663 SCREW, 6X18SCREW, 6X18
-
9202292022-1143 WASHER, 6.5X16X1WASHER, 6.5X16X1
-
92022A92022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9215092150-1133 BOLT, 6X14BOLT, 6X14
-
9216092160-1632 DAMPERDAMPER
