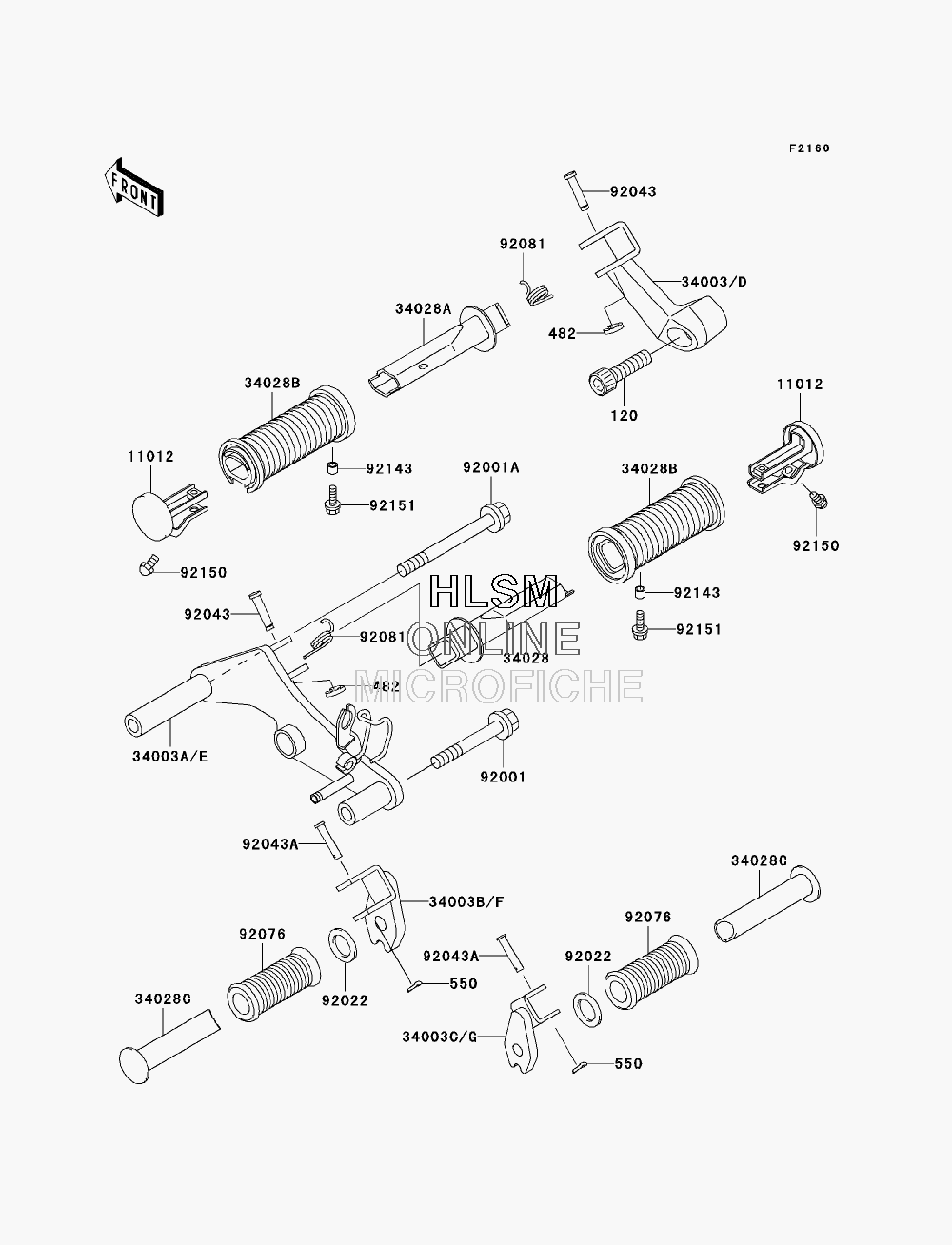

FOOTRESTS для Kawasaki VULCAN 500 LTD (EN500C9F) - 2009 года выпуска
-
№АртикулНазвание
-
120120CB1245 BOLT-SOCKET, 12X45BOLT-SOCKET, 12X45
-
482482EA7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1101211012-1957 CAP, FRONT STEPCAP, FRONT STEP
-
3400334003-0055 HOLDER-STEP, FRONT, LEFT HANDHOLDER-STEP, FRONT, LEFT HAND
-
34003A34003-0056 HOLDER-STEP, FRONT, RIGHT HANDHOLDER-STEP, FRONT, RIGHT HAND
-
34003B34003-0057 HOLDER-STEP, REAR, LEFT HANDHOLDER-STEP, REAR, LEFT HAND
-
34003C34003-0058 HOLDER-STEP, REAR, RIGHT HANDHOLDER-STEP, REAR, RIGHT HAND
-
3402834028-1412 STEP, FRONT, RIGHT HANDSTEP, FRONT, RIGHT HAND
-
34028A34028-1413 STEP, FRONT, LEFT HANDSTEP, FRONT, LEFT HAND
-
34028B34028-1414 STEP, FRONT, RUBBERSTEP, FRONT, RUBBER
-
34028C34028-1420 STEP, REARSTEP, REAR
-
9200192001-1618 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
92001A92001-1751 BOLT, FLANGED, 10X105, BLACKBOLT, FLANGED, 10X105, BLACK
-
9202292022-1568 WASHER, 20X30X2.3WASHER, 20X30X2.3
-
9204392043-1339 PIN, 8X36.5PIN, 8X36.5
-
92043A92043-1464 PIN, 6X28PIN, 6X28
-
9207692076-020 DAMPERDAMPER
-
9208192081-1133 SPRING, STEPSPRING, STEP
-
9214392143-1336 COLLAR, 5.6X8X7COLLAR, 5.6X8X7
-
9215092150-1114 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9215192151-1096 BOLT, SOCKET, 5X20BOLT, SOCKET, 5X20
-
120120CB1245 BOLT-SOCKET, 12X45BOLT-SOCKET, 12X45
-
482482EA7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1101211012-1957 CAP, FRONT STEPCAP, FRONT STEP
-
3400334003-0055 HOLDER-STEP, FRONT, LEFT HANDHOLDER-STEP, FRONT, LEFT HAND
-
34003A34003-0056 HOLDER-STEP, FRONT, RIGHT HANDHOLDER-STEP, FRONT, RIGHT HAND
-
34003B34003-0057 HOLDER-STEP, REAR, LEFT HANDHOLDER-STEP, REAR, LEFT HAND
-
34003C34003-0058 HOLDER-STEP, REAR, RIGHT HANDHOLDER-STEP, REAR, RIGHT HAND
-
3402834028-1412 STEP, FRONT, RIGHT HANDSTEP, FRONT, RIGHT HAND
-
34028A34028-1413 STEP, FRONT, LEFT HANDSTEP, FRONT, LEFT HAND
-
34028B34028-1414 STEP, FRONT, RUBBERSTEP, FRONT, RUBBER
-
34028C34028-1420 STEP, REARSTEP, REAR
-
9200192001-1618 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
92001A92001-1751 BOLT, FLANGED, 10X105, BLACKBOLT, FLANGED, 10X105, BLACK
-
9202292022-1568 WASHER, 20X30X2.3WASHER, 20X30X2.3
-
9204392043-1339 PIN, 8X36.5PIN, 8X36.5
-
92043A92043-1464 PIN, 6X28PIN, 6X28
-
9207692076-020 DAMPERDAMPER
-
9208192081-1133 SPRING, STEPSPRING, STEP
-
9214392143-1336 COLLAR, 5.6X8X7COLLAR, 5.6X8X7
-
9215092150-1114 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9215192151-1096 BOLT, SOCKET, 5X20BOLT, SOCKET, 5X20
