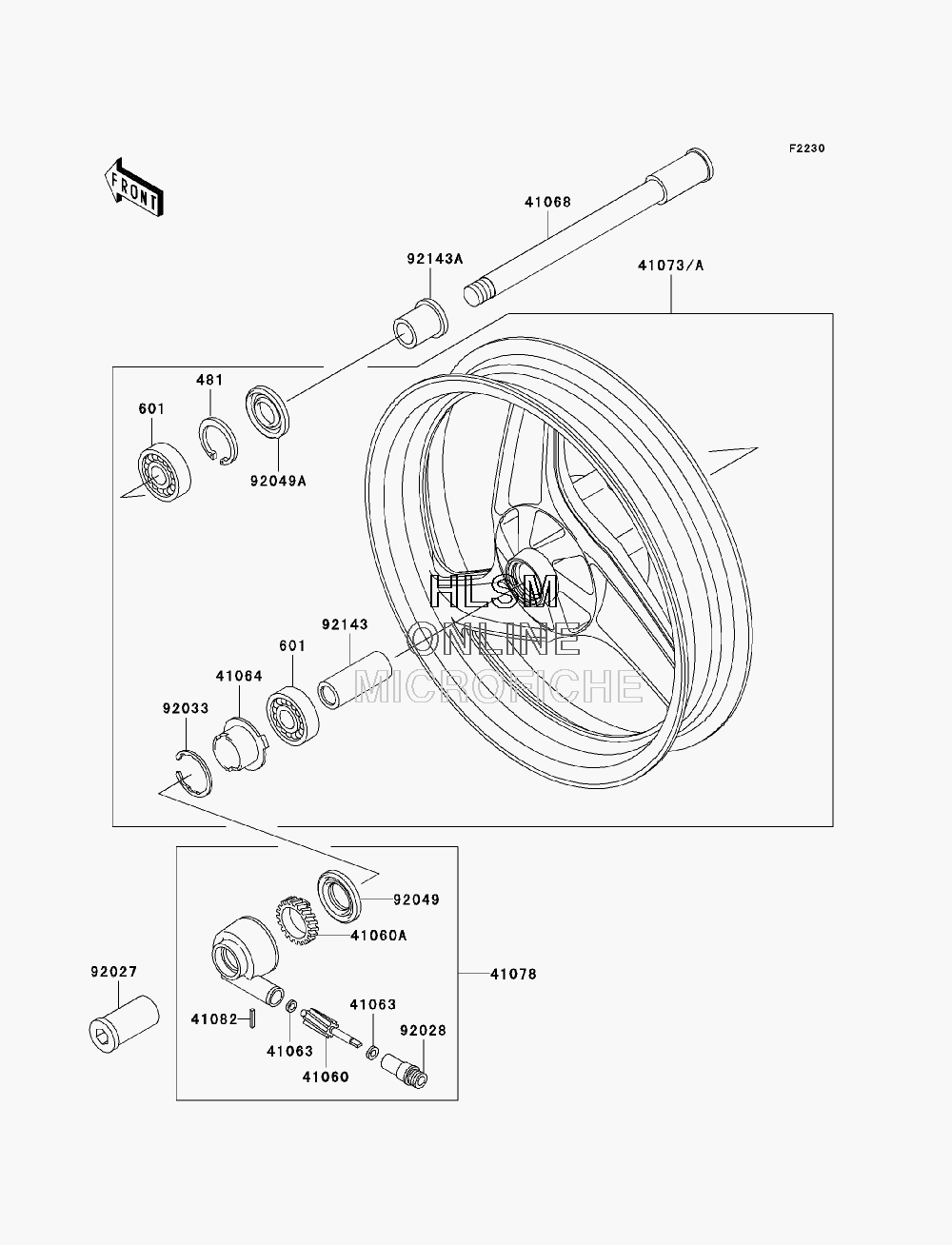

WHEEL - FRONT для Kawasaki NINJA 500R (EX500D9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 481
    481J3500 CIRCLIP-TYPE-C, 35MM
    CIRCLIP-TYPE-C, 35MM
  • 601
    601B6202UU BEARING-BALL
    BEARING-BALL
  • 41060
    41060-1123 GEAR-METER SCREW, 9T
    GEAR-METER SCREW, 9T
  • 41060A
    41060-1124 GEAR-METER SCREW, 23T
    GEAR-METER SCREW, 23T
  • 41063
    41063-001 WASHER, 5.1X9X0.4
    WASHER, 5.1X9X0.4
  • 41064
    41064-1006 RECEIVER-SPEEDOMETER
    RECEIVER-SPEEDOMETER
  • 41068
    41068-1175 AXLE, FRONT
    AXLE, FRONT
  • 41073A
    41073-1543-18F WHEEL-ASSY, FRONT, BLACK
    WHEEL-ASSY, FRONT, BLACK
  • 41078
    41078-1068 CASE-ASSY-METER GEAR
    CASE-ASSY-METER GEAR
  • 41082
    41082-001 PIN, SPRING
    PIN, SPRING
  • 92027
    92027-1726 COLLAR, FRONT AXLE, L=36.5
    COLLAR, FRONT AXLE, L=36.5
  • 92028
    92028-1066 BUSHING, SPEEDOMETER
    BUSHING, SPEEDOMETER
  • 92033
    92033-1041 RING-SNAP, 42MM
    RING-SNAP, 42MM
  • 92049
    92049-1057 SEAL-OIL, BJN30427-C3
    SEAL-OIL, BJN30427-C3
  • 92049A
    92049-1176 SEAL-OIL, MH20354.5
    SEAL-OIL, MH20354.5
  • 92143
    92143-1185 COLLAR, 15.1X20X70
    COLLAR, 15.1X20X70
  • 92143A
    92143-1187 COLLAR, FRONT AXLE, L=24
    COLLAR, FRONT AXLE, L=24
