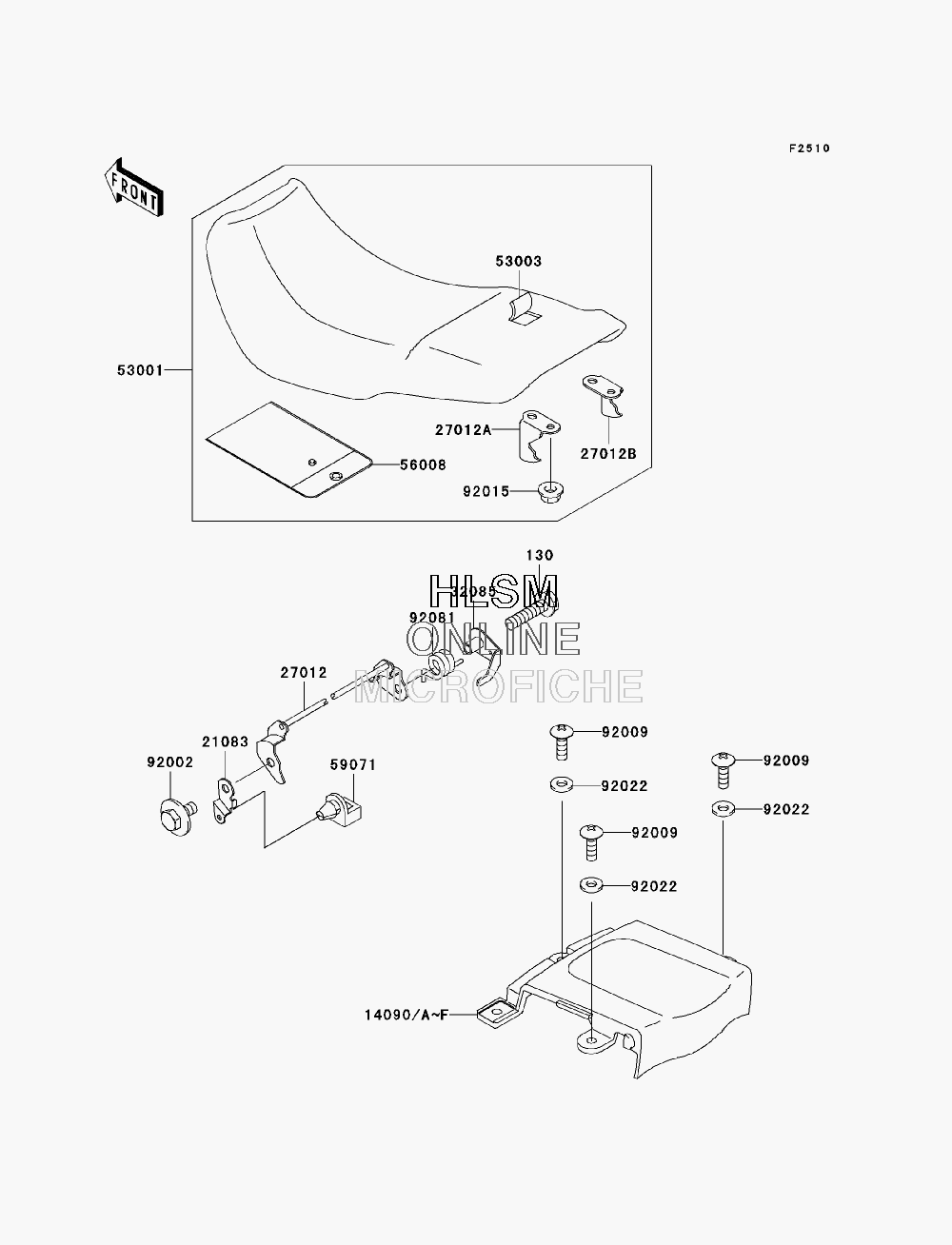

SEAT для Kawasaki NINJA 500R (EX500D9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 130
    130BB0625 BOLT-FLANGED, 6X25
    BOLT-FLANGED, 6X25
  • 14090A
    14090-1369-17K COVER, SEAT, M. D, BLACK (FOR 17K)
    COVER, SEAT, M. D, BLACK (FOR 17K)
  • 14090C
    14090-1369-723 COVER, SEAT, C. P. BLUE (FOR 723)
    COVER, SEAT, C. P. BLUE (FOR 723)
  • 21083
    21083-1063 ARM, SEAT LOCK
    ARM, SEAT LOCK
  • 27012
    27012-1363 HOOK, SEAT LOCK
    HOOK, SEAT LOCK
  • 27012A
    27012-1377 HOOK, SEAT, LEFT HAND
    HOOK, SEAT, LEFT HAND
  • 27012B
    27012-1378 HOOK, SEAT, RIGHT HAND
    HOOK, SEAT, RIGHT HAND
  • 32085
    32085-1270 STOPPER, SEAT LOCK SPRING
    STOPPER, SEAT LOCK SPRING
  • 53001
    53001-1726-MA SEAT-ASSY, DUAL, BLACK
    SEAT-ASSY, DUAL, BLACK
  • 53003
    53003-1284-MA LEATHER, SEAT, BLACK
    LEATHER, SEAT, BLACK
  • 56008
    56008-1066 BAG, HAND BOOK
    BAG, HAND BOOK
  • 59071
    59071-1103 JOINT
    JOINT
  • 92002
    92002-1884 BOLT, UPSET-WP, 6X12
    BOLT, UPSET-WP, 6X12
  • 92009
    92009-1654 SCREW, 5X16, BLACK
    SCREW, 5X16, BLACK
  • 92015
    92015-1078 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92022
    92022-1521 WASHER, NYLON, 5.3X11.5X1.5
    WASHER, NYLON, 5.3X11.5X1.5
  • 92081
    92081-1982 SPRING
    SPRING
