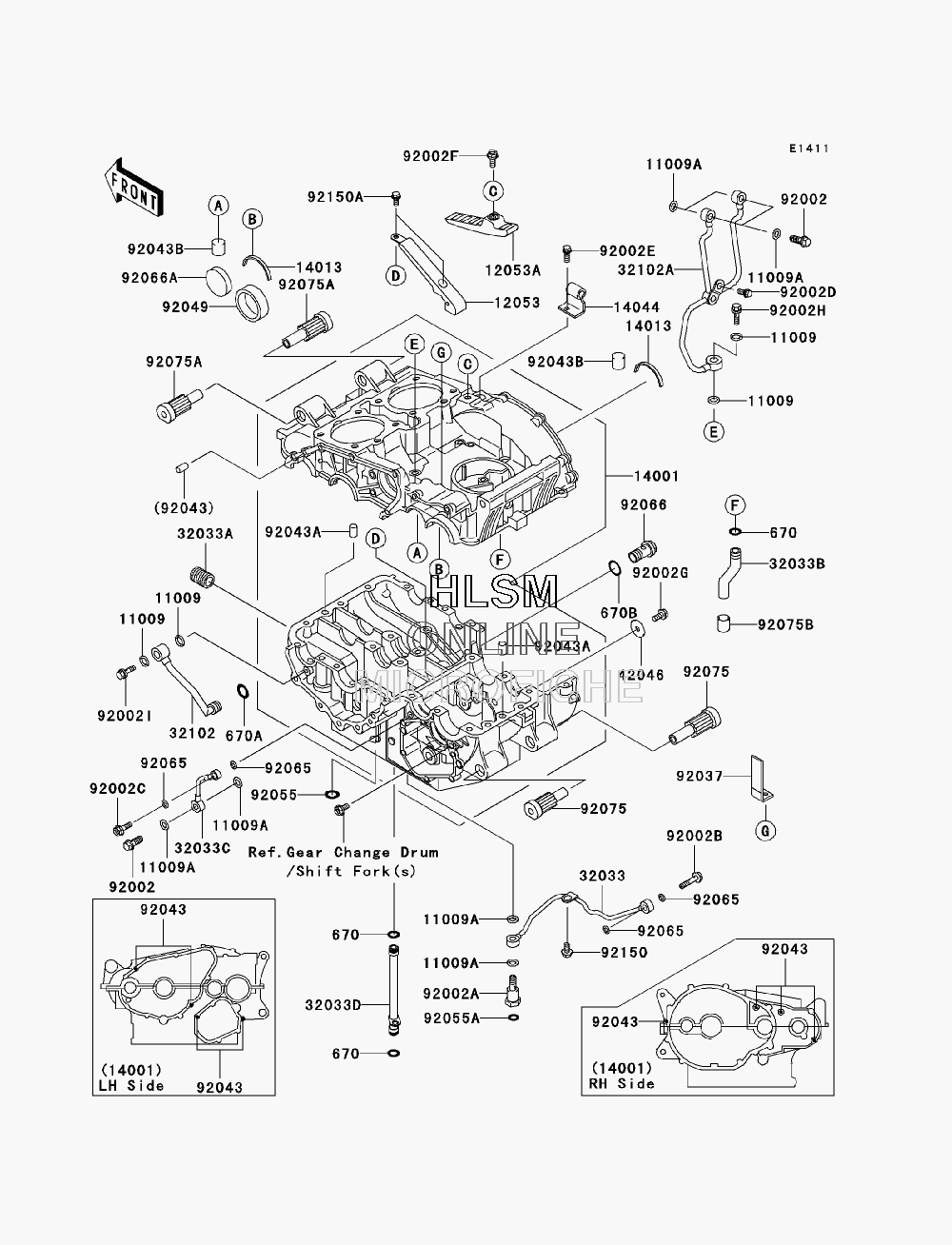

CRANKCASE для Kawasaki NINJA 500R (EX500D9F) - 2009 года выпуска`
-
№АртикулНазвание
-
1100911009-1105 GASKET, 10X14.5X1.5GASKET, 10X14.5X1.5
-
11009A11009-1344 GASKET, 8.2X14X1.0GASKET, 8.2X14X1.0
-
1205312053-1216 GUIDE-CHAIN, LWRGUIDE-CHAIN, LWR
-
12053A12053-1217 GUIDE-CHAIN, UPPGUIDE-CHAIN, UPP
-
1400114001-1090 SET-CRANKCASESET-CRANKCASE
-
1401314013-004 RING-POSITIONRING-POSITION
-
1404414044-1059 HOLDER-CABLEHOLDER-CABLE
-
3203332033-1530 PIPEPIPE
-
32033A32033-1535 PIPE, OIL FILTERPIPE, OIL FILTER
-
32033B32033-1538 PIPEPIPE
-
32033C32033-1539 PIPEPIPE
-
32033D32033-1574 PIPEPIPE
-
3210232102-1541 PIPEPIPE
-
32102A32102-1710 PIPEPIPE
-
4204642046-008 WASHER, 6.5X24X1.2WASHER, 6.5X24X1.2
-
9200292002-1429 BOLT, 8X20BOLT, 8X20
-
92002A92002-1467 BOLTBOLT
-
92002B92002-1471 BOLT, BANJO, 6X28BOLT, BANJO, 6X28
-
92002C92002-1473 BOLT, BANJO, 6X19BOLT, BANJO, 6X19
-
92002D92002-1569 BOLT, 6X12BOLT, 6X12
-
92002E92002-1570 BOLT, 6X16BOLT, 6X16
-
92002F92002-1571 BOLT, 6X16BOLT, 6X16
-
92002G92002-1656 BOLT, 6X14BOLT, 6X14
-
92002H92002-1809 BOLT, OIL, L=23BOLT, OIL, L=23
-
92002I92002-1941 BOLT, BANJO, 10X30BOLT, BANJO, 10X30
-
9203792037-1679 CLAMPCLAMP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
92043B92043-1690 PIN, 6X16PIN, 6X16
-
9204992049-1567 SEAL-OILSEAL-OIL
-
9205592055-048 RING-O, OD=18RING-O, OD=18
-
92055A92055-074 RING-O, OD=13RING-O, OD=13
-
9206592065-096 GASKETGASKET
-
9206692066-1205 PLUG, MAIN GALLERYPLUG, MAIN GALLERY
-
92066A92066-1208 PLUG, RCA 345.5PLUG, RCA 345.5
-
9207592075-1678 DAMPER, L=79.5DAMPER, L=79.5
-
92075A92075-1679 DAMPER, L=93DAMPER, L=93
-
92075B92075-1742 DAMPERDAMPER
-
9215092150-1826 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
92150A92150-1868 BOLT, 6X12BOLT, 6X12
-
670670B1510 O RING, 10MMO RING, 10MM
-
670A670B2010 O RING, 10MMO RING, 10MM
-
670B670B2021 O RING, 21MMO RING, 21MM
