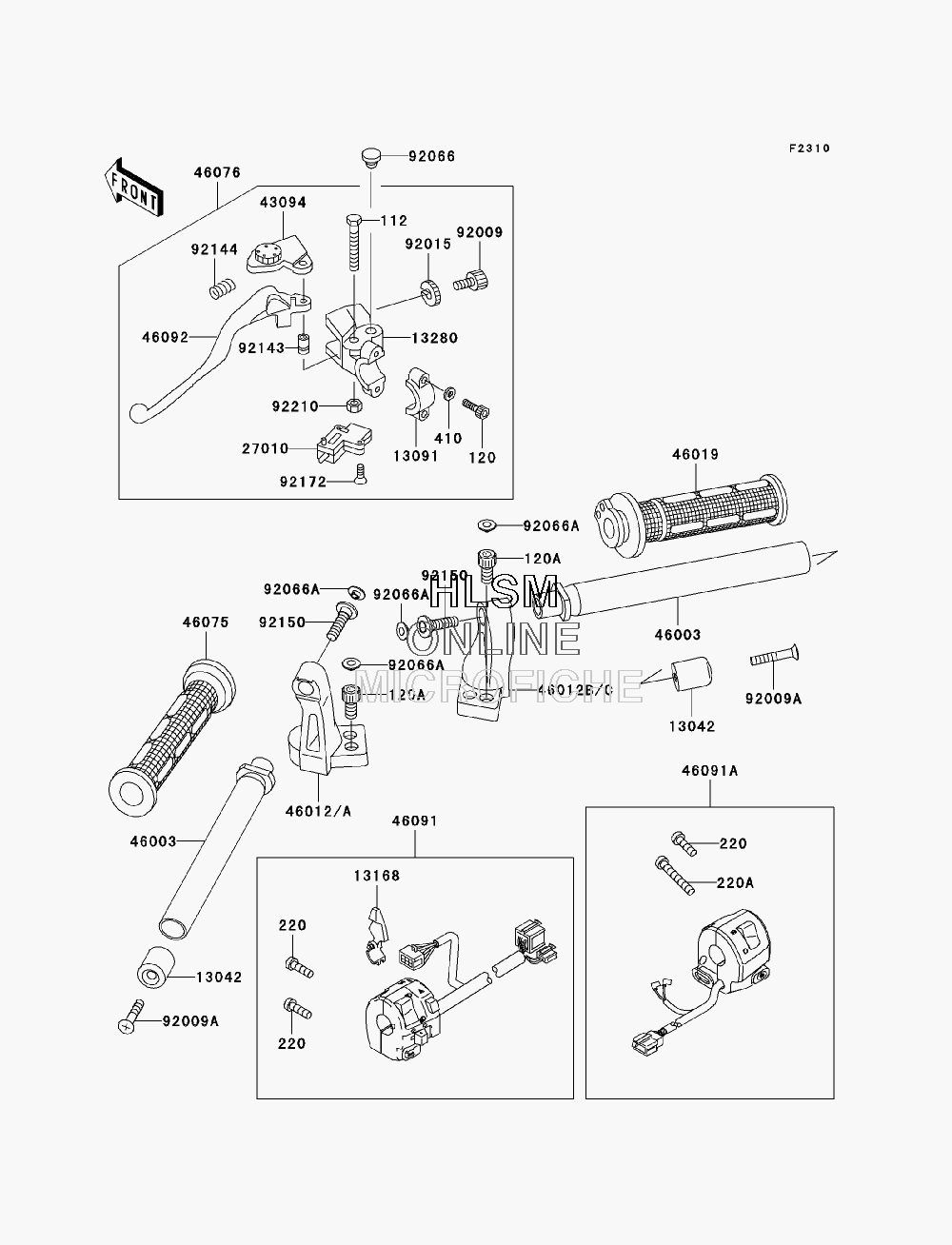

HANDLEBAR для Kawasaki NINJA 500R (EX500D9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 112
    112C0640 BOLT-UPSET, 6X40
    BOLT-UPSET, 6X40
  • 120
    120CB0620 BOLT-SOCKET, 6X20
    BOLT-SOCKET, 6X20
  • 120A
    120CB0816 BOLT-SOCKET, 8X16
    BOLT-SOCKET, 8X16
  • 220
    220AB0525 SCREW-PAN-CROS, 5X25
    SCREW-PAN-CROS, 5X25
  • 220A
    220AB0540 SCREW-PAN-CROSS, 5X40
    SCREW-PAN-CROSS, 5X40
  • 410
    410AB0600 WASHER-PLAIN-SMALL, 6MM
    WASHER-PLAIN-SMALL, 6MM
  • 13042
    13042-1069 WEIGHT, HANDLE
    WEIGHT, HANDLE
  • 13091
    13091-1624 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 13168
    13168-1516 LEVER, CHOKE
    LEVER, CHOKE
  • 13280
    13280-0248 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 27010
    27010-1094 SWITCH, CLUTCH, BLACK
    SWITCH, CLUTCH, BLACK
  • 43094
    43094-1053 ADJUSTER, CLUTCH LEVER
    ADJUSTER, CLUTCH LEVER
  • 46003
    46003-1390 HANDLE
    HANDLE
  • 46012A
    46012-1248-18R HOLDER-HANDLE, LEFT HAND, BLACK
    HOLDER-HANDLE, LEFT HAND, BLACK
  • 46012C
    46012-1249-18R HOLDER-HANDLE, RIGHT HAND, BLACK
    HOLDER-HANDLE, RIGHT HAND, BLACK
  • 46019
    46019-1077 GRIP-ASSY, THROTTLE
    GRIP-ASSY, THROTTLE
  • 46075
    46075-1088 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46076
    46076-0046 LEVER-ASSY-GRIP, CLUTCH
    LEVER-ASSY-GRIP, CLUTCH
  • 46091
    46091-1671 HOUSING-ASSY-CONTROL, LEFT HAND
    HOUSING-ASSY-CONTROL, LEFT HAND
  • 46091A
    46091-1672 HOUSING-ASSY-CONTROL, RIGHT HAND
    HOUSING-ASSY-CONTROL, RIGHT HAND
  • 46092
    46092-1161 LEVER-GRIP, CLUTCH
    LEVER-GRIP, CLUTCH
  • 92009
    92009-1134 SCREW, CABLE ADJUST, 8MM, BLACK
    SCREW, CABLE ADJUST, 8MM, BLACK
  • 92009A
    92009-1257 SCREW, 8X45
    SCREW, 8X45
  • 92015
    92015-1197 NUT, CABLE ADJUST LOCK, 8MM, BLK
    NUT, CABLE ADJUST LOCK, 8MM, BLK
  • 92066
    92066-1077 PLUG, 9.5X8, POLYETHYLENE
    PLUG, 9.5X8, POLYETHYLENE
  • 92066A
    92066-1216 PLUG
    PLUG
  • 92143
    92143-1379 COLLAR
    COLLAR
  • 92144
    92144-1467 SPRING
    SPRING
  • 92150
    92150-1425 BOLT, 8X30
    BOLT, 8X30
  • 92172
    92172-0183 SCREW, 3X16
    SCREW, 3X16
  • 92210
    92210-0006 NUT, LOCK, 6MM
    NUT, LOCK, 6MM
