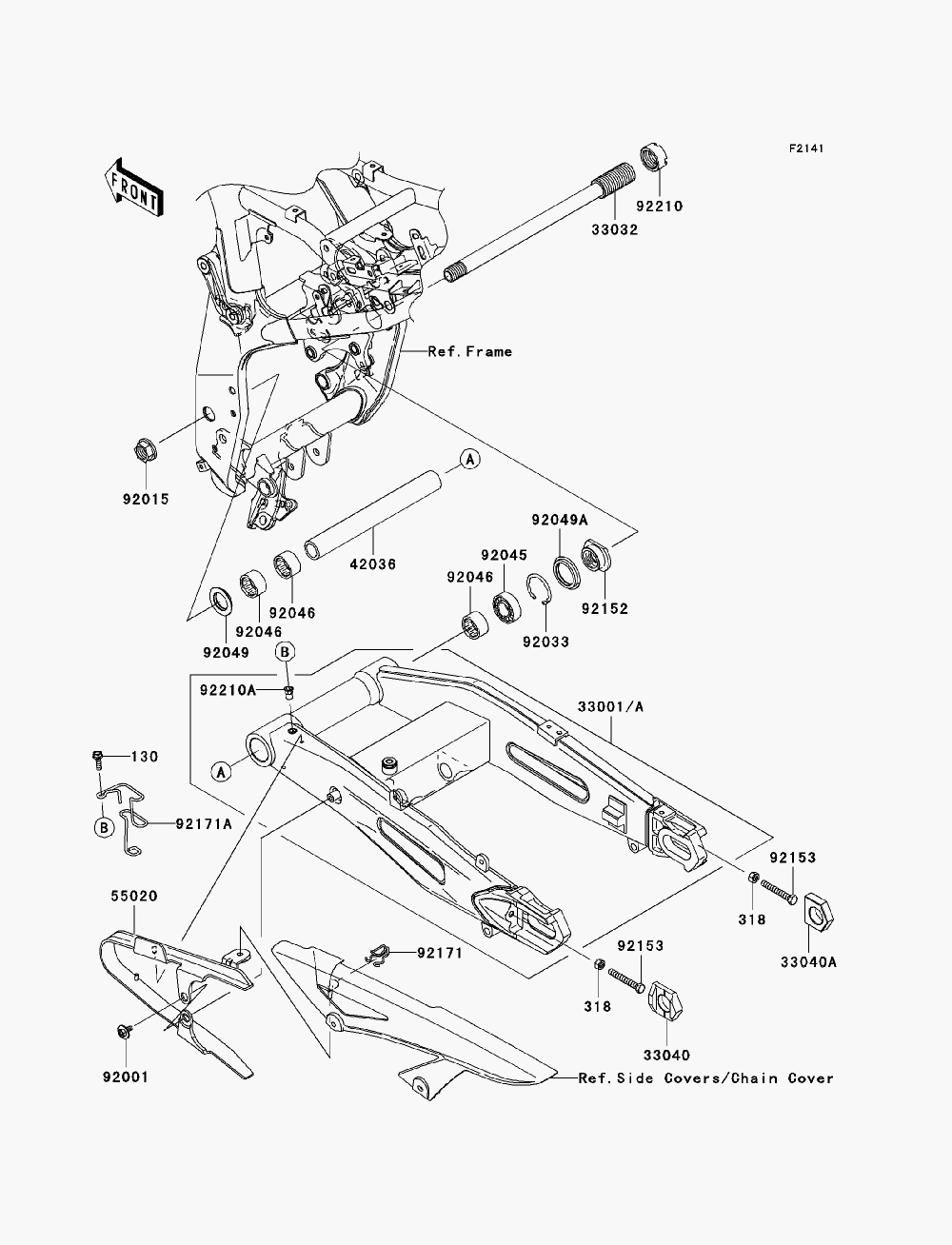

SUSPENSION - SWINGARM для Kawasaki Z1000 (ZR1000B8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 130
    130AA0620 BOLT-FLANGED, 6X20
    BOLT-FLANGED, 6X20
  • 318
    318BA0800 NUT-HEX-SMALL, 8MM
    NUT-HEX-SMALL, 8MM
  • 33001A
    33001-0129-18R ARM-COMP-SWING, BLACK
    ARM-COMP-SWING, BLACK
  • 33032
    33032-0005 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-0017 ADJUSTER-CHAIN, LEFT HAND
    ADJUSTER-CHAIN, LEFT HAND
  • 33040A
    33040-0018 ADJUSTER-CHAIN, RIGHT HAND
    ADJUSTER-CHAIN, RIGHT HAND
  • 42036
    42036-1264 SLEEVE, SWING ARM, L=237
    SLEEVE, SWING ARM, L=237
  • 55020
    55020-0330 GUARD, CHAIN
    GUARD, CHAIN
  • 92001
    92001-1771 BOLT, 6X12
    BOLT, 6X12
  • 92015
    92015-1724 NUT, FLANGED, 20MM
    NUT, FLANGED, 20MM
  • 92033
    92033-1041 RING-SNAP, 42MM
    RING-SNAP, 42MM
  • 92045
    92045-0017 BEARING-BALL, 6004UL11
    BEARING-BALL, 6004UL11
  • 92046
    92046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17
    BEARING-NEEDLE, 7E-HVS 28X34X17
  • 92049
    92049-1181 SEAL-OIL
    SEAL-OIL
  • 92049A
    92049-1380 SEAL-OIL, MHA 35 42 5.7F
    SEAL-OIL, MHA 35 42 5.7F
  • 92152
    92152-0136 COLLAR, SWING ARM PIVOT, RIGHT HAND
    COLLAR, SWING ARM PIVOT, RIGHT HAND
  • 92153
    92153-1407 BOLT, 8X55
    BOLT, 8X55
  • 92171
    92171-0907 CLAMP
    CLAMP
  • 92171A
    92171-0967 CLAMP, DRAIN HOSE
    CLAMP, DRAIN HOSE
  • 92210
    92210-1347 NUT, 28X1.0
    NUT, 28X1.0
  • 92210A
    92210-1397 NUT, POP, 6MM, L=15
    NUT, POP, 6MM, L=15
