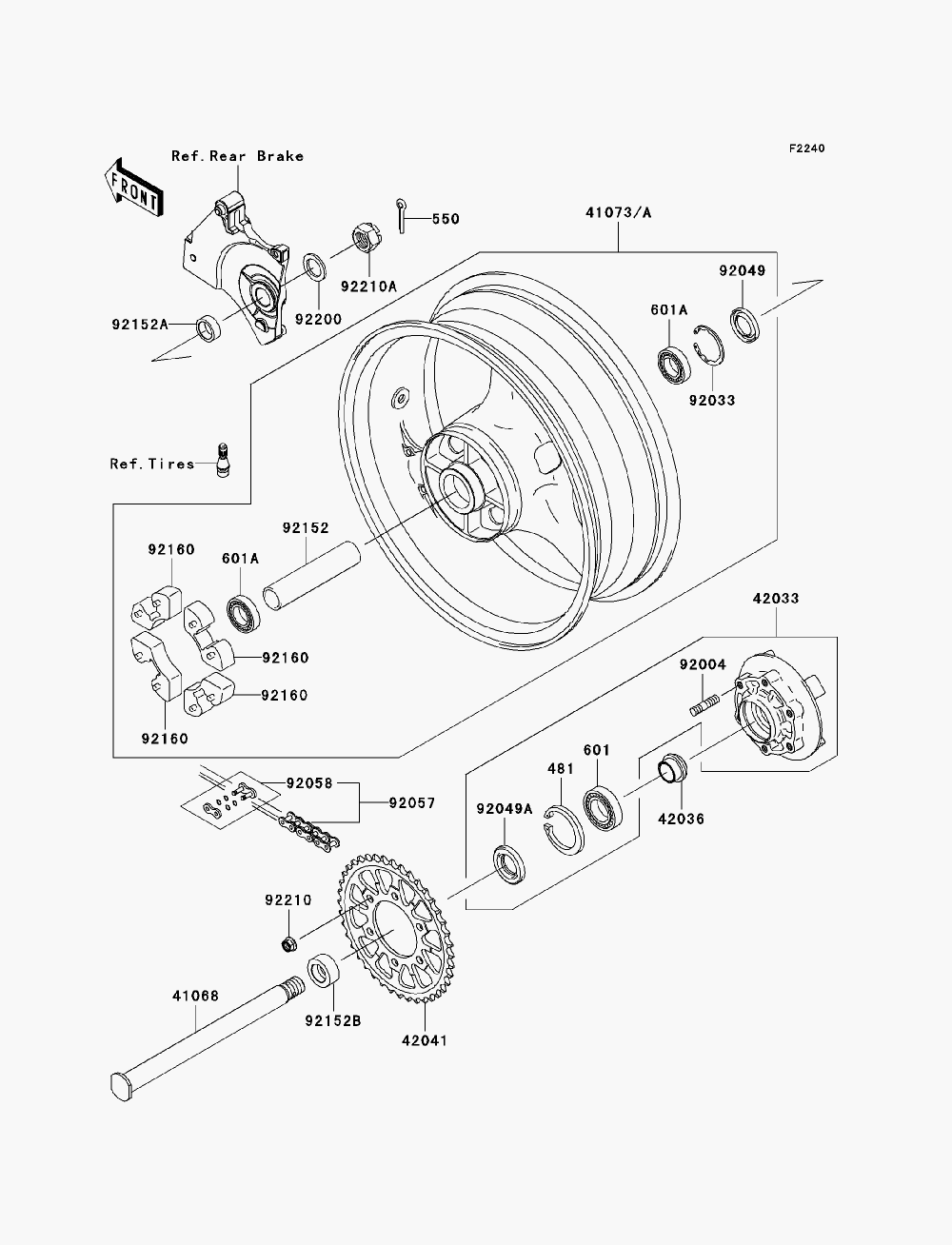

WHEEL - REAR W/ CHAIN для Kawasaki Z1000 (ZR1000B8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 481
    481J5500 CIRCLIP
    CIRCLIP
  • 550
    550D4040 PIN-COTTER, 4.0X40
    PIN-COTTER, 4.0X40
  • 601
    601B6006G BEARING-BALL, #6006G
    BEARING-BALL, #6006G
  • 601A
    601B6205UU BEARING-BALL
    BEARING-BALL
  • 41068
    41068-0035 AXLE, REAR
    AXLE, REAR
  • 41073
    41073-0090-17E WHEEL-ASSY, REAR, M.C.ORANGE (USA ONLY) (FOR 667)
    WHEEL-ASSY, REAR, M.C.ORANGE (USA ONLY) (FOR 667)
  • 41073A
    41073-0090-18 WHEEL-ASSY, REAR, BLACK (CANADA ONLY) (FOR 777)
    WHEEL-ASSY, REAR, BLACK (CANADA ONLY) (FOR 777)
  • 42033
    42033-1213 COUPLING-ASSY, REAR HUB
    COUPLING-ASSY, REAR HUB
  • 42036
    42036-1279 SLEEVE, REAR HUB, L=22
    SLEEVE, REAR HUB, L=22
  • 42041
    42041-0043 SPROCKET-HUB, 40T
    SPROCKET-HUB, 40T
  • 92004
    92004-0028 STUD, 10X19
    STUD, 10X19
  • 92033
    92033-1043 RING-SNAP, 52MM
    RING-SNAP, 52MM
  • 92049
    92049-1375 SEAL-OIL, REAR HUB
    SEAL-OIL, REAR HUB
  • 92049A
    92049-1376 SEAL-OIL, PJN 40 55 8
    SEAL-OIL, PJN 40 55 8
  • 92057
    92057-0132 CHAIN, DRIVE, EK525UVXL3X110L
    CHAIN, DRIVE, EK525UVXL3X110L
  • 92058
    92058-0010 JOINT-CHAIN, DRIVE
    JOINT-CHAIN, DRIVE
  • 92152
    92152-0471 COLLAR, REAR HUB, L=145
    COLLAR, REAR HUB, L=145
  • 92152A
    92152-0558 COLLAR, REAR AXLE, RIGHT HAND, L=11.5
    COLLAR, REAR AXLE, RIGHT HAND, L=11.5
  • 92152B
    92152-1245 COLLAR, REAR AXLE, LEFT HAND, L=17
    COLLAR, REAR AXLE, LEFT HAND, L=17
  • 92160
    92160-1485 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
  • 92200
    92200-0278 WASHER, 25.5X38X3.2
    WASHER, 25.5X38X3.2
  • 92210
    92210-0276 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92210A
    92210-0280 NUT, CASTLE, 24MM
    NUT, CASTLE, 24MM
