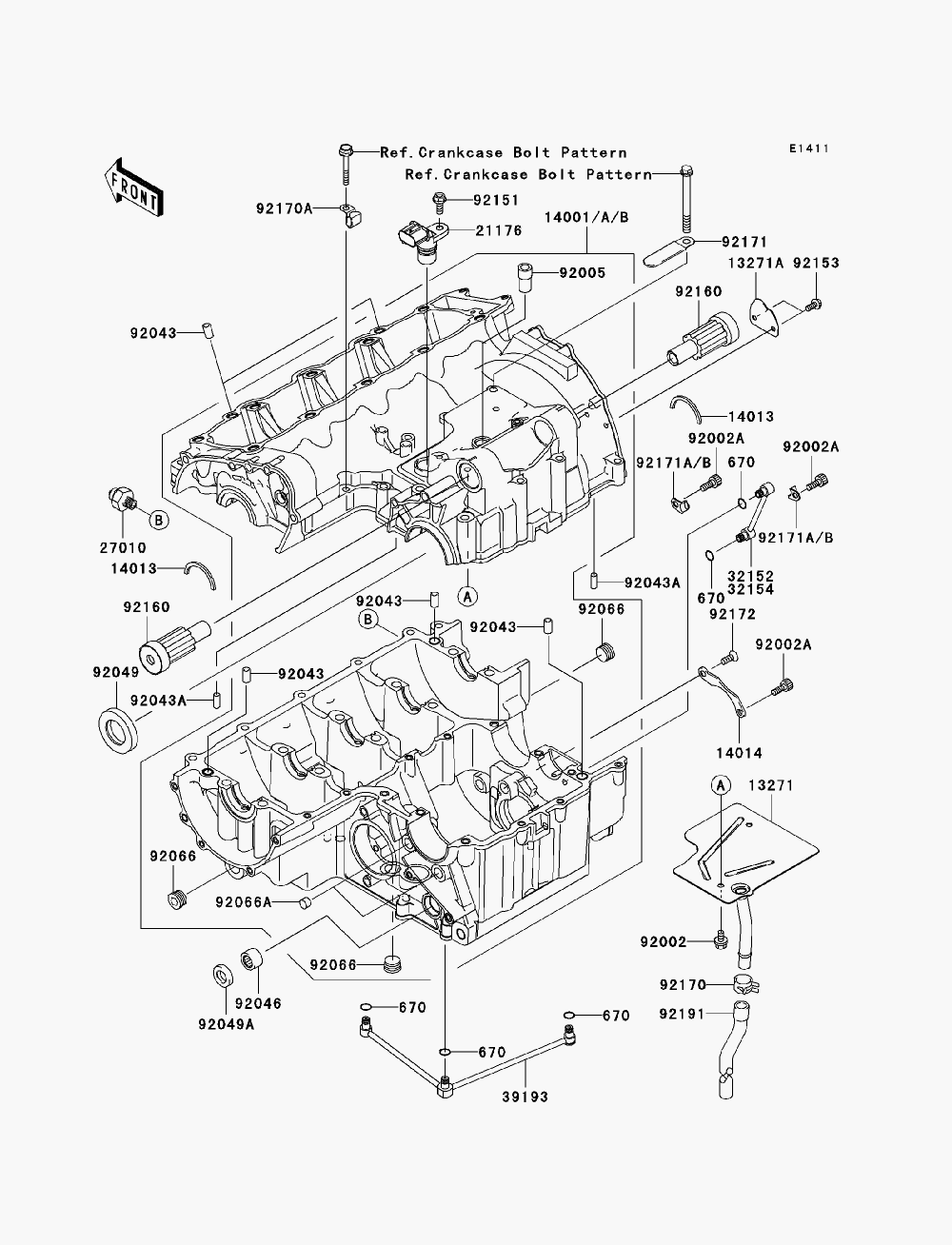

CRANKCASE для Kawasaki Z1000 (ZR1000B8F) - 2008 года выпуска
-
№АртикулНазвание
-
670670D1505 O RINGO RING
-
1327113271-0747 PLATE, BREATHERPLATE, BREATHER
-
13271A13271-0748 PLATE, BREATHER SIDEPLATE, BREATHER SIDE
-
14001B14001-0132 SET-CRANKCASESET-CRANKCASE
-
1401314013-1051 RING-POSITIONRING-POSITION
-
1401414014-0027 PLATE-POSITIONPLATE-POSITION
-
2117621176-0054 SENSOR, SPEEDSENSOR, SPEED
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3215232152-1545 PIPE, RIGHT HAND, L=76.8 (ZRT00AE039778 AND ABOVE)PIPE, RIGHT HAND, L=76.8 (ZRT00AE039778 AND ABOVE)
-
3919339193-0014 PIPE-OILPIPE-OIL
-
9200292002-1449 BOLT, 6X10BOLT, 6X10
-
92002A92002-1778 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9200592005-1238 FITTING, BREATHERFITTING, BREATHER
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
92043A92043-1690 PIN, 6X16PIN, 6X16
-
9204692046-037 BEARING-NEEDLE, 7E-HK1412BEARING-NEEDLE, 7E-HK1412
-
9204992049-1474 SEAL-OIL, TC32578SEAL-OIL, TC32578
-
92049A92049-1520 SEAL-OIL, TC14245SEAL-OIL, TC14245
-
9206692066-0003 PLUG, PT3/8X10PLUG, PT3/8X10
-
92066A92066-1110 PLUGPLUG
-
9215192151-1774 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9215392153-0753 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
9216092160-1868 DAMPERDAMPER
-
9217092170-1118 CLAMPCLAMP
-
92170A92170-1577 CLAMPCLAMP
-
9217192171-0092 CLAMPCLAMP
-
92171A92171-0302 CLAMP, OIL PIPE (ZRT00AE039778 AND ABOVE)CLAMP, OIL PIPE (ZRT00AE039778 AND ABOVE)
-
9217292172-0090 SCREW, 6X16SCREW, 6X16
-
9219192191-1776 TUBE, BREATHERTUBE, BREATHER
