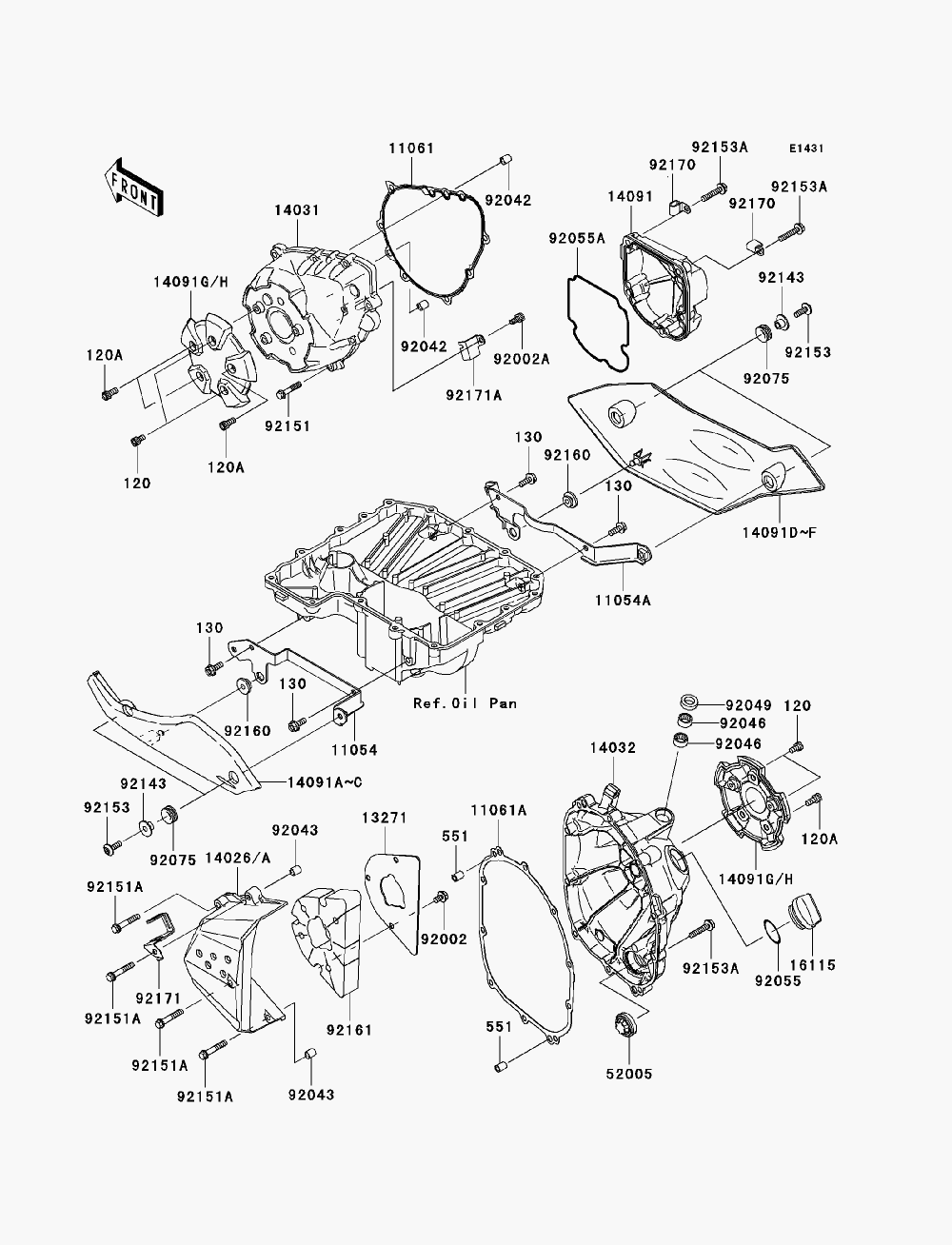

ENGINE COVER для Kawasaki Z1000 (ZR1000B8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 11054
    11054-0503 BRACKET, UNDER COVER, LEFT HAND
    BRACKET, UNDER COVER, LEFT HAND
  • 11054A
    11054-0504 BRACKET, UNDER COVER, RIGHT HAND
    BRACKET, UNDER COVER, RIGHT HAND
  • 11061
    11061-0294 GASKET, GENERATOR COVER
    GASKET, GENERATOR COVER
  • 11061A
    11061-1166 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 13271
    13271-1997 PLATE
    PLATE
  • 14026A
    14026-0060 COVER-CHAIN
    COVER-CHAIN
  • 14031
    14031-0059 COVER-GENERATOR
    COVER-GENERATOR
  • 14032
    14032-0104 COVER-CLUTCH
    COVER-CLUTCH
  • 14091
    14091-0570 COVER, PULSER
    COVER, PULSER
  • 14091B
    14091-0571-18T COVER, UNDER, LEFT HAND, BLACK (USA ONLY) (FOR 667)
    COVER, UNDER, LEFT HAND, BLACK (USA ONLY) (FOR 667)
  • 14091C
    14091-0571-777 COVER, UNDER, LEFT HAND, L.GREEN (CANADA ONLY) (FOR 777)
    COVER, UNDER, LEFT HAND, L.GREEN (CANADA ONLY) (FOR 777)
  • 14091E
    14091-0572-18T COVER, UNDER, RIGHT HAND, BLACK (USA ONLY) (FOR 667)
    COVER, UNDER, RIGHT HAND, BLACK (USA ONLY) (FOR 667)
  • 14091F
    14091-0572-777 COVER, UNDER, RIGHT HAND, L.GREEN (CANADA ONLY) (FOR 777)
    COVER, UNDER, RIGHT HAND, L.GREEN (CANADA ONLY) (FOR 777)
  • 14091G
    14091-0575-10T COVER, CAP, F.P.SILVER (CANADA ONLY) (FOR 777)
    COVER, CAP, F.P.SILVER (CANADA ONLY) (FOR 777)
  • 14091H
    14091-0575-11E COVER, CAP, F.S.BLACK (USA ONLY) (FOR 667)
    COVER, CAP, F.S.BLACK (USA ONLY) (FOR 667)
  • 16115
    16115-1009 CAP-OIL FILLER
    CAP-OIL FILLER
  • 52005
    52005-1120 GAUGE
    GAUGE
  • 92002
    92002-1449 BOLT, 6X10
    BOLT, 6X10
  • 92002A
    92002-1796 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92042
    92042-007 PIN, DOWEL, 6.3X8X14
    PIN, DOWEL, 6.3X8X14
  • 92043
    92043-1263 PIN, 6.2X8X14
    PIN, 6.2X8X14
  • 92046
    92046-1010 BEARING-NEEDLE, HK1210
    BEARING-NEEDLE, HK1210
  • 92049
    92049-1475 SEAL-OIL, CLUTCH RELEASE
    SEAL-OIL, CLUTCH RELEASE
  • 92055
    92055-049 RING-O, 31.7X2.4
    RING-O, 31.7X2.4
  • 92055A
    92055-1570 RING-O, PULSE COVER
    RING-O, PULSE COVER
  • 92075
    92075-1634 DAMPER
    DAMPER
  • 92143
    92143-1962 COLLAR
    COLLAR
  • 92151
    92151-1134 BOLT, 6X30
    BOLT, 6X30
  • 92151A
    92151-1135 BOLT, 6X35
    BOLT, 6X35
  • 92153
    92153-0816 BOLT, 6X18
    BOLT, 6X18
  • 92153A
    92153-1574 BOLT-FLANGED, 6X30
    BOLT-FLANGED, 6X30
  • 92160
    92160-1613 DAMPER
    DAMPER
  • 120
    120CC0610 BOLT-SOCKET, 6X10
    BOLT-SOCKET, 6X10
  • 120A
    120CC0614 BOLT-SOCKET, 6X14
    BOLT-SOCKET, 6X14
  • 130
    130BB0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 551
    551A0814 PIN-DOWEL, 8X14
    PIN-DOWEL, 8X14
  • 92161
    92161-0492 DAMPER
    DAMPER
  • 92170
    92170-1577 CLAMP
    CLAMP
  • 92171
    92171-0067 CLAMP
    CLAMP
  • 92171A
    92171-0708 CLAMP
    CLAMP
