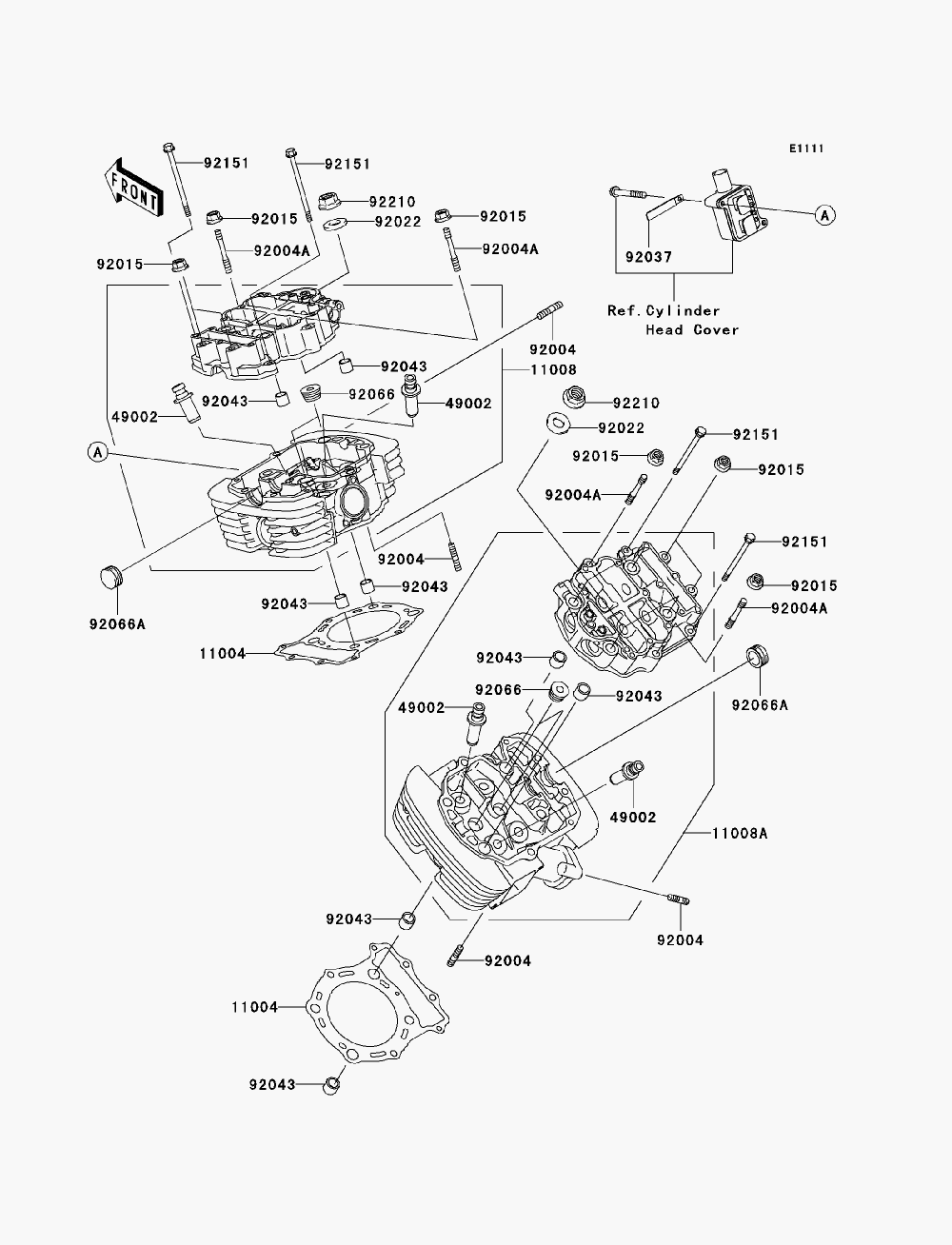

CYLINDER HEAD для Kawasaki VULCAN 1500 CLASSIC (VN1500N8F) - 2008 года выпуска`
-
№АртикулНазвание
-
1100411004-1334 GASKET-HEADGASKET-HEAD
-
1100811008-1360 HEAD-COMP-CYLINDER, FRONTHEAD-COMP-CYLINDER, FRONT
-
11008A11008-1361 HEAD-COMP-CYLINDER, REARHEAD-COMP-CYLINDER, REAR
-
4900249002-1088 GUIDE-VALVEGUIDE-VALVE
-
9200492004-1214 STUD, 8X25STUD, 8X25
-
92004A92004-1224 STUD, 8X46.5STUD, 8X46.5
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-1862 WASHER, 12.3X25X3.2WASHER, 12.3X25X3.2
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9204392043-1608 PIN, 13X16X14PIN, 13X16X14
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
92066A92066-0031 PLUGPLUG
-
9215192151-1058 BOLT, 6X115BOLT, 6X115
-
9221092210-0115 NUT, 12MMNUT, 12MM
