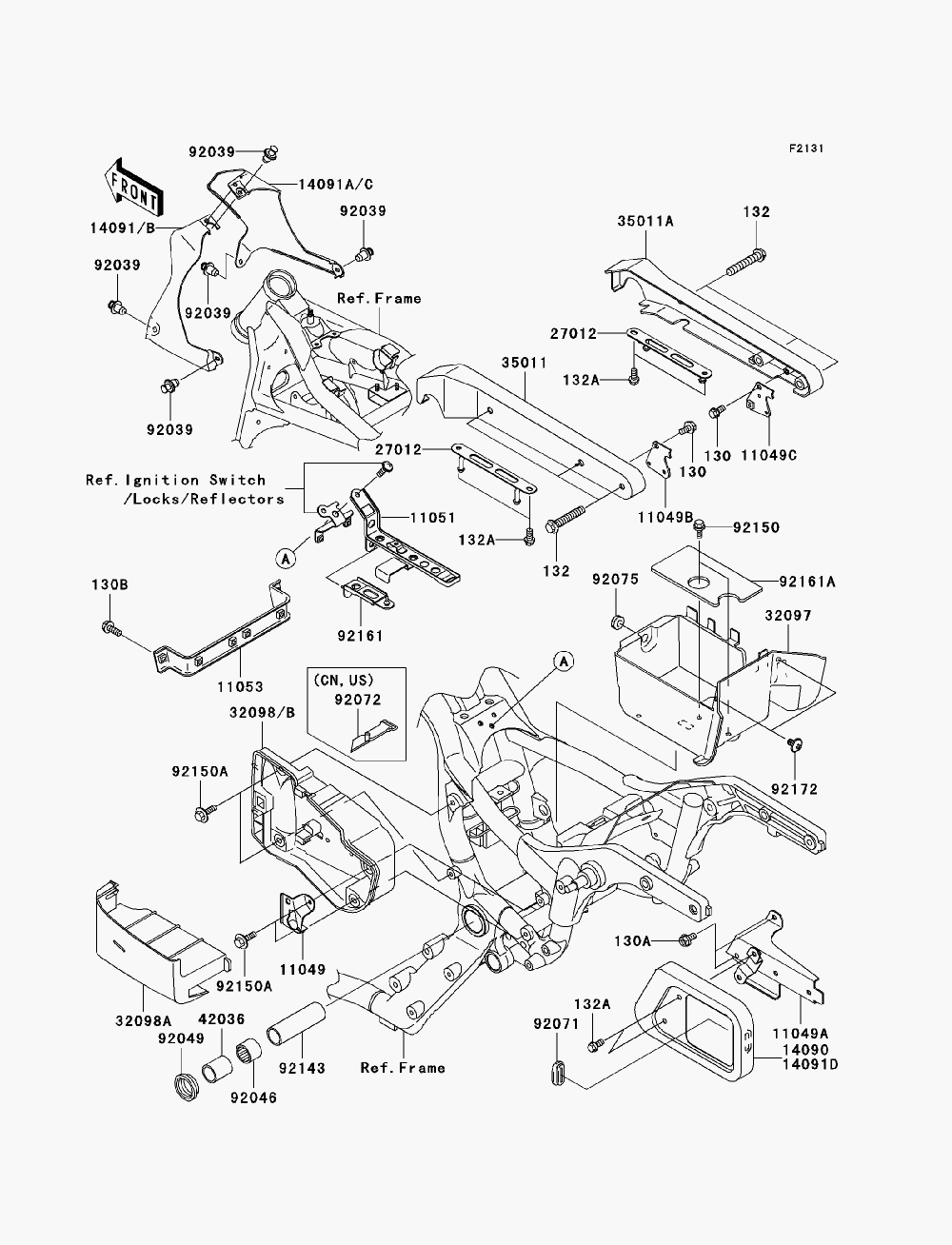

FRAME FITTINGS для Kawasaki VULCAN 1500 CLASSIC (VN1500N8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130H0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130J0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130B130J0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
132132E0845 BOLT-FLANGED-SMALL, 8X45BOLT-FLANGED-SMALL, 8X45
-
132A132J0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1104911049-1600 BRACKET, LOCKBRACKET, LOCK
-
11049A11049-1607 BRACKET, REGULATORBRACKET, REGULATOR
-
11049B11049-1624 BRACKET, HELMET LOCK, LEFT HANDBRACKET, HELMET LOCK, LEFT HAND
-
11049C11049-1625 BRACKET, HELMET LOCK, RIGHT HANDBRACKET, HELMET LOCK, RIGHT HAND
-
1105111051-1798 BRACKET, BATTERY BANDBRACKET, BATTERY BAND
-
1105311053-0434 BRACKET, REGULATORBRACKET, REGULATOR
-
1409114091-0849 COVER, HEAD PIPE, LEFT HANDCOVER, HEAD PIPE, LEFT HAND
-
14091A14091-0850 COVER, HEAD PIPE, RIGHT HANDCOVER, HEAD PIPE, RIGHT HAND
-
14091D14091-0851 COVER, REGULATORCOVER, REGULATOR
-
2701227012-1524 HOOK, BUNGEE CORDHOOK, BUNGEE CORD
-
3209732097-1175 CASE-BATTERYCASE-BATTERY
-
3209832098-1125 CASE-TOOL (EXCEPT CALIF.)CASE-TOOL (EXCEPT CALIF.)
-
32098A32098-1126 CASE-TOOL, COVERCASE-TOOL, COVER
-
32098B32098-1127 CASE-TOOL (CALIF. ONLY)CASE-TOOL (CALIF. ONLY)
-
3501135011-1868 STAY, REAR FENDER, LEFT HANDSTAY, REAR FENDER, LEFT HAND
-
35011A35011-1869 STAY, REAR FENDER, RIGHT HANDSTAY, REAR FENDER, RIGHT HAND
-
4203642036-1330 SLEEVE, L=45SLEEVE, L=45
-
9203992039-1227 RIVETRIVET
-
9204692046-1202 BEARING-NEEDLE, BM2824BEARING-NEEDLE, BM2824
-
9204992049-1181 SEAL-OILSEAL-OIL
-
9207192071-0013 GROMMETGROMMET
-
9207292072-1331 BAND, L=470 (EXCEPT CALIF.)BAND, L=470 (EXCEPT CALIF.)
-
9207592075-1067 DAMPERDAMPER
-
9214392143-1878 COLLAR, 20.2X27X90COLLAR, 20.2X27X90
-
9215092150-1133 BOLT, 6X14BOLT, 6X14
-
92150A92150-1198 BOLT, 6X16BOLT, 6X16
-
9216192161-1096 DAMPER, BATTERY BANDDAMPER, BATTERY BAND
-
92161A92161-1097 DAMPER, BATTERYDAMPER, BATTERY
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
