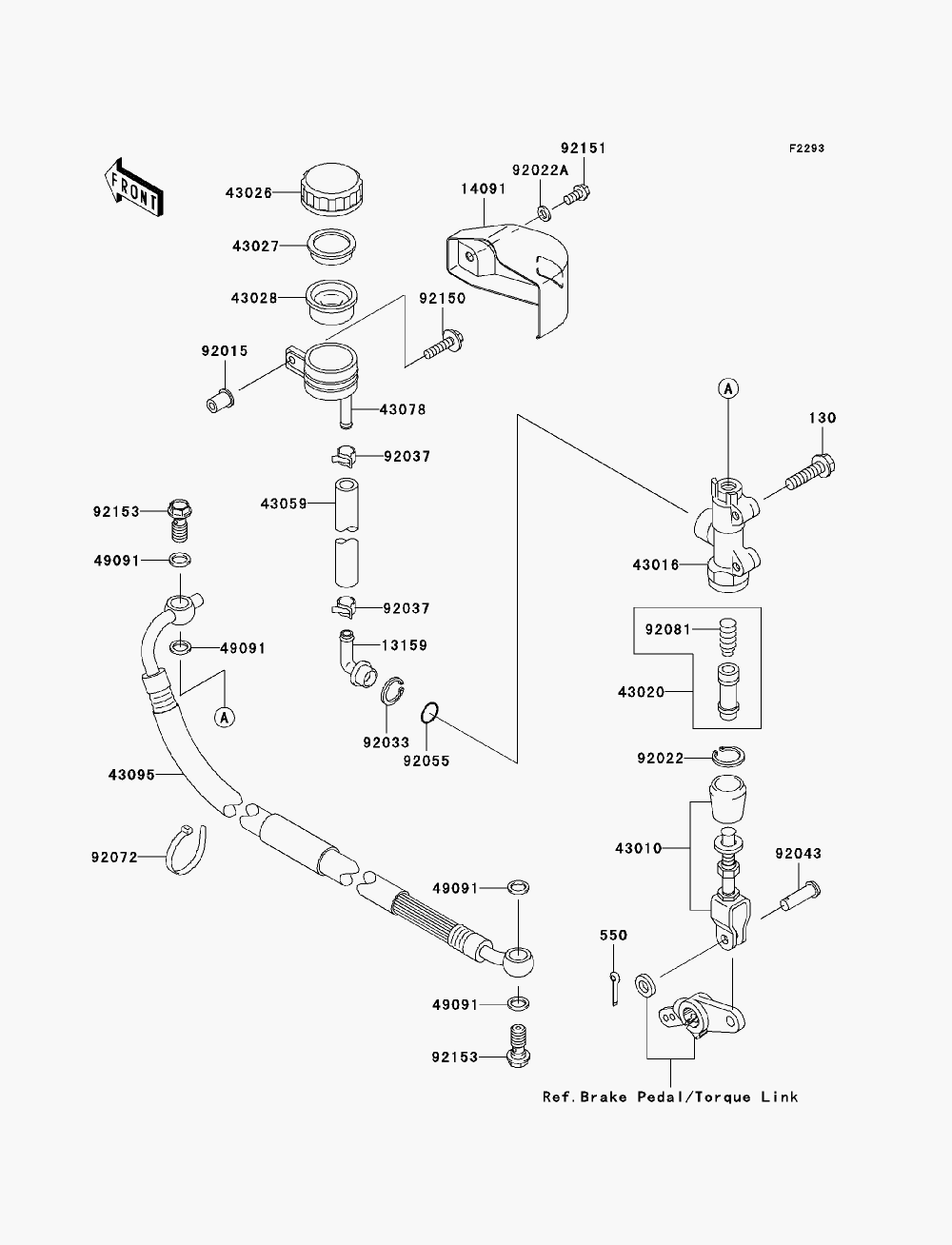

BRAKE - MASTER CYLINDER - REAR для Kawasaki VULCAN 1500 CLASSIC (VN1500N8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130J0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
1409114091-0412 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
4301043010-1055 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301643016-1122 CYLINDER-MASTER, REARCYLINDER-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4305943059-1318 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
4307843078-1178 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-1191 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9201592015-1700 NUTNUT
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
92022A92022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9203392033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9205592055-1251 RING-O, MASTER CYLINDERRING-O, MASTER CYLINDER
-
9207292072-1197 BAND, L=365BAND, L=365
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215092150-1829 BOLT, 6X25BOLT, 6X25
-
9215192151-1401 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
