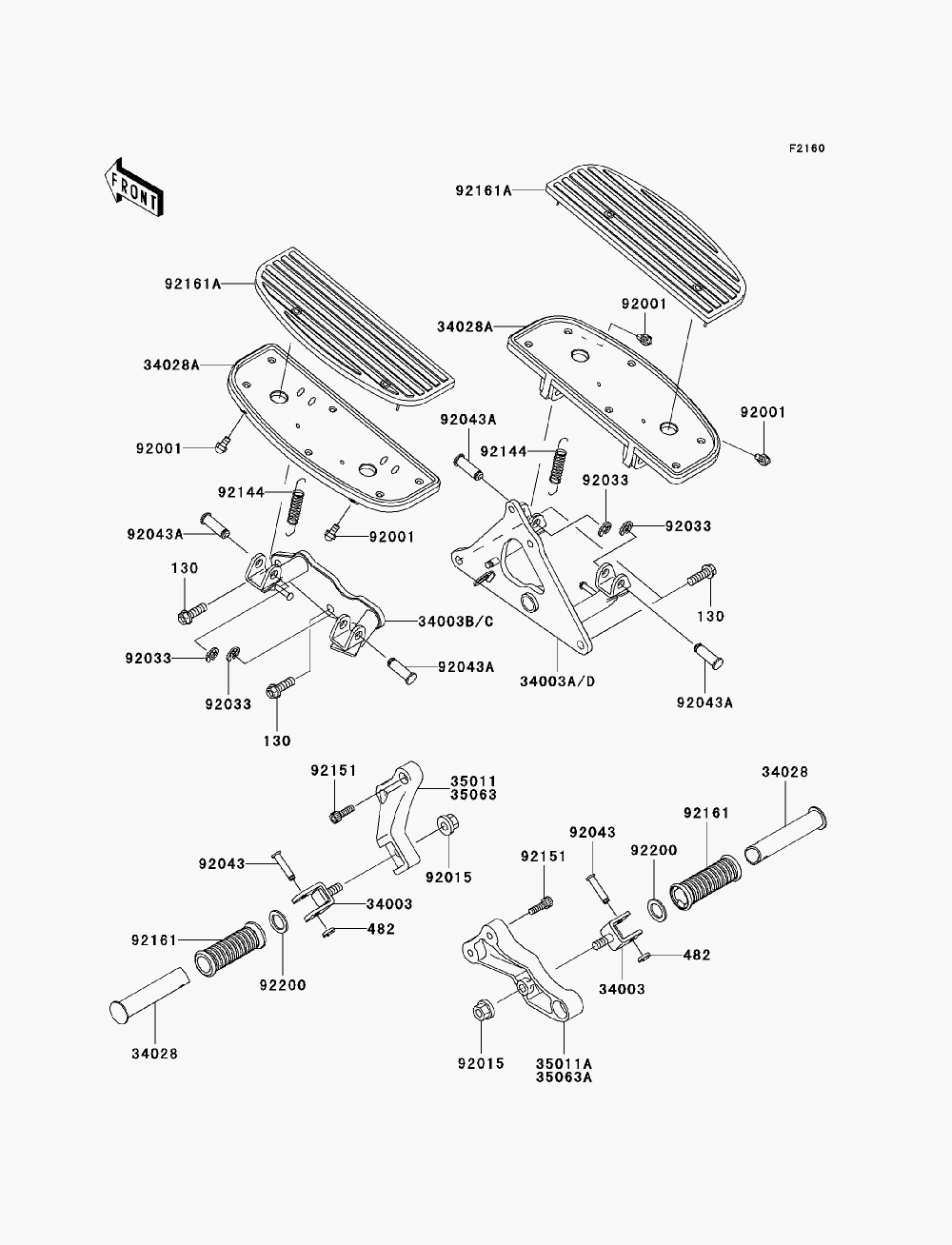

FOOTRESTS для Kawasaki VULCAN 1500 CLASSIC (VN1500N8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 130
    130J1030 BOLT-FLANGED, 10X30
    BOLT-FLANGED, 10X30
  • 482
    482L7000 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 34003
    34003-0015 HOLDER-STEP, REAR
    HOLDER-STEP, REAR
  • 34003A
    34003-0059 HOLDER-STEP, FRONT, RIGHT HAND
    HOLDER-STEP, FRONT, RIGHT HAND
  • 34003B
    34003-0060 HOLDER-STEP, FRONT, LEFT HAND
    HOLDER-STEP, FRONT, LEFT HAND
  • 34028
    34028-0017 STEP, REAR
    STEP, REAR
  • 34028A
    34028-1497 STEP, FRONT
    STEP, FRONT
  • 35063
    35063-0245-18R STAY, REAR STEP, LEFT HAND, BLACK
    STAY, REAR STEP, LEFT HAND, BLACK
  • 35063A
    35063-0246-18R STAY, REAR STEP, RIGHT HAND, BLACK
    STAY, REAR STEP, RIGHT HAND, BLACK
  • 92001
    92001-1905 BOLT, BANK SENSOR
    BOLT, BANK SENSOR
  • 92015
    92015-1428 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92033
    92033-1166 RING-SNAP, 10MM
    RING-SNAP, 10MM
  • 92043
    92043-1339 PIN, 8X36.5
    PIN, 8X36.5
  • 92043A
    92043-1358 PIN, 12X37
    PIN, 12X37
  • 92144
    92144-1266 SPRING
    SPRING
  • 92151
    92151-1525 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
  • 92161
    92161-0232 DAMPER, STEP
    DAMPER, STEP
  • 92161A
    92161-1154 DAMPER, FRONT STEP
    DAMPER, FRONT STEP
  • 92200
    92200-1482 WASHER, 22.5X33X2.3
    WASHER, 22.5X33X2.3
