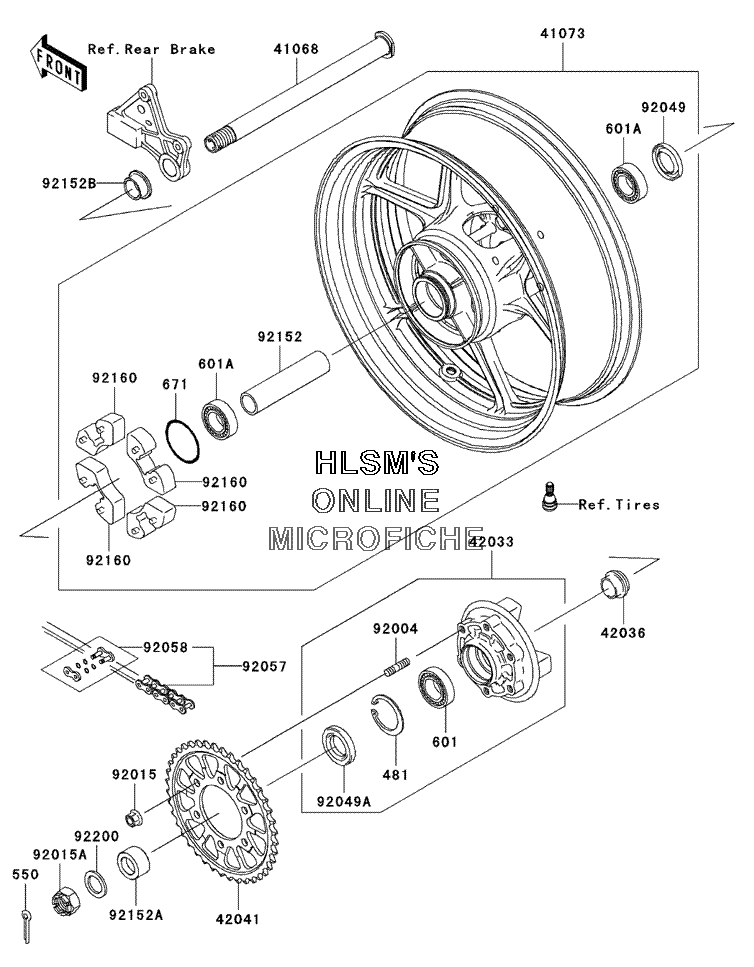

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-6RR - 2006 года выпуска

  • №
    Артикул
    Название
  • 481
    481J5500 CIRCLIP
    CIRCLIP
  • 550
    550D4040 PIN-COTTER, 4.0X40
    PIN-COTTER, 4.0X40
  • 601
    601B6006G BEARING-BALL, #6006G
    BEARING-BALL, #6006G
  • 601A
    601B6205UU BEARING-BALL
    BEARING-BALL
  • 671
    671B2560 O RING, 60MM
    O RING, 60MM
  • 41068
    41068-0035 AXLE, REAR
    AXLE, REAR
  • 41073
    41073-0040-2A WHEEL-ASSY, REAR, GRAYSTONE
    WHEEL-ASSY, REAR, GRAYSTONE
  • 42033
    42033-1213 COUPLING-ASSY, REAR HUB
    COUPLING-ASSY, REAR HUB
  • 42036
    42036-1279 SLEEVE, REAR HUB, L=22
    SLEEVE, REAR HUB, L=22
  • 42041
    42041-0017 SPROCKET-HUB (43 TEETH)
    SPROCKET-HUB (43 TEETH)
  • 92004
    92004-1275 STUD, 10X19
    STUD, 10X19
  • 92015
    92015-1335 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92015A
    92015-1844 NUT, CASTLE, 24MM
    NUT, CASTLE, 24MM
  • 92049
    92049-1375 SEAL-OIL, RR HUB
    SEAL-OIL, RR HUB
  • 92049A
    92049-1376 SEAL-OIL, PJN 40 55 8
    SEAL-OIL, PJN 40 55 8
  • 92057
    92057-0089 CHAIN, DRIVE, EK520MVXL1X110L
    CHAIN, DRIVE, EK520MVXL1X110L
  • 92058
    92058-0007 JOINT-CHAIN, DRIVE
    JOINT-CHAIN, DRIVE
  • 92152
    92152-0214 COLLAR, REAR HUB, L=137
    COLLAR, REAR HUB, L=137
  • 92152A
    92152-0244 COLLAR, REAR AXLE (LEFT), L=21.5
    COLLAR, REAR AXLE (LEFT), L=21.5
  • 92152B
    92152-0245 COLLAR, REAR AXLE (RIGHT), L=18
    COLLAR, REAR AXLE (RIGHT), L=18
  • 92160
    92160-1485 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
  • 92200
    92200-1479 WASHER, 25.5X38X3.2
    WASHER, 25.5X38X3.2
