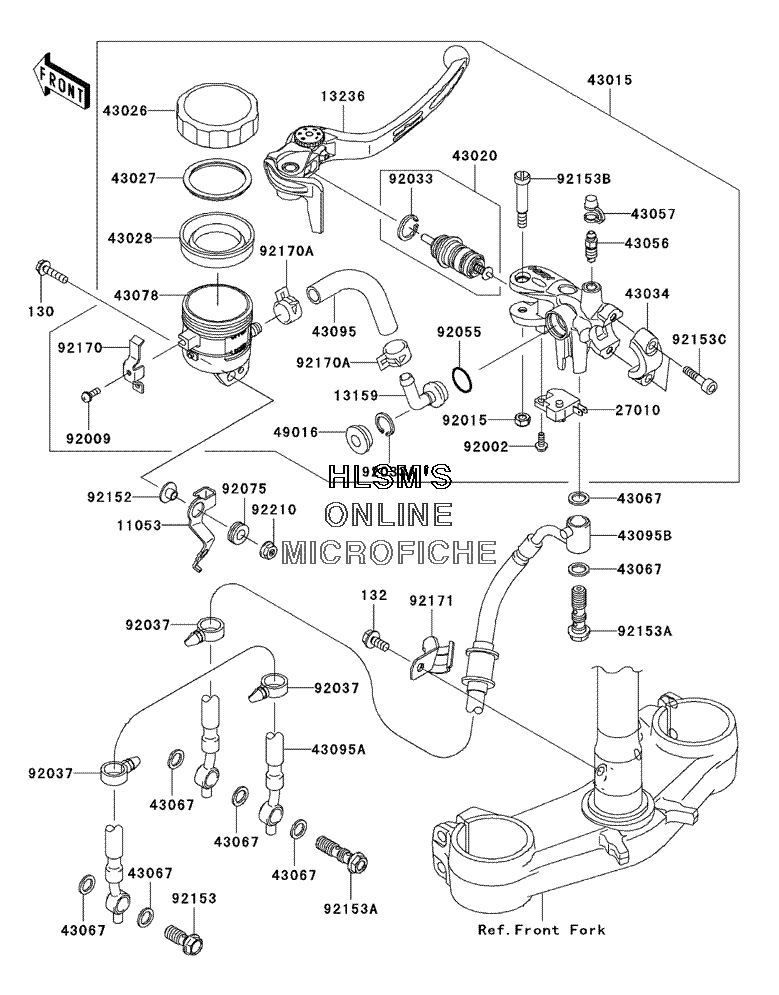

BRAKE - MASTER CYLINDER - FRONT для Kawasaki NINJA ZX-6RR - 2006 года выпуска`
-
№АртикулНазвание
-
130130L0520 BOLT-FLANGED, 5X20BOLT-FLANGED, 5X20
-
132132J0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1105311053-1545 BRACKET, RESERVOIR TANK, FRONTBRACKET, RESERVOIR TANK, FRONT
-
1315913159-1061 CONNECTORCONNECTOR
-
1323613236-0083 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0032 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-0001 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0005 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-0002 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4305643056-1056 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1099 RESERVOIRRESERVOIR
-
4309543095-0081 HOSE-BRAKE, FRONT MASTER CYLINDERHOSE-BRAKE, FRONT MASTER CYLINDER
-
43095A43095-0175 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
43095B43095-0194 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4901649016-1147 COVER-SEALCOVER-SEAL
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
9200992009-1570 SCREWSCREW
-
9201592015-1191 NUT, LOCK, 6MM (BLACK)NUT, LOCK, 6MM (BLACK)
-
9203392033-0034 RING-SNAPRING-SNAP
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
9205592055-1251 RING-O, MASTER CYLINDERRING-O, MASTER CYLINDER
-
9207592075-161 DAMPERDAMPER
-
9215292152-0017 COLLARCOLLAR
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-0628 BOLT, OIL, L=37BOLT, OIL, L=37
-
92153B92153-0868 BOLT, LEVERBOLT, LEVER
-
92153C92153-0911 BOLTBOLT
-
9217092170-1090 CLAMPCLAMP
-
92170A92170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-0406 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
