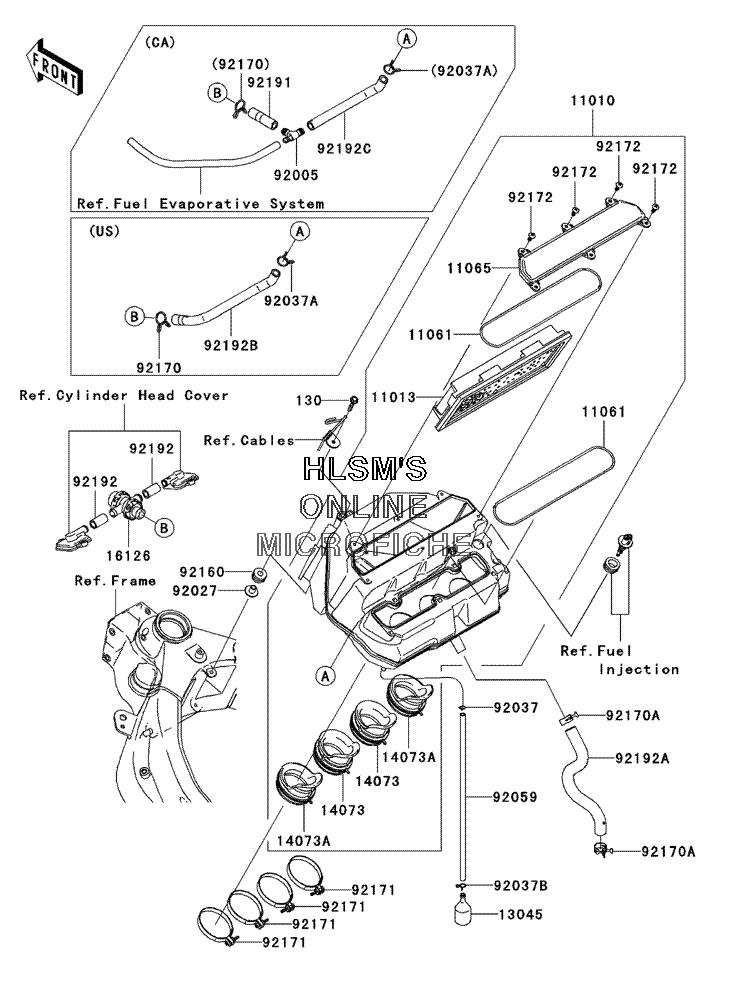

AIR CLEANER для Kawasaki NINJA ZX-6RR - 2006 года выпуска

№

Артикул

Название
130

130L0630 BOLT-FLANGED, 6X30

BOLT-FLANGED, 6X30
11010

11010-0050 FILTER-ASSY-AIR

FILTER-ASSY-AIR
11013

11013-0010 ELEMENT-AIR FILTER

ELEMENT-AIR FILTER
11061

11061-0127 GASKET

GASKET
11065

11065-0082 CAP, AIR FILTER CASE

CAP, AIR FILTER CASE
13045

13045-1057 RECEIVER-OIL

RECEIVER-OIL
14073

14073-0077 DUCT, #2, #3

DUCT, #2, #3
14073A

14073-0084 DUCT, #1, #4

DUCT, #1, #4
16126

16126-1433 VALVE, AIR SWITCH

VALVE, AIR SWITCH
92005

92005-1402 FITTING (CALIF, ONLY)

FITTING (CALIF, ONLY)
92027

92027-251 COLLAR, L=13.1

COLLAR, L=13.1
92037

92037-010 CLAMP, TUBE

CLAMP, TUBE
92037A

92037-1593 CLAMP

CLAMP
92037B

92037-1712 CLAMP

CLAMP
92059

92059-103 TUBE, 6X9X360

TUBE, 6X9X360
92160

92160-1162 DAMPER

DAMPER
92170

92170-1017 CLAMP

CLAMP
92170A

92170-1060 CLAMP

CLAMP
92171

92171-0436 CLAMP, FUNNEL TIGHTEN

CLAMP, FUNNEL TIGHTEN
92172

92172-0177 SCREW, 5X16

SCREW, 5X16
92191

92191-1813 TUBE, FITTING-AIR SWITCH (CALIF, ONLY)

TUBE, FITTING-AIR SWITCH (CALIF, ONLY)
92192

92192-0009 TUBE, 10X16X29

TUBE, 10X16X29
92192A

92192-0153 TUBE, BLOW-BY

TUBE, BLOW-BY
92192B

92192-0154 TUBE, A/C-ASV (US ONLY)

TUBE, A/C-ASV (US ONLY)
92192C

92192-0168 TUBE, FITTING-A/C (CALIF, ONLY)

TUBE, FITTING-A/C (CALIF, ONLY)
