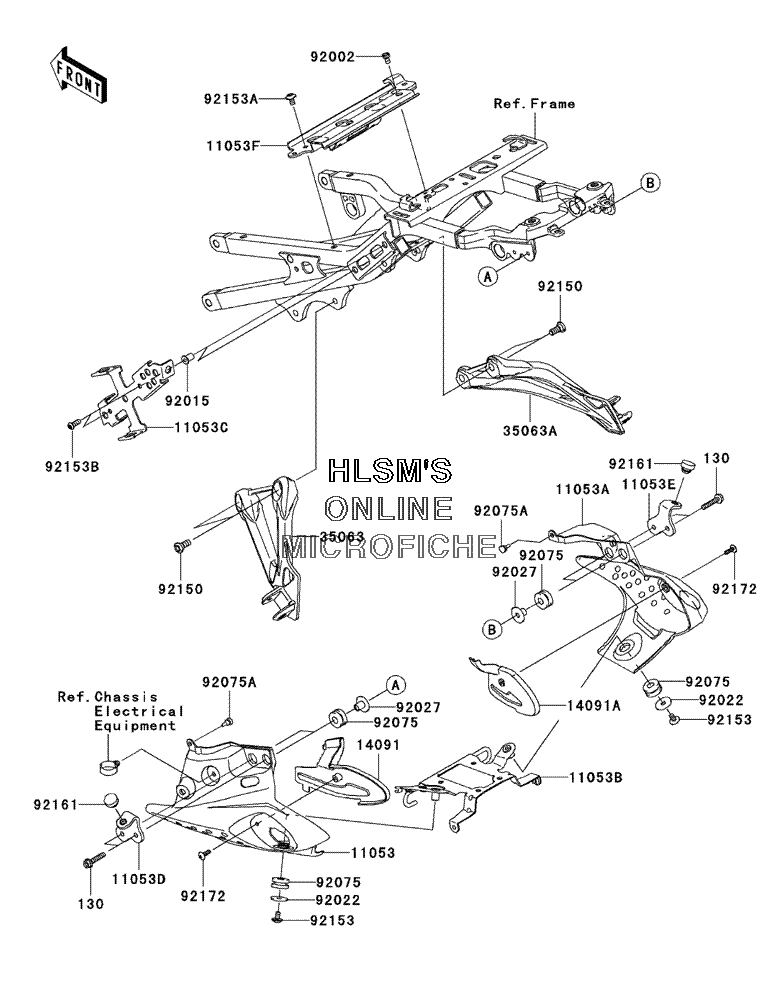

FRAME FITTINGS (REAR) для Kawasaki NINJA ZX-6RR - 2006 года выпуска

  • №
    Артикул
    Название
  • 130
    130L0630 BOLT-FLANGED, 6X30
    BOLT-FLANGED, 6X30
  • 11053
    11053-1404 BRACKET, REAR SIGNAL LAMP (LEFT)
    BRACKET, REAR SIGNAL LAMP (LEFT)
  • 11053A
    11053-1405 BRACKET, REAR SIGNAL LAMP (RIGHT)
    BRACKET, REAR SIGNAL LAMP (RIGHT)
  • 11053B
    11053-1538 BRACKET, REAR FLAP
    BRACKET, REAR FLAP
  • 11053C
    11053-1664 BRACKET, RELAY BOX
    BRACKET, RELAY BOX
  • 11053D
    11053-1701 BRACKET (LEFT)
    BRACKET (LEFT)
  • 11053E
    11053-1702 BRACKET (RIGHT)
    BRACKET (RIGHT)
  • 11053F
    11053-1721 BRACKET, FRONT SEAT
    BRACKET, FRONT SEAT
  • 14091
    14091-0362 COVER, REAR SIGNAL LAMP (LEFT)
    COVER, REAR SIGNAL LAMP (LEFT)
  • 14091A
    14091-0363 COVER, REAR SIGNAL LAMP (RIGHT)
    COVER, REAR SIGNAL LAMP (RIGHT)
  • 35063
    35063-0144 STAY, REAR (LEFT)
    STAY, REAR (LEFT)
  • 35063A
    35063-0145 STAY, REAR (RIGHT)
    STAY, REAR (RIGHT)
  • 92002
    92002-1175 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    92022-1160 WASHER, 7X24X1.6
    WASHER, 7X24X1.6
  • 92027
    92027-1450 COLLAR, L=13.1 (BLACK)
    COLLAR, L=13.1 (BLACK)
  • 92075
    92075-1690 DAMPER
    DAMPER
  • 92075A
    92075-1808 DAMPER
    DAMPER
  • 92150
    92150-1760 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92153
    92153-0410 BOLT, SOCKET, 6X10
    BOLT, SOCKET, 6X10
  • 92153A
    92153-0816 BOLT, 6X18
    BOLT, 6X18
  • 92153B
    92153-1244 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92161
    92161-0046 DAMPER
    DAMPER
  • 92172
    92172-0175 SCREW, TAPPING, 5X16
    SCREW, TAPPING, 5X16
