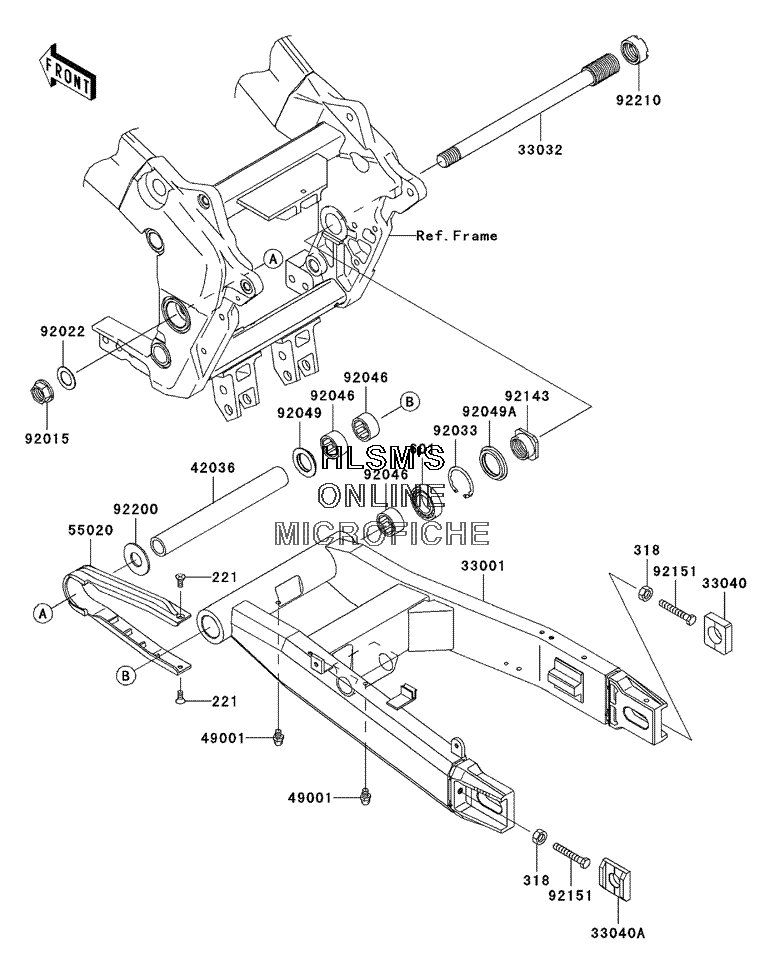

SUSPENSION - SWINGARM для Kawasaki ZZR1200 - 2005 года выпуска

  • №
    Артикул
    Название
  • 221
    221C0508 SCREW, CSK, CROS, 5X8
    SCREW, CSK, CROS, 5X8
  • 318
    318G0800 NUT, HEX, SMALL, 8MM
    NUT, HEX, SMALL, 8MM
  • 601
    601A6004 BEARING, BALL, #6004
    BEARING, BALL, #6004
  • 33001
    33001-1624-458 ARM, COMP, SWING (P.SILVER)
    ARM, COMP, SWING (P.SILVER)
  • 33032
    33032-1201 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1109 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 33040A
    33040-1191 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 42036
    42036-1372 SLEEVE, SWING ARM, L=231.8
    SLEEVE, SWING ARM, L=231.8
  • 49001
    49001-0001 NIPPLE, GREASE
    NIPPLE, GREASE
  • 55020
    55020-1786 GUARD, CHAIN
    GUARD, CHAIN
  • 92015
    92015-1724 NUT, FLANGED, 20MM
    NUT, FLANGED, 20MM
  • 92022
    92022-1280 WASHER, THRUST, 20.5MM
    WASHER, THRUST, 20.5MM
  • 92033
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92046
    92046-1111 BEARING, NEEDLE, BM2817
    BEARING, NEEDLE, BM2817
  • 92049
    92049-1181 SEAL, OIL
    SEAL, OIL
  • 92049A
    92049-1380 SEAL, OIL, MHA 35 42 5.7F
    SEAL, OIL, MHA 35 42 5.7F
  • 92143
    92143-1973 COLLAR, SWING ARM PIVOT (RIGHT)
    COLLAR, SWING ARM PIVOT (RIGHT)
  • 92151
    92151-1578 BOLT, 8X55
    BOLT, 8X55
  • 92200
    92200-1167 WASHER, 20.3X48X2.3
    WASHER, 20.3X48X2.3
  • 92210
    92210-1347 NUT, M28X1.0
    NUT, M28X1.0
