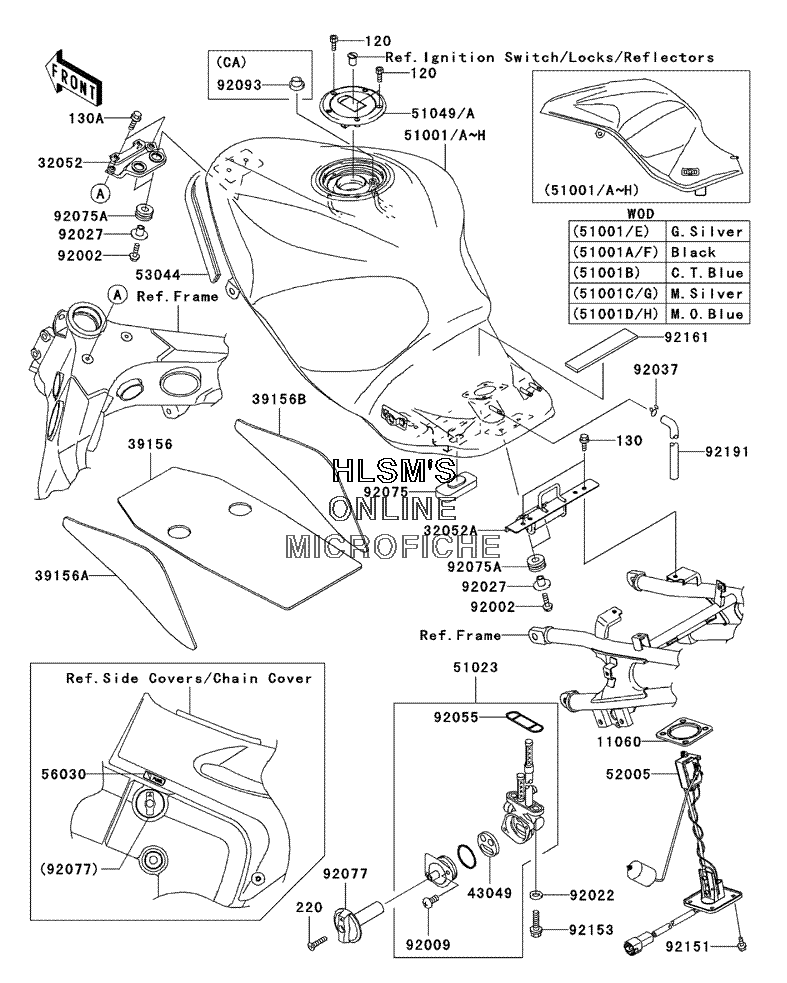

FUEL TANK для Kawasaki ZZR1200 - 2005 года выпуска

  • №
    Артикул
    Название
  • 11060
    11060-1952 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 32052
    32052-1559 BRACKET, TANK, FRONT
    BRACKET, TANK, FRONT
  • 32052A
    32052-1560 BRACKET, TANK, REAR
    BRACKET, TANK, REAR
  • 39156
    39156-1709 PAD, FUEL TANK, CENTER
    PAD, FUEL TANK, CENTER
  • 39156A
    39156-1710 PAD, FUEL TANK (LEFT)
    PAD, FUEL TANK (LEFT)
  • 39156B
    39156-1711 PAD, FUEL TANK (RIGHT)
    PAD, FUEL TANK (RIGHT)
  • 43049
    43049-1099 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 51001D
    51001-1672-726 TANK, COMP, FUEL (M.O.BLUE) (EXCEPT CALIF.)
    TANK, COMP, FUEL (M.O.BLUE) (EXCEPT CALIF.)
  • 51001H
    51001-1673-726 TANK, COMP, FUEL (M.O.BLUE) (CALIF. ONLY)
    TANK, COMP, FUEL (M.O.BLUE) (CALIF. ONLY)
  • 51023
    51023-1368 TAP, ASSY., FUEL
    TAP, ASSY., FUEL
  • 51049
    51049-0010 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 52005
    52005-1155 GAUGE, FUEL
    GAUGE, FUEL
  • 53044
    53044-1329 TRIM, L=600
    TRIM, L=600
  • 56030
    56030-1281 LABEL, FUEL TAP KNOB
    LABEL, FUEL TAP KNOB
  • 92002
    92002-1237 BOLT, 6X20
    BOLT, 6X20
  • 92009
    92009-1386 SCREW, 3X8
    SCREW, 3X8
  • 92022
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92027
    92027-251 COLLAR, L=13.1
    COLLAR, L=13.1
  • 92037
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1112 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92075
    92075-1114 DAMPER, FUEL TANK, REAR
    DAMPER, FUEL TANK, REAR
  • 92075A
    92075-1690 DAMPER
    DAMPER
  • 92077
    92077-1131 KNOB, FUEL TAP
    KNOB, FUEL TAP
  • 120
    120S0516 BOLT, SOCKET
    BOLT, SOCKET
  • 130
    130J0616 BOLT, FLANGED, 6X16 (BLACK)
    BOLT, FLANGED, 6X16 (BLACK)
  • 130A
    130J0620 BOLT, FLANGED
    BOLT, FLANGED
  • 220
    220F0416 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92151
    92151-1599 BOLT, 5X12
    BOLT, 5X12
  • 92153
    92153-0514 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 92161
    92161-1299 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92191
    92191-1272 TUBE, DRAIN
    TUBE, DRAIN
