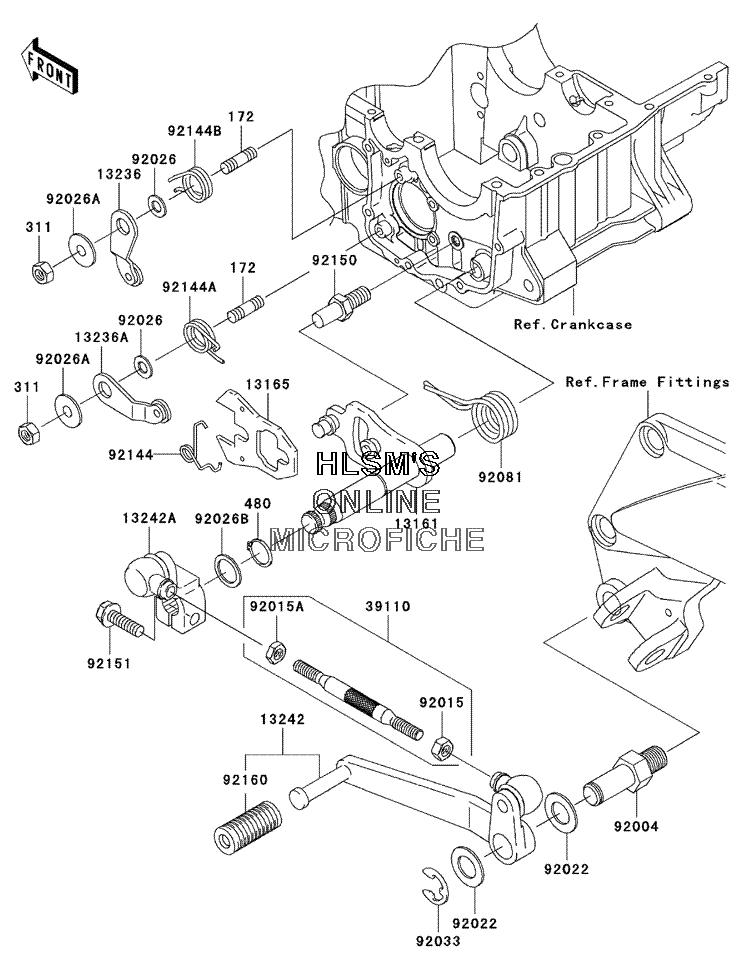

GEAR CHANGE MECHANISM для Kawasaki ZZR1200 - 2005 года выпуска
-
№АртикулНазвание
-
172172G0614 BOLT, STUD, 6X14BOLT, STUD, 6X14
-
311311G0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
480480J1300 CIRCLIP, TYPE, C, 13MMCIRCLIP, TYPE, C, 13MM
-
1316113161-1155 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1316513165-1120 PAWLPAWL
-
1323613236-1103 LEVER, COMP, GEAR POSITIONLEVER, COMP, GEAR POSITION
-
13236A13236-1216 LEVER, COMP, GEAR POSITIONLEVER, COMP, GEAR POSITION
-
1324213242-1283 LEVER, ASSY., CHANGE, PEDALLEVER, ASSY., CHANGE, PEDAL
-
13242A13242-1392 LEVER, ASSY., CHANGE, BOSSLEVER, ASSY., CHANGE, BOSS
-
3911039110-1129 ROD, ASSY., TIEROD, ASSY., TIE
-
9200492004-1164 STUD, CHANGE PEDAL, PIVOTSTUD, CHANGE PEDAL, PIVOT
-
9201592015-1443 NUT, 6MMNUT, 6MM
-
92015A92015-1444 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
-
9202292022-1593 WASHER, 12.5X22X1.2WASHER, 12.5X22X1.2
-
9202692026-094 SPACER, 6.3X12X1.0SPACER, 6.3X12X1.0
-
92026A92026-1217 SPACERSPACER
-
92026B92026-1532 SPACER, 13.3X18X1.0SPACER, 13.3X18X1.0
-
9203392033-1178 RING, SNAP, TYPE, E, 10MMRING, SNAP, TYPE, E, 10MM
-
9208192081-1869 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
9214492144-1029 SPRINGSPRING
-
92144A92144-1523 SPRING, GEAR POSITIONSPRING, GEAR POSITION
-
92144B92144-1856 SPRINGSPRING
-
9215092150-1869 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9215192151-1226 BOLT, 6X20BOLT, 6X20
-
9216092160-1036 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
