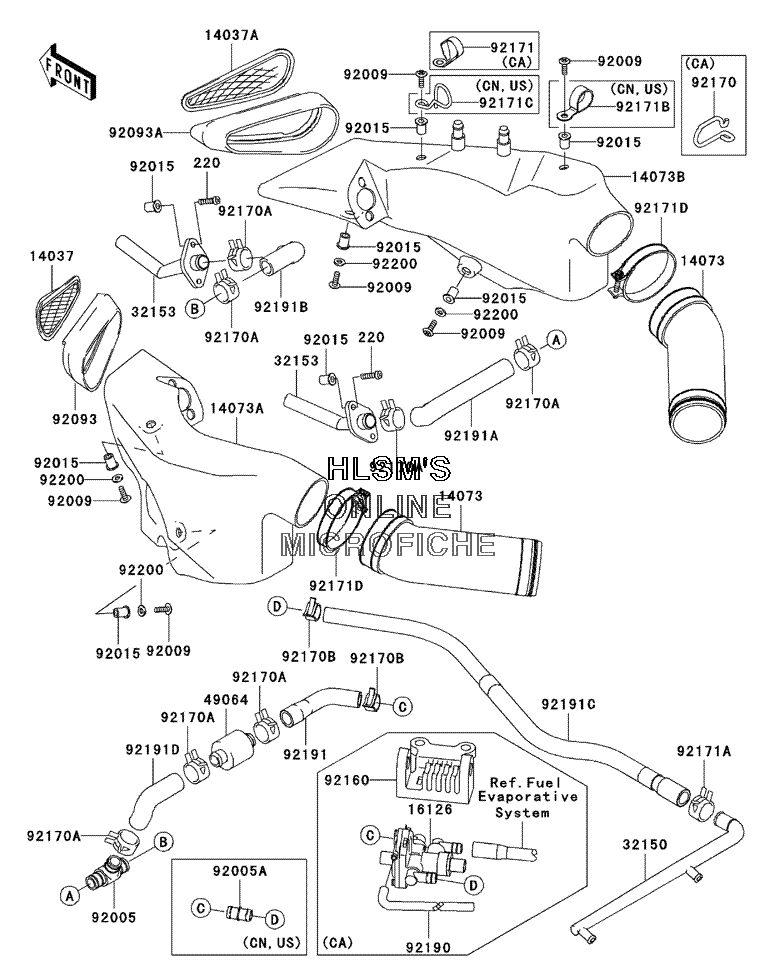

AIR DUCT для Kawasaki ZZR1200 - 2005 года выпуска
-
№АртикулНазвание
-
220220D0520 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
1403714037-1306 SCREEN, AIR DUCT (LEFT)SCREEN, AIR DUCT (LEFT)
-
14037A14037-1307 SCREEN, AIR DUCT (RIGHT)SCREEN, AIR DUCT (RIGHT)
-
1407314073-1554 DUCT, AIR FILTERDUCT, AIR FILTER
-
14073A14073-1817 DUCT, AIR INTAKE (LEFT)DUCT, AIR INTAKE (LEFT)
-
14073B14073-1818 DUCT, AIR INTAKE (RIGHT)DUCT, AIR INTAKE (RIGHT)
-
1612616126-1422 VALVE, CANISTER (CALIF. ONLY)VALVE, CANISTER (CALIF. ONLY)
-
3215032150-1820 PIPEPIPE
-
3215332153-1826 PIPE, RAM VENTPIPE, RAM VENT
-
4906449064-1055 FILTER, AIRFILTER, AIR
-
9200592005-1130 FITTING, TUBE, T, TYPEFITTING, TUBE, T, TYPE
-
92005A92005-1247 FITTING (EXCEPT CALIF.)FITTING (EXCEPT CALIF.)
-
9200992009-1909 SCREW, 5X16SCREW, 5X16
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9209392093-1561 SEAL, AIR DUCT (LEFT)SEAL, AIR DUCT (LEFT)
-
92093A92093-1562 SEAL, AIR DUCT (RIGHT)SEAL, AIR DUCT (RIGHT)
-
9216092160-1241 DAMPER, VALVE (CALIF. ONLY)DAMPER, VALVE (CALIF. ONLY)
-
9217092170-1008 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92170A92170-1060 CLAMPCLAMP
-
92170B92170-1118 CLAMPCLAMP
-
9217192171-1099 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171A92171-1277 CLAMPCLAMP
-
92171B92171-1279 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
92171C92171-1507 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
92171D92171-1563 CLAMPCLAMP
-
9219092190-1380 TUBE, VALVE, HOLDER (CALIF. ONLY)TUBE, VALVE, HOLDER (CALIF. ONLY)
-
9219192191-1701 TUBE, FILTER, CARBURETORTUBE, FILTER, CARBURETOR
-
92191A92191-1702 TUBE, AIR VENT (LEFT)TUBE, AIR VENT (LEFT)
-
92191B92191-1703 TUBE, AIR VENT (RIGHT)TUBE, AIR VENT (RIGHT)
-
92191C92191-1716 TUBE, FILTER, CARBURETORTUBE, FILTER, CARBURETOR
-
92191D92191-1764 TUBE, FIT, FILTERTUBE, FIT, FILTER
-
9220092200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
