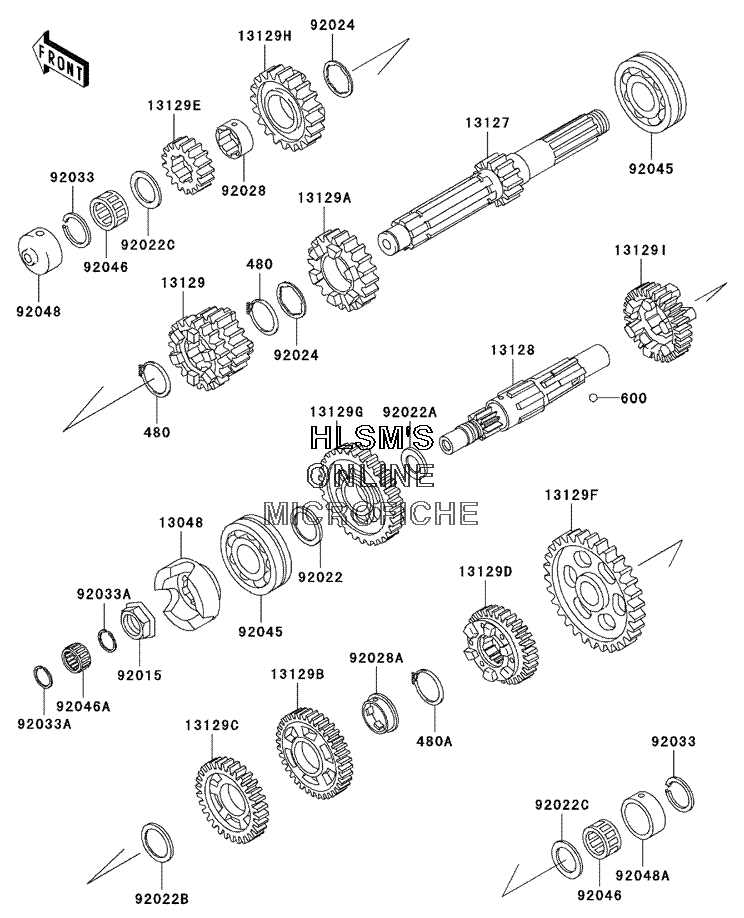

TRANSMISSION для Kawasaki Concours - 2005 года выпуска
-
№АртикулНазвание
-
480480J2800 CIRCLIP, TYPE, C, 28MMCIRCLIP, TYPE, C, 28MM
-
480A480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1304813048-1060 CAM, DAMPERCAM, DAMPER
-
1312713127-1135 SHAFT, TRANSMISSION INPUT (14 TEETH)SHAFT, TRANSMISSION INPUT (14 TEETH)
-
1312813128-1138 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1312913129-1664 GEAR, INPUT 3RD AND 4TH (24 AND 22 TEETH)GEAR, INPUT 3RD AND 4TH (24 AND 22 TEETH)
-
13129A13129-1665 GEAR, INPUT 5TH (26 TEETH)GEAR, INPUT 5TH (26 TEETH)
-
13129B13129-1775 GEAR, OUTPUT 3RD (35 TEETH)GEAR, OUTPUT 3RD (35 TEETH)
-
13129C13129-1776 GEAR, OUTPUT 4TH (32 TEETH)GEAR, OUTPUT 4TH (32 TEETH)
-
13129D13129-1777 GEAR, OUTPUT 5TH (30 TEETH)GEAR, OUTPUT 5TH (30 TEETH)
-
13129E13129-1784 GEAR, INPUT 2ND (18 TEETH)GEAR, INPUT 2ND (18 TEETH)
-
13129F13129-1785 GEAR, OUTPUT LOW (43 TEETH)GEAR, OUTPUT LOW (43 TEETH)
-
13129G13129-1786 GEAR, OUTPUT 2ND (37 TEETH)GEAR, OUTPUT 2ND (37 TEETH)
-
13129H13129-1825 GEAR, INPUT TOP (29 TEETH)GEAR, INPUT TOP (29 TEETH)
-
13129I13129-1826 GEAR, OUTPUT TOP (28 TEETH)GEAR, OUTPUT TOP (28 TEETH)
-
9201592015-1610 NUT, 20MMNUT, 20MM
-
9202292022-1219 WASHER, 28.3X42X2.9WASHER, 28.3X42X2.9
-
92022A92022-1693 WASHER, 32X40X1.6WASHER, 32X40X1.6
-
92022B92022-1694 WASHER, 30X38X2.0WASHER, 30X38X2.0
-
92022C92022-212 WASHER, 22.3X35X1.6WASHER, 22.3X35X1.6
-
9202492024-042 WASHER, TOOTHED, 26X35.5X1.5WASHER, TOOTHED, 26X35.5X1.5
-
9202892028-1124 BUSHING, TOP GEARBUSHING, TOP GEAR
-
92028A92028-1374 BUSHING, OUTPUT 3RD GEARBUSHING, OUTPUT 3RD GEAR
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
92033A92033-028 RING, SNAPRING, SNAP
-
9204592045-1413 BEARING, BALLBEARING, BALL
-
9204692046-031 BEARING, NEEDLE, FWF, 223014BEARING, NEEDLE, FWF, 223014
-
92046A92046-1145 BEARING, NEEDLE, K17X23X17BEARING, NEEDLE, K17X23X17
-
9204892048-1052 RACE, INPUT SHAFTRACE, INPUT SHAFT
-
92048A92048-1053 RACE, 30X38X15RACE, 30X38X15
