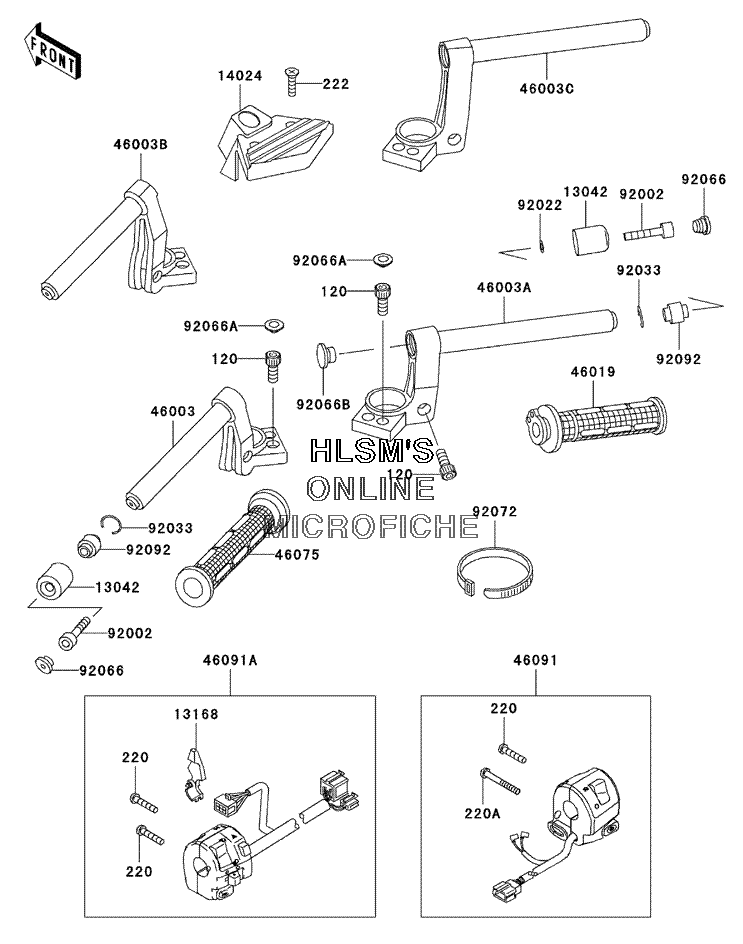

HANDLEBAR для Kawasaki Concours - 2005 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0820 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 220
    220C0525 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220C0540 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 222
    222C0525 SCREW, CSK, RD, CROS
    SCREW, CSK, RD, CROS
  • 13042
    13042-1006 WEIGHT, HANDLE
    WEIGHT, HANDLE
  • 13168
    13168-1516 LEVER, CHOKE
    LEVER, CHOKE
  • 14024
    14024-1104 COVER, HANDLE
    COVER, HANDLE
  • 46003
    46003-1213 HANDLE (LEFT) LOW TYPE (OPT)
    HANDLE (LEFT) LOW TYPE (OPT)
  • 46003A
    46003-1214 HANDLE (RIGHT) LOW TYPE (OPT)
    HANDLE (RIGHT) LOW TYPE (OPT)
  • 46003B
    46003-1246 HANDLE (LEFT) HIGH TYPE
    HANDLE (LEFT) HIGH TYPE
  • 46003C
    46003-1247 HANDLE (RIGHT) HIGH TYPE
    HANDLE (RIGHT) HIGH TYPE
  • 46019
    46019-1077 GRIP, ASSY., THROTTLE
    GRIP, ASSY., THROTTLE
  • 46075
    46075-1088 GRIP (LEFT)
    GRIP (LEFT)
  • 46091
    46091-1672 HOUSING, ASSY., CONTROL (RIGHT)
    HOUSING, ASSY., CONTROL (RIGHT)
  • 46091A
    46091-1857 HOUSING, ASSY., CONTROL (LEFT)
    HOUSING, ASSY., CONTROL (LEFT)
  • 92002
    92002-1844 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92022
    92022-1470 WASHER, 8.5X14.5X1.6
    WASHER, 8.5X14.5X1.6
  • 92033
    92033-1102 RING, SNAP, OD=22.2
    RING, SNAP, OD=22.2
  • 92066
    92066-1124 PLUG, HANDLE
    PLUG, HANDLE
  • 92066A
    92066-1216 PLUG
    PLUG
  • 92066B
    92066-1245 PLUG, 13.5X12, POLYETHYLENE
    PLUG, 13.5X12, POLYETHYLENE
  • 92072
    92072-1197 BAND, L=365
    BAND, L=365
  • 92092
    92092-1018 BUSHING, RUBBER, HANDLE
    BUSHING, RUBBER, HANDLE
