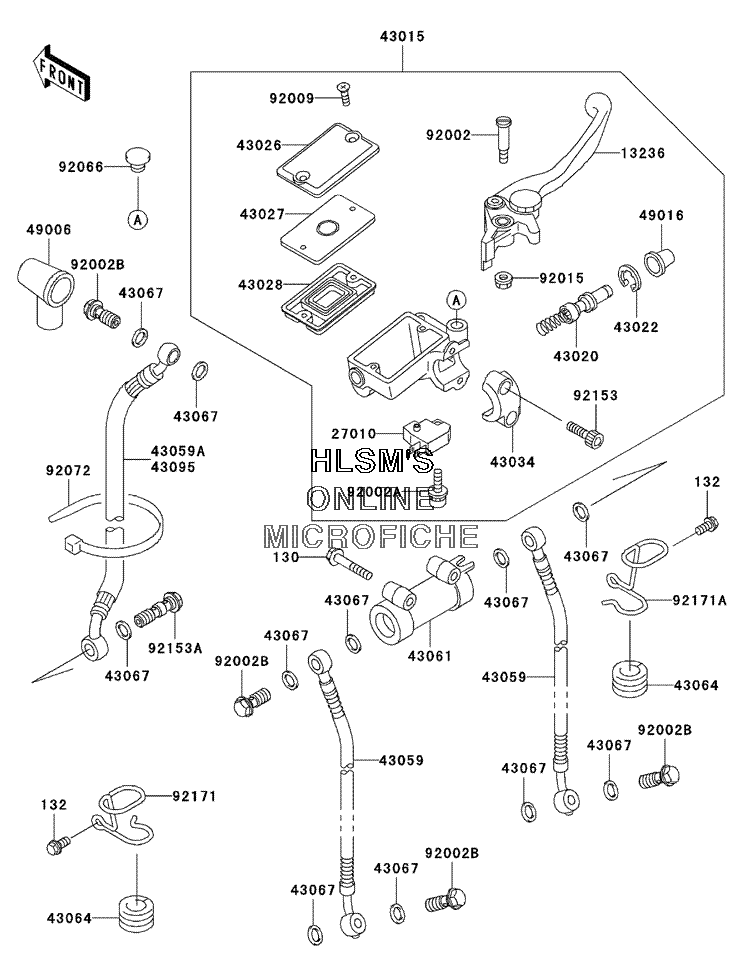

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Concours - 2005 года выпуска`
-
№АртикулНазвание
-
130130G0660 BOLT, FLANGED, 6X60BOLT, FLANGED, 6X60
-
132132E0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1323613236-1185 LEVER, COMP, FRONT BRAKELEVER, COMP, FRONT BRAKE
-
2701027010-1170 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-1498 CYLINDER, ASSY., MASTER, FRONTCYLINDER, ASSY., MASTER, FRONT
-
4302043020-1054 PISTON, COMP, BRAKE, FRONTPISTON, COMP, BRAKE, FRONT
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1076 CAP, BRAKECAP, BRAKE
-
4302743027-1055 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1058 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1053 HOLDER, BRAKE, MASTER CYLINDERHOLDER, BRAKE, MASTER CYLINDER
-
4305943059-1789 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
43059A43059-1791 HOSE, BRAKE, FRONT, FOR LOW HANDLE (OPT)HOSE, BRAKE, FRONT, FOR LOW HANDLE (OPT)
-
4306143061-1004 JOINT, BRAKEJOINT, BRAKE
-
4306443064-007 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-1388 HOSE, BRAKE, FRONT, FOR UP HANDLEHOSE, BRAKE, FRONT, FOR UP HANDLE
-
4900649006-1040 BOOT, DUSTBOOT, DUST
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1322 BOLT, LEVER SET (BLACK)BOLT, LEVER SET (BLACK)
-
92002A92002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002B92002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9206692066-1077 PLUG, 9.5X8, POLYETHYLENEPLUG, 9.5X8, POLYETHYLENE
-
9207292072-1197 BAND, L=365BAND, L=365
-
9215392153-0417 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92153A92153-0628 BOLT, OIL, L=37BOLT, OIL, L=37
-
9217192171-0100 CLAMP, HOSE (LEFT)CLAMP, HOSE (LEFT)
-
92171A92171-0101 CLAMP, HOSE (RIGHT)CLAMP, HOSE (RIGHT)
