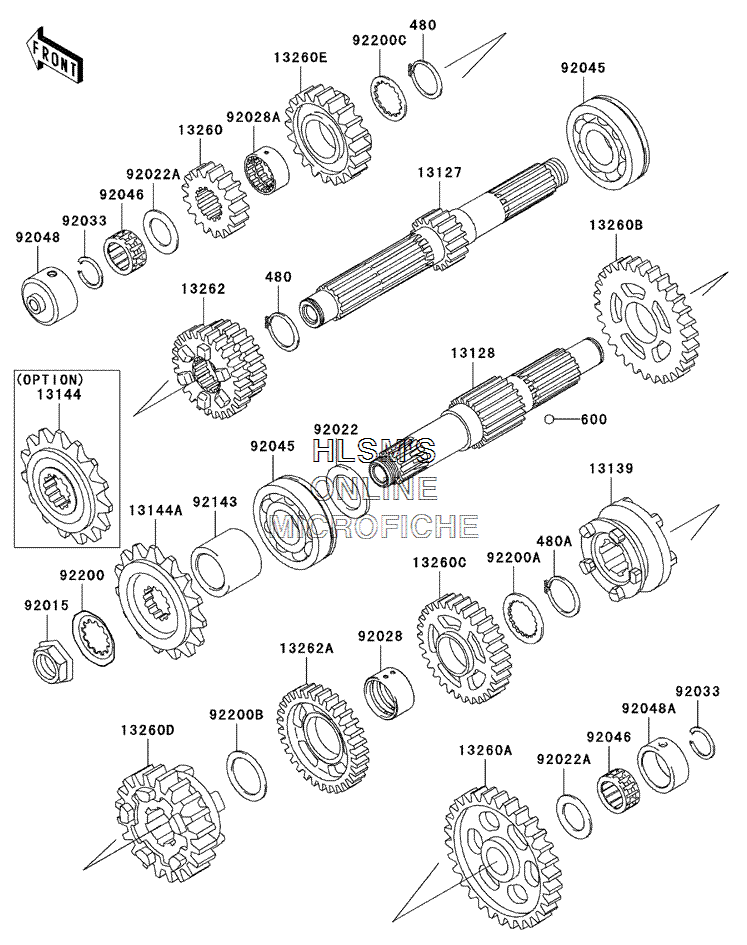

TRANSMISSION для Kawasaki ZRX1200 - 2004 года выпуска
-
№АртикулНазвание
-
480480J2800 CIRCLIP, TYPE, C, 28MMCIRCLIP, TYPE, C, 28MM
-
480A480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1257 SHAFT, TRANSMISSION INPUT (15 TEETH)SHAFT, TRANSMISSION INPUT (15 TEETH)
-
1312813128-1218 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1313913139-1079 SHIFTERSHIFTER
-
1314413144-1283 SPROCKET, OUTPUT (17 TEETH) (OPT)SPROCKET, OUTPUT (17 TEETH) (OPT)
-
13144A13144-1290 SPROCKET, OUTPUT (17 TEETH)SPROCKET, OUTPUT (17 TEETH)
-
1326013260-1663 GEAR, INPUT 2ND (19 TEETH)GEAR, INPUT 2ND (19 TEETH)
-
13260A13260-1665 GEAR, OUTPUT LOW (41 TEETH)GEAR, OUTPUT LOW (41 TEETH)
-
13260B13260-1666 GEAR, OUTPUT 2ND (37 TEETH)GEAR, OUTPUT 2ND (37 TEETH)
-
13260C13260-1667 GEAR, OUTPUT 3RD (34 TEETH)GEAR, OUTPUT 3RD (34 TEETH)
-
13260D13260-1669 GEAR, OUTPUT TOP (29 TEETH)GEAR, OUTPUT TOP (29 TEETH)
-
13260E13260-1925 GEAR, INPUT TOP (28 TEETH)GEAR, INPUT TOP (28 TEETH)
-
1326213262-0101 GEAR, INPUT 3RD AND 4TH (23/26 TEETH)GEAR, INPUT 3RD AND 4TH (23/26 TEETH)
-
13262A13262-0102 GEAR, OUTPUT, 4TH (31 TEETH)GEAR, OUTPUT, 4TH (31 TEETH)
-
9201592015-1210 NUT, 20MMNUT, 20MM
-
9202292022-1219 WASHER, 28.3X42X2.9WASHER, 28.3X42X2.9
-
92022A92022-212 WASHER, 22.3X35X1.6WASHER, 22.3X35X1.6
-
9202892028-1753 BUSHING, OUTPUT, 3RD AND 4THBUSHING, OUTPUT, 3RD AND 4TH
-
92028A92028-1802 BUSHING, INPUT, TOP GEARBUSHING, INPUT, TOP GEAR
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
9204592045-1413 BEARING, BALLBEARING, BALL
-
9204692046-031 BEARING, NEEDLE, FWF, 223014BEARING, NEEDLE, FWF, 223014
-
9204892048-1052 RACE, INPUT SHAFTRACE, INPUT SHAFT
-
92048A92048-1053 RACE, 30X38X15RACE, 30X38X15
-
9214392143-1731 COLLAR, 28X40X33.5COLLAR, 28X40X33.5
-
9220092200-1234 WASHER, TOOTHED, 23.9X45X1.0WASHER, TOOTHED, 23.9X45X1.0
-
92200A92200-1277 WASHER, TOOTHED, 28X30X2WASHER, TOOTHED, 28X30X2
-
92200B92200-1278 WASHER, 29.9X40X1.5WASHER, 29.9X40X1.5
-
92200C92200-1340 WASHERWASHER
