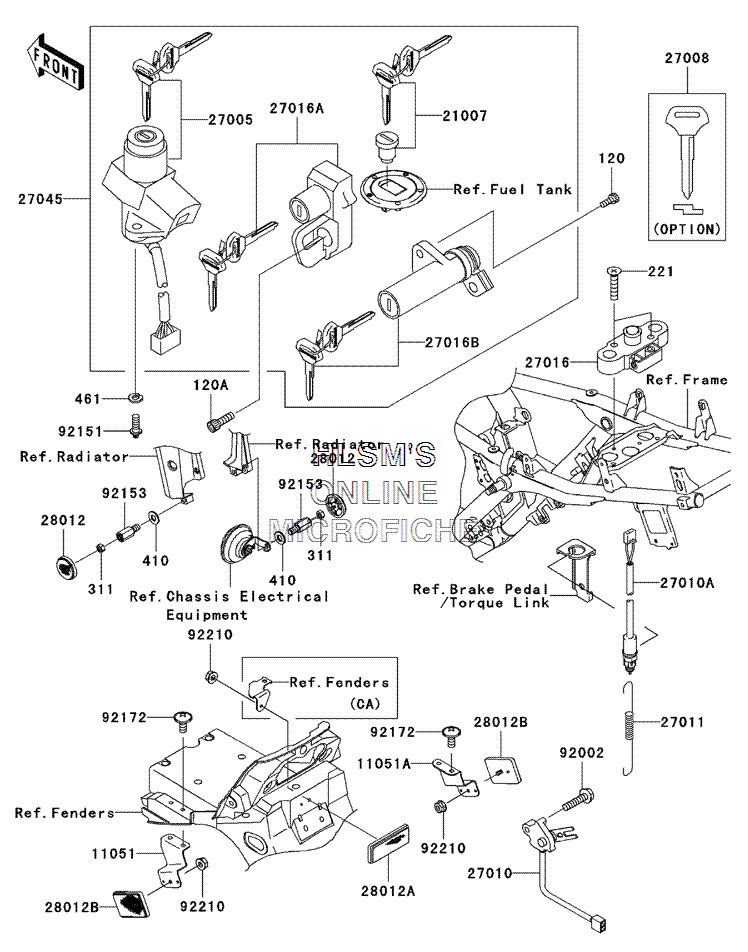

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki ZRX1200 - 2004 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0512 BOLT, SOCKET
    BOLT, SOCKET
  • 120A
    120S0620 BOLT, SOCKET
    BOLT, SOCKET
  • 221
    221F0630 SCREW, CSK, CROSS
    SCREW, CSK, CROSS
  • 311
    311L0500 NUT, HEX
    NUT, HEX
  • 410
    410F0800 WASHER, PLAIN, SMALL, 8MM (BLACK)
    WASHER, PLAIN, SMALL, 8MM (BLACK)
  • 461
    461L0600 WASHER, SPRING
    WASHER, SPRING
  • 11051
    11051-1131 BRACKET, REFLECTOR, REAR, SIDE (LEFT)
    BRACKET, REFLECTOR, REAR, SIDE (LEFT)
  • 11051A
    11051-1132 BRACKET, REFLECTOR, REAR, SIDE (RIGHT)
    BRACKET, REFLECTOR, REAR, SIDE (RIGHT)
  • 21007
    21007-5042 ROTOR, LOCK, TANK CAP
    ROTOR, LOCK, TANK CAP
  • 27005
    27005-5120 SWITCH, ASSY, IGNITION
    SWITCH, ASSY, IGNITION
  • 27008
    27008-1189 KEY, LOCK, BLANK (OPTION)
    KEY, LOCK, BLANK (OPTION)
  • 27010
    27010-1465 SWITCH, SIDE STAND
    SWITCH, SIDE STAND
  • 27010A
    27010-1479 SWITCH, REAR BRAKE
    SWITCH, REAR BRAKE
  • 27011
    27011-017 SPRING, BRAKE LAMP SWITCH
    SPRING, BRAKE LAMP SWITCH
  • 27016
    27016-1098 LOCK, ASSY, SEAT STRIKER
    LOCK, ASSY, SEAT STRIKER
  • 27016A
    27016-5249 LOCK, ASSY, HELMET
    LOCK, ASSY, HELMET
  • 27016B
    27016-5250 LOCK, ASSY, SEAT
    LOCK, ASSY, SEAT
  • 27045
    27045-5142 SWITCH, ASSY
    SWITCH, ASSY
  • 28012
    28012-016 REFLECTOR, REFLEX, FRONT
    REFLECTOR, REFLEX, FRONT
  • 28012A
    28012-1077 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 28012B
    28012-1088 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 92002
    92002-1582 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 92151
    92151-1911 BOLT, TORX, 6X16
    BOLT, TORX, 6X16
  • 92153
    92153-0788 BOLT, 8MM
    BOLT, 8MM
  • 92172
    92172-0004 SCREW, 6X14
    SCREW, 6X14
  • 92210
    92210-0007 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
