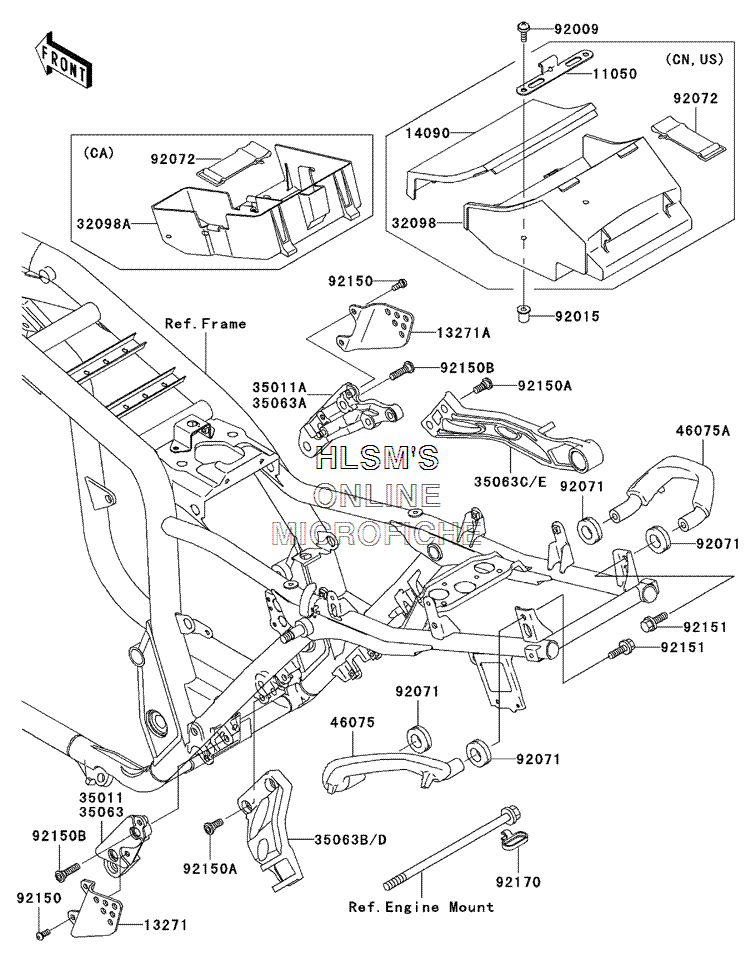

FRAME FITTINGS для Kawasaki ZRX1200 - 2004 года выпуска

  • №
    Артикул
    Название
  • 11050
    11050-1115 BRACKET, TOOL BAND (EXCEPT CALIF.)
    BRACKET, TOOL BAND (EXCEPT CALIF.)
  • 13271
    13271-1698 PLATE, STAY (LEFT)
    PLATE, STAY (LEFT)
  • 13271A
    13271-1699 PLATE, STAY (RIGHT)
    PLATE, STAY (RIGHT)
  • 14090
    14090-1794 COVER, TOOL CASE (EXCEPT CALIF.)
    COVER, TOOL CASE (EXCEPT CALIF.)
  • 32098
    32098-1116 CASE, TOOL (EXCEPT CALIF.)
    CASE, TOOL (EXCEPT CALIF.)
  • 32098A
    32098-1136 CASE, TOOL (CALIF. ONLY)
    CASE, TOOL (CALIF. ONLY)
  • 35011
    35011-1819 STAY, FRONT (LEFT)
    STAY, FRONT (LEFT)
  • 35011A
    35011-1820 STAY, FRONT (RIGHT)
    STAY, FRONT (RIGHT)
  • 35063D
    35063-1187 STAY, REAR (LEFT)
    STAY, REAR (LEFT)
  • 35063E
    35063-1188 STAY, REAR (RIGHT)
    STAY, REAR (RIGHT)
  • 46075
    46075-1141-21 GRIP, REAR (LEFT) (F.BLACK)
    GRIP, REAR (LEFT) (F.BLACK)
  • 46075A
    46075-1142-21 GRIP, REAR (RIGHT) (F.BLACK)
    GRIP, REAR (RIGHT) (F.BLACK)
  • 92009
    92009-1663 SCREW, 6X18
    SCREW, 6X18
  • 92015
    92015-1700 NUT
    NUT
  • 92071
    92071-1028 GROMMET, AIR FILTER
    GROMMET, AIR FILTER
  • 92072
    92072-1417 BAND, TOOL
    BAND, TOOL
  • 92150
    92150-1836 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92150A
    92150-1839 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92150B
    92150-1843 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92151
    92151-1204 BOLT, FLANGED, 8X25
    BOLT, FLANGED, 8X25
  • 92170
    92170-1777 CLAMP, DRAIN
    CLAMP, DRAIN
