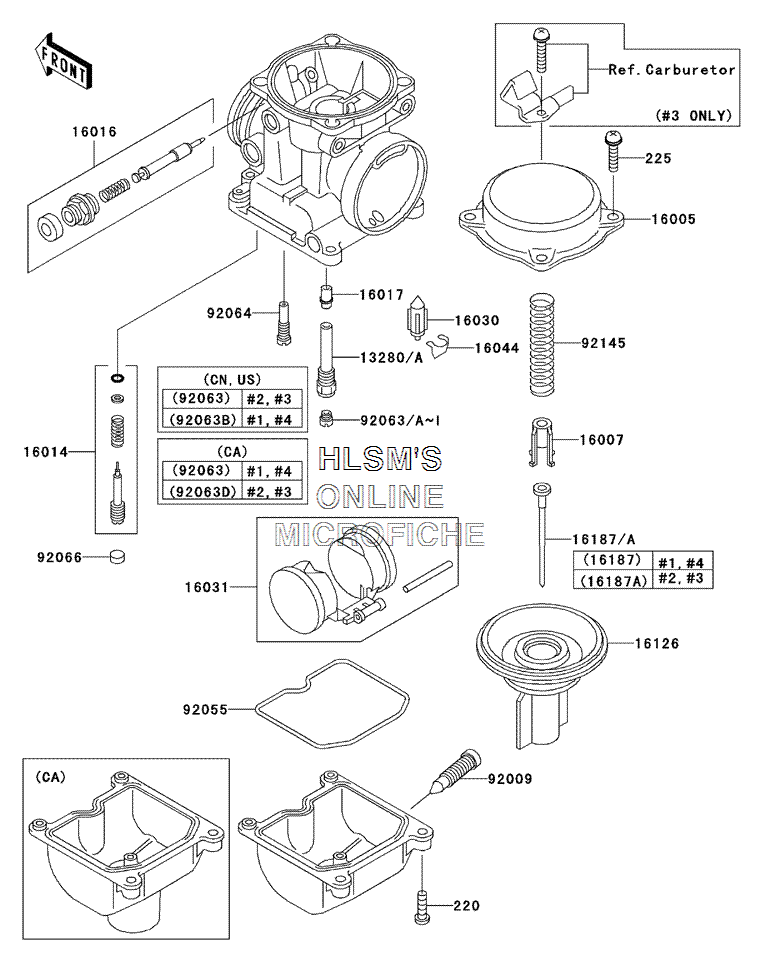

CARBURETOR PARTS для Kawasaki ZRX1200 - 2004 года выпуска

  • №
    Артикул
    Название
  • 13280
    13280-0101 HOLDER, NEEDLE JET (CALIF. ONLY)
    HOLDER, NEEDLE JET (CALIF. ONLY)
  • 13280A
    13280-1054 HOLDER, NEEDLE JET (EXCEPT CALIF.)
    HOLDER, NEEDLE JET (EXCEPT CALIF.)
  • 16005
    16005-1057 TOP, CHAMBER, MIXING, 27/60
    TOP, CHAMBER, MIXING, 27/60
  • 16007
    16007-1117 SEAT, SPRING, VALVE
    SEAT, SPRING, VALVE
  • 16014
    16014-1080 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1090 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16017
    16017-1440 JET, NEEDLE
    JET, NEEDLE
  • 16030
    16030-1057 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1077 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16126
    16126-1338 VALVE, VACUUM
    VALVE, VACUUM
  • 16187
    16187-1200 NEEDLE, JET, NAGZ
    NEEDLE, JET, NAGZ
  • 16187A
    16187-1201 NEEDLE, JET, NAGU
    NEEDLE, JET, NAGU
  • 92009
    92009-1551 SCREW, DRAIN, M6X0.75
    SCREW, DRAIN, M6X0.75
  • 92055
    92055-1222 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92063
    92063-1001 JET, MAIN, #95
    JET, MAIN, #95
  • 92063A
    92063-1003 JET, MAIN, #90 (OPT)
    JET, MAIN, #90 (OPT)
  • 92063B
    92063-1004 JET, MAIN, #92 (EXCEPT CALIF.)
    JET, MAIN, #92 (EXCEPT CALIF.)
  • 92063C
    92063-1004 JET, MAIN, #92 (CALIF. ONLY) (OPT)
    JET, MAIN, #92 (CALIF. ONLY) (OPT)
  • 92063D
    92063-1005 JET, MAIN, #98 (CALIF. ONLY)
    JET, MAIN, #98 (CALIF. ONLY)
  • 92063E
    92063-1005 JET, MAIN, #98 (EXCEPT CALIF.) (OPT)
    JET, MAIN, #98 (EXCEPT CALIF.) (OPT)
  • 92063F
    92063-1006 JET, MAIN, #100 (EXCEPT CALIF.) (OPT)
    JET, MAIN, #100 (EXCEPT CALIF.) (OPT)
  • 92063G
    92063-1008 JET, MAIN, #100 (CALIF. ONLY) (OPT)
    JET, MAIN, #100 (CALIF. ONLY) (OPT)
  • 92063H
    92063-1024 JET, MAIN, #88 (EXCEPT CALIF.) (OPT)
    JET, MAIN, #88 (EXCEPT CALIF.) (OPT)
  • 92063I
    92063-1115 JET, MAIN, #102 (CALIF. ONLY) (OPT)
    JET, MAIN, #102 (CALIF. ONLY) (OPT)
  • 220
    220D0414 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 225
    225C0418 SCREW, PAN, WSP, CROS
    SCREW, PAN, WSP, CROS
  • 92064
    92064-1101 JET, PILOT, #35
    JET, PILOT, #35
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92145
    92145-1064 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
