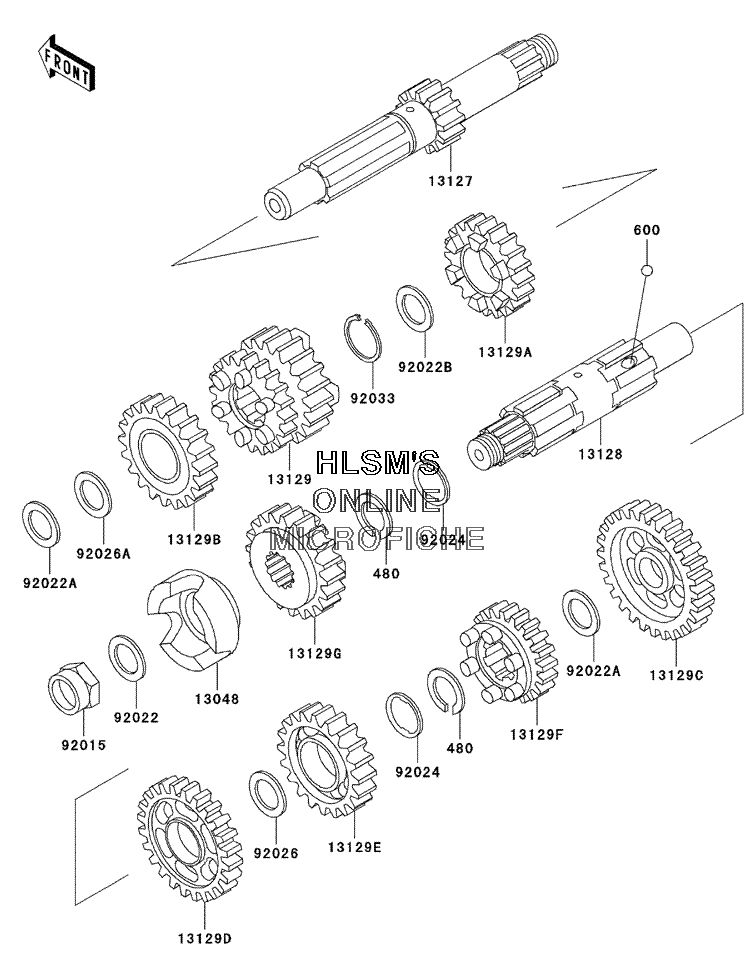

TRANSMISSION для Kawasaki Vulcan 750 - 2004 года выпуска

  • №
    Артикул
    Название
  • 480
    480J3000 CIRCLIP, TYPE, C, 30MM
    CIRCLIP, TYPE, C, 30MM
  • 600
    600A0500 BALL, STEEL, 5/32"
    BALL, STEEL, 5/32"
  • 13048
    13048-1014 CAM, DAMPER, OUTPUT SHAFT
    CAM, DAMPER, OUTPUT SHAFT
  • 13127
    13127-1240 SHAFT, TRANSMISSION INPUT
    SHAFT, TRANSMISSION INPUT
  • 13128
    13128-1114 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13129
    13129-1630 GEAR, INPUT 2ND AND 3RD (20/26 TEETH)
    GEAR, INPUT 2ND AND 3RD (20/26 TEETH)
  • 13129A
    13129-1631 GEAR, INPUT 4TH (26 TEETH)
    GEAR, INPUT 4TH (26 TEETH)
  • 13129B
    13129-1632 GEAR, INPUT 5TH (28 TEETH)
    GEAR, INPUT 5TH (28 TEETH)
  • 13129C
    13129-1633 GEAR, OUTPUT LOW (36 TEETH)
    GEAR, OUTPUT LOW (36 TEETH)
  • 13129D
    13129-1634 GEAR, OUTPUT 2ND (32 TEETH)
    GEAR, OUTPUT 2ND (32 TEETH)
  • 13129E
    13129-1635 GEAR, OUTPUT 3RD (32 TEETH)
    GEAR, OUTPUT 3RD (32 TEETH)
  • 13129F
    13129-1636 GEAR, OUTPUT 4TH (26 TEETH)
    GEAR, OUTPUT 4TH (26 TEETH)
  • 13129G
    13129-1637 GEAR, OUTPUT 5TH (24 TEETH)
    GEAR, OUTPUT 5TH (24 TEETH)
  • 92015
    92015-1067 NUT, LOCK, 14MM
    NUT, LOCK, 14MM
  • 92022
    92022-1115 WASHER, 14.1X31X5
    WASHER, 14.1X31X5
  • 92022A
    92022-112 WASHER, 20.5X30X1, STEEL
    WASHER, 20.5X30X1, STEEL
  • 92022B
    92022-161 WASHER, 25.3X30X1
    WASHER, 25.3X30X1
  • 92024
    92024-069 WASHER, TOOTHED, 30.5X38X1
    WASHER, TOOTHED, 30.5X38X1
  • 92026
    92026-079 SPACER, 30X38X1.0
    SPACER, 30X38X1.0
  • 92026A
    92026-1535 SPACER, 20.5X30X0.5
    SPACER, 20.5X30X0.5
  • 92033
    92033-026 RING, SNAP, 24MM
    RING, SNAP, 24MM
