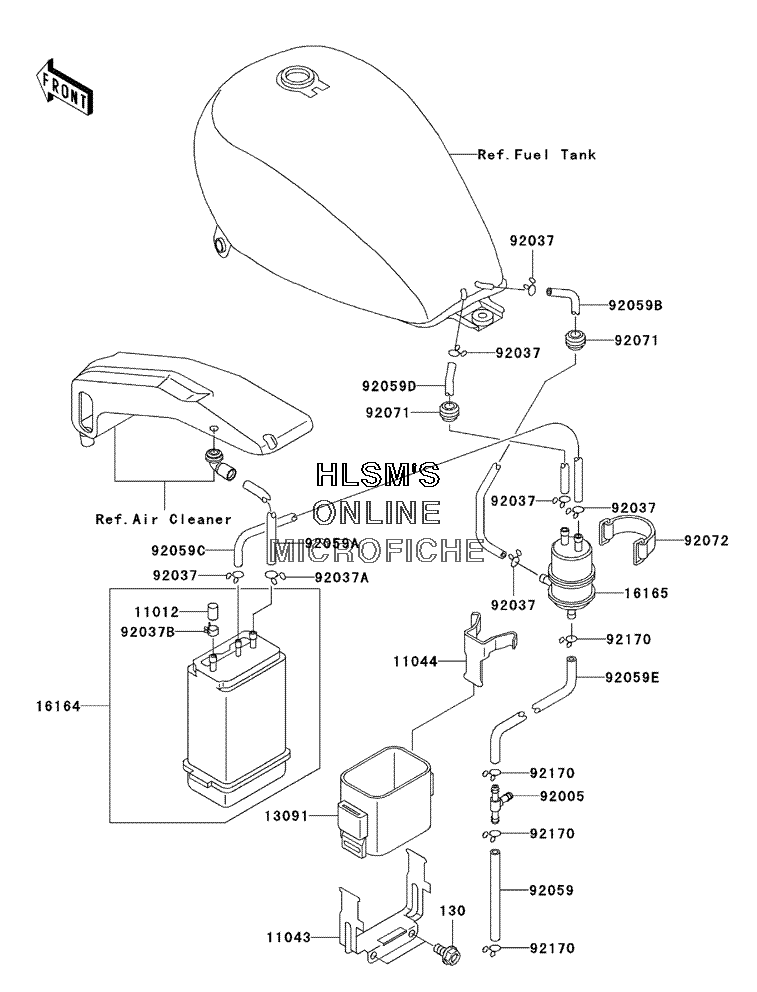

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 750 - 2004 года выпуска
-
№АртикулНазвание
-
130130C0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1104311043-1168 BRACKET, CANISTERBRACKET, CANISTER
-
1104411044-1056 BRACKET, CANISTERBRACKET, CANISTER
-
1309113091-1343 HOLDER, CANISTERHOLDER, CANISTER
-
1616416164-1054 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9200592005-1017 FITTING, TUBE, T, TYPEFITTING, TUBE, T, TYPE
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1104 CLAMP, HOSECLAMP, HOSE
-
92037B92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
9205992059-1131 TUBE, 4X9X110TUBE, 4X9X110
-
92059A92059-1415 TUBE, 7X12X540 (GREEN)TUBE, 7X12X540 (GREEN)
-
92059B92059-1564 TUBE, 5X8X470 (RED)TUBE, 5X8X470 (RED)
-
92059C92059-1566 TUBE, 5X8X230 (BLUE)TUBE, 5X8X230 (BLUE)
-
92059D92059-1567 TUBE, 5X8X400 (BLUE)TUBE, 5X8X400 (BLUE)
-
92059E92059-1568 TUBE, 4X9X420 (WHITE)TUBE, 4X9X420 (WHITE)
-
9207192071-019 GROMMET, 10MMGROMMET, 10MM
-
9207292072-1419 BAND, L=50BAND, L=50
-
9217092170-1450 CLAMPCLAMP
