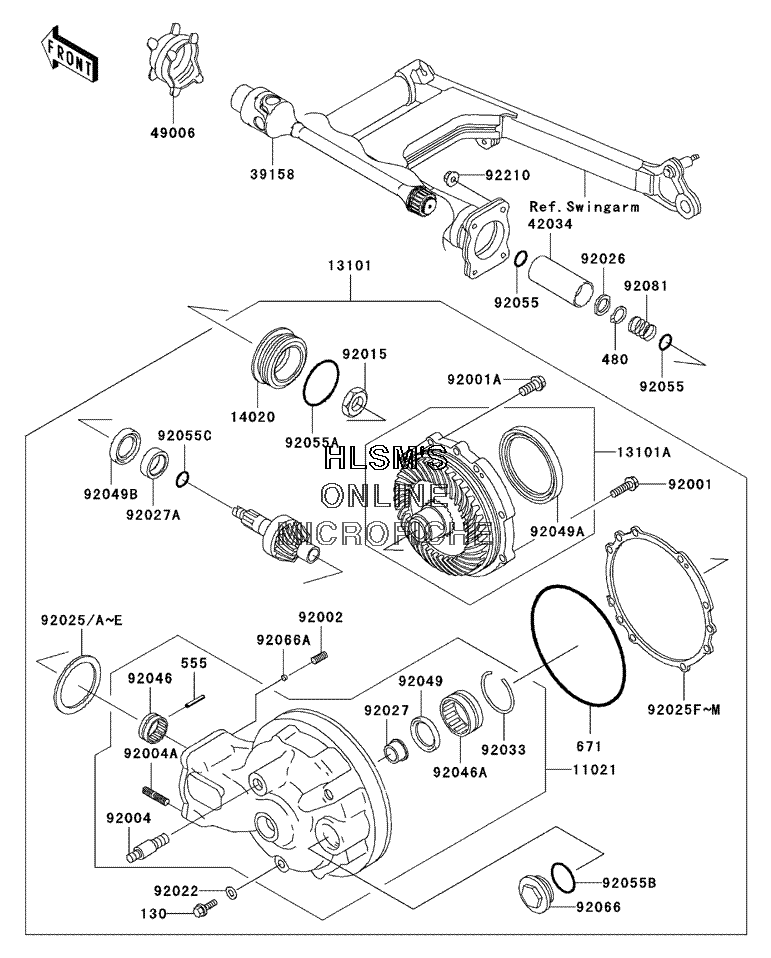

DRIVE SHAFT/FINAL GEAR для Kawasaki Vulcan 750 - 2004 года выпуска
-
№АртикулНазвание
-
1102111021-1066-7J CASE, ASSY, FINAL GEAR, M.SILVERCASE, ASSY, FINAL GEAR, M.SILVER
-
1310113101-1124-7J GEAR, ASSY, FINAL, M.SILVERGEAR, ASSY, FINAL, M.SILVER
-
13101A13101-5056 GEAR, ASSY, FINAL BEVELGEAR, ASSY, FINAL BEVEL
-
1402014020-1055 RETAINERRETAINER
-
3915839158-1052 SHAFT, ASSY, DRIVESHAFT, ASSY, DRIVE
-
4203442034-1035 COUPLING, DRIVE SHAFT, OUTERCOUPLING, DRIVE SHAFT, OUTER
-
4900649006-1173 BOOT, PROPELLER SHAFTBOOT, PROPELLER SHAFT
-
9200192001-1095 BOLT, FLANGED, 8X28BOLT, FLANGED, 8X28
-
92001A92001-1778 BOLT, 10X23BOLT, 10X23
-
9200292002-1836 SCREW, SET, SOCKET, 8X18SCREW, SET, SOCKET, 8X18
-
9200492004-1047 STUD, REAR SHOCKABSORBERSTUD, REAR SHOCKABSORBER
-
92004A92004-1159 STUD, 8X20STUD, 8X20
-
9201592015-1241 NUT, 25MMNUT, 25MM
-
9202292022-1086 WASHER, 8.2X16X1WASHER, 8.2X16X1
-
9202592025-1519 SHIM, 50X61X0.10SHIM, 50X61X0.10
-
92025A92025-1520 SHIM, 50X61X0.15SHIM, 50X61X0.15
-
92025B92025-1521 SHIM, 50X61X0.20SHIM, 50X61X0.20
-
92025C92025-1522 SHIM, 50X61X0.30SHIM, 50X61X0.30
-
92025D92025-1523 SHIM, 50X61X0.40SHIM, 50X61X0.40
-
92025E92025-1524 SHIM, 50X61X0.50SHIM, 50X61X0.50
-
92025F92025-1525 SHIM, T=0.15SHIM, T=0.15
-
92025G92025-1526 SHIM, T=0.50SHIM, T=0.50
-
92025H92025-1527 SHIM, T=0.60SHIM, T=0.60
-
92025I92025-1528 SHIM, T=0.70SHIM, T=0.70
-
92025J92025-1529 SHIM, T=0.80SHIM, T=0.80
-
92025K92025-1530 SHIM, T=0.90SHIM, T=0.90
-
92025L92025-1531 SHIM, T=1.00SHIM, T=1.00
-
92025M92025-1532 SHIM, T=1.20SHIM, T=1.20
-
9202692026-1129 SPACER, DRIVE SHAFTSPACER, DRIVE SHAFT
-
9202792027-1412 COLLARCOLLAR
-
92027A92027-1972 COLLAR, 25X35X11COLLAR, 25X35X11
-
9203392033-1187 RING, SNAP, 50.4MMRING, SNAP, 50.4MM
-
9204692046-1131 BEARING, NEEDLE, NK22/20RBEARING, NEEDLE, NK22/20R
-
92046A92046-1132 BEARING, NEEDLE, KN35/20RBEARING, NEEDLE, KN35/20R
-
9204992049-1210 SEAL, OIL, S3141 5.5SEAL, OIL, S3141 5.5
-
92049A92049-1212 SEAL, OIL, S75 9510SEAL, OIL, S75 9510
-
92049B92049-1234 SEAL, OIL, SD 35 48 8 L HSSEAL, OIL, SD 35 48 8 L HS
-
9205592055-1044 O-RING, ID=18.64O-RING, ID=18.64
-
92055A92055-1280 O-RING, 61.6MMO-RING, 61.6MM
-
92055B92055-1281 O-RING, 35.8MMO-RING, 35.8MM
-
130130X0812 BOLT, FLANGEDBOLT, FLANGED
-
480480J1600 CIRCLIP, TYPE, C, 16MMCIRCLIP, TYPE, C, 16MM
-
555555A0428 PIN, SPRINGPIN, SPRING
-
671671B25145 O-RINGO-RING
-
92055C92055-1332 O-RING, 19.8X1.9O-RING, 19.8X1.9
-
9206692066-1006-7J PLUG, OIL FILLER CAP (M.SILVER)PLUG, OIL FILLER CAP (M.SILVER)
-
92066A92066-1272 PLUG, 6.2X3PLUG, 6.2X3
-
9208192081-1717 SPRING, DRIVE SHAFTSPRING, DRIVE SHAFT
-
9221092210-0004 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
