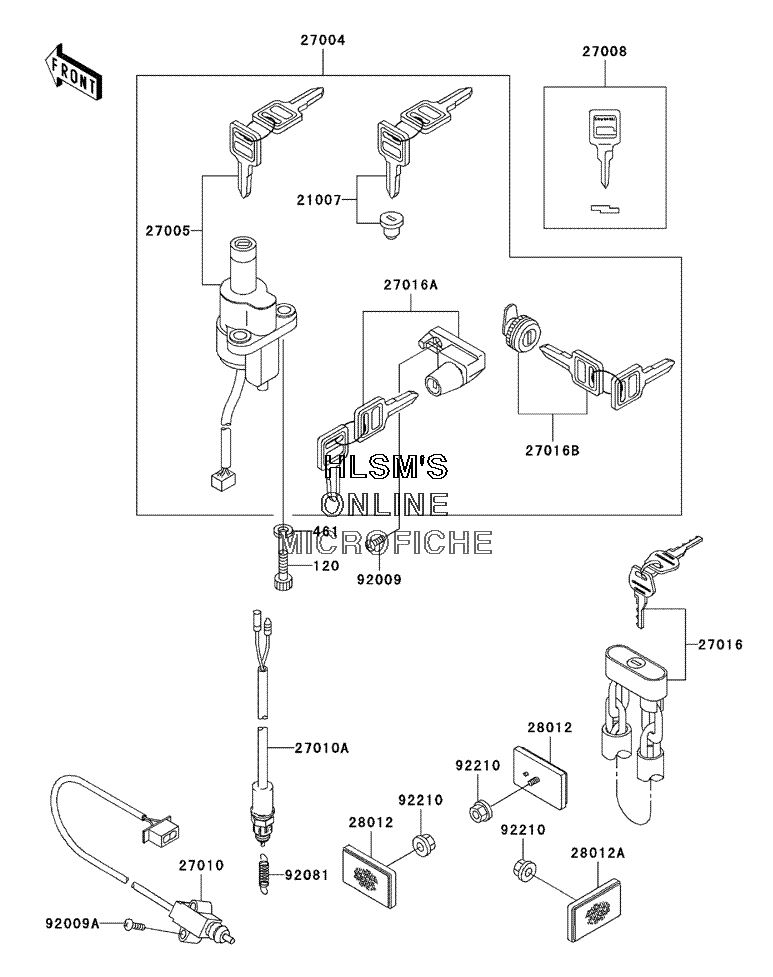

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 750 - 2004 года выпуска
-
№АртикулНазвание
-
120120T0822 BOLT, SOCKETBOLT, SOCKET
-
461461L0800 WASHER, SPRINGWASHER, SPRING
-
2100721007-5005 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700427004-5270 SWITCH, ASSYSWITCH, ASSY
-
2700527005-5052 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1103 KEY, LOCK, BLANK (OPTION)KEY, LOCK, BLANK (OPTION)
-
2701027010-1189 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1475 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1051 LOCK, ASSY, WHEELLOCK, ASSY, WHEEL
-
27016A27016-5060 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
27016B27016-5081 LOCK, ASSY, BOXLOCK, ASSY, BOX
-
2801228012-1009 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
28012A28012-1051 REFLECTOR, REFLEX, REARREFLECTOR, REFLEX, REAR
-
9200992009-1305 SCREW, 5X18SCREW, 5X18
-
92009A92009-1359 SCREW, 5X20SCREW, 5X20
-
9208192081-1544 SPRINGSPRING
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
