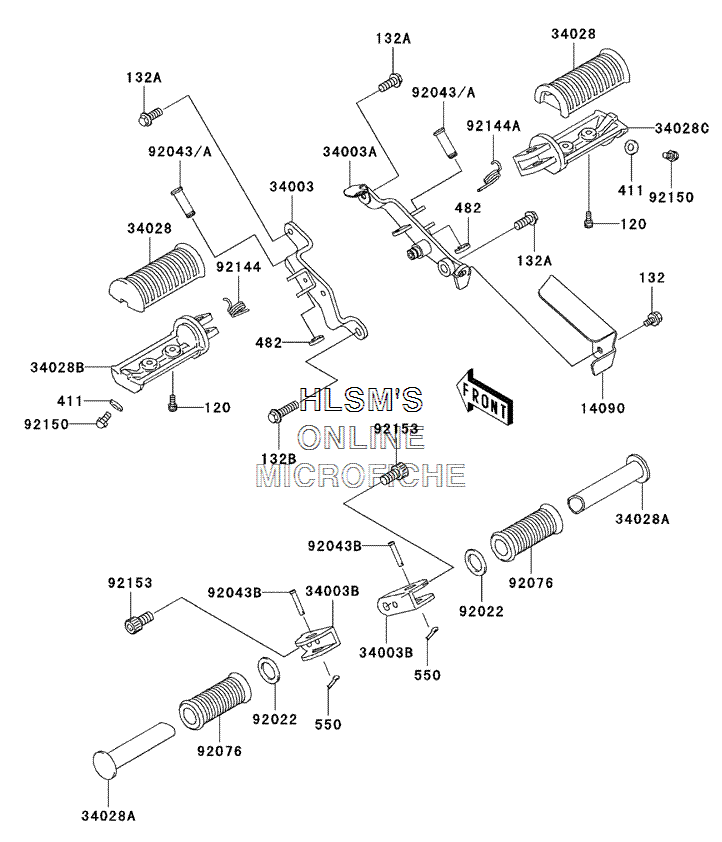

FOOTRESTS для Kawasaki Eliminator 125 - 2004 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0512 BOLT, SOCKET
    BOLT, SOCKET
  • 132
    132J0610 BOLT, FLANGED, SMALL, 6X10
    BOLT, FLANGED, SMALL, 6X10
  • 132A
    132J0820 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132B
    132J0830 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 411
    411F0600 WASHER, PLAIN, 6MM (BLACK)
    WASHER, PLAIN, 6MM (BLACK)
  • 482
    482L0100 CIRCLIP, TYPE, E, 10MM
    CIRCLIP, TYPE, E, 10MM
  • 550
    550D2018 PIN, COTTER, 2.0X18
    PIN, COTTER, 2.0X18
  • 14090
    14090-1937 COVER, CABLE
    COVER, CABLE
  • 34003
    34003-1464 HOLDER, STEP, FRONT (LEFT)
    HOLDER, STEP, FRONT (LEFT)
  • 34003A
    34003-1465 HOLDER, STEP, FRONT (RIGHT)
    HOLDER, STEP, FRONT (RIGHT)
  • 34003B
    34003-1486 HOLDER, STEP, REAR
    HOLDER, STEP, REAR
  • 34028
    34028-1372 STEP, RUBBER
    STEP, RUBBER
  • 34028A
    34028-1373 STEP, REAR
    STEP, REAR
  • 34028B
    34028-1495 STEP, FRONT (LEFT)
    STEP, FRONT (LEFT)
  • 34028C
    34028-1496 STEP, FRONT (RIGHT)
    STEP, FRONT (RIGHT)
  • 92022
    92022-1568 WASHER, 20X30X2.3
    WASHER, 20X30X2.3
  • 92043
    92043-0025 PIN, 12X37
    PIN, 12X37
  • 92043B
    92043-1581 PIN, 6X30.5
    PIN, 6X30.5
  • 92076
    92076-020 DAMPER
    DAMPER
  • 92144
    92144-1567 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92144A
    92144-1568 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92150
    92150-1153 BOLT, BANK SENSER
    BOLT, BANK SENSER
  • 92153
    92153-0567 BOLT, SOCKET, 10X20
    BOLT, SOCKET, 10X20
