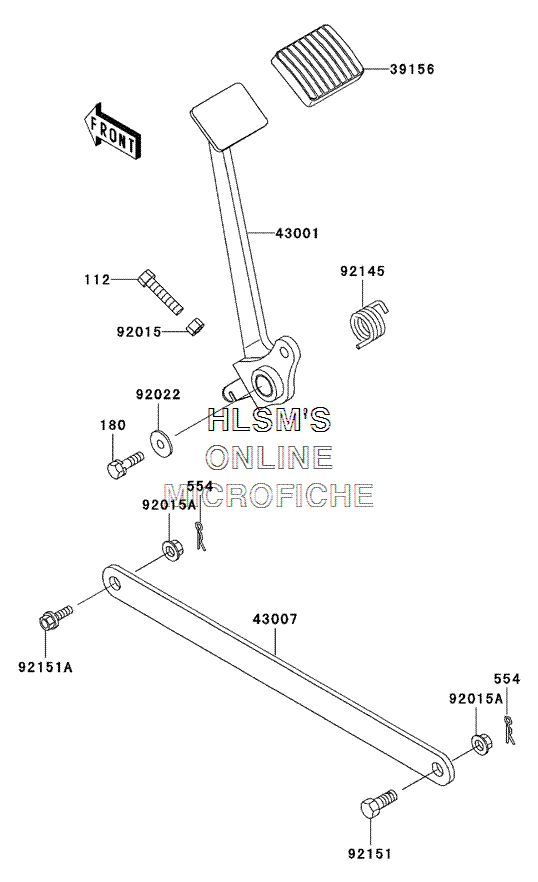

BRAKE PEDAL W/ TORQUE LINK для Kawasaki Eliminator 125 - 2004 года выпуска`
-
№АртикулНазвание
-
112112V0630 BOLT, UPSETBOLT, UPSET
-
180180J0616 BOLT, UPSET, WS, 6X16BOLT, UPSET, WS, 6X16
-
554554A0800 PIN, SNAP, 8MMPIN, SNAP, 8MM
-
3915639156-1071 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
4300143001-1390 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
4300743007-1037 ROD, TORQUEROD, TORQUE
-
9201592015-1391 NUT, 6MMNUT, 6MM
-
92015A92015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
9214592145-1072 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9215192151-1203 BOLT, 10X27BOLT, 10X27
-
92151A92151-1337 BOLT, FLANGED, 10X25BOLT, FLANGED, 10X25
