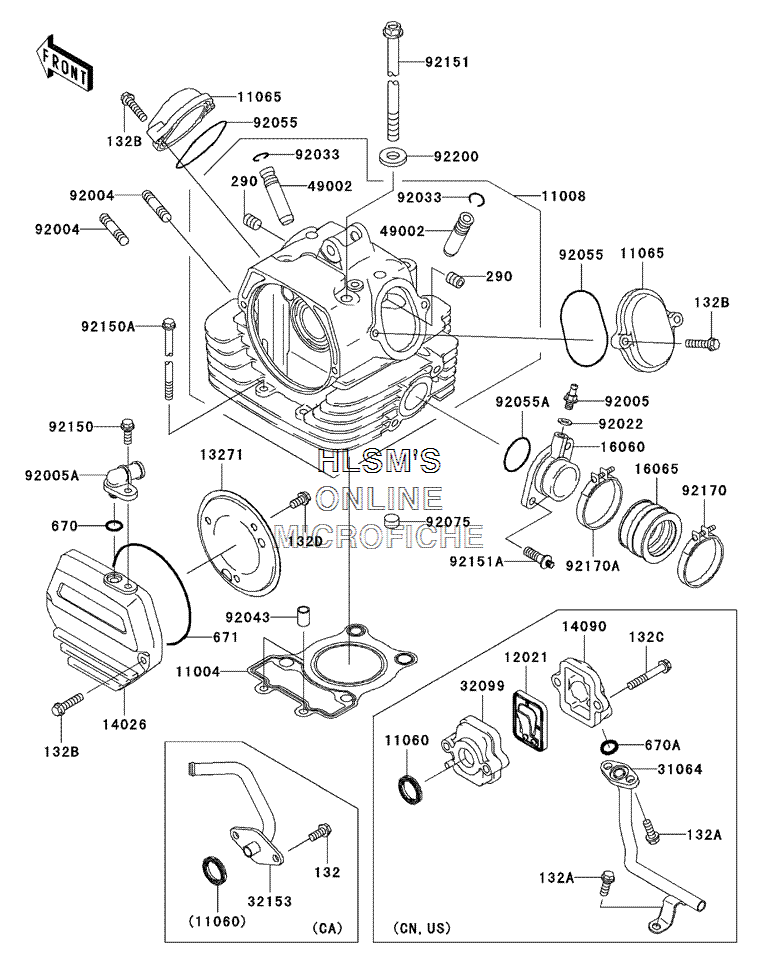

CYLINDER HEAD для Kawasaki Eliminator 125 - 2004 года выпуска`
-
№АртикулНазвание
-
132132V0614 BOLT, FLANGED, SMALL (CALIF. ONLY)BOLT, FLANGED, SMALL (CALIF. ONLY)
-
132A132V0616 BOLT, FLANGED, SMALL, 6X16 (EXCEPT CALIF.)BOLT, FLANGED, SMALL, 6X16 (EXCEPT CALIF.)
-
132B132V0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132C132V0640 BOLT, FLANGED, SMALL (EXCEPT CALIF.)BOLT, FLANGED, SMALL (EXCEPT CALIF.)
-
1100411004-1335 GASKET, HEADGASKET, HEAD
-
1100811008-1384 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1106011060-1815 GASKET, REED VALVEGASKET, REED VALVE
-
1106511065-1071 CAP, ROCKER CASECAP, ROCKER CASE
-
1202112021-1102 VALVE, ASSY, REED (EXCEPT CALIF.)VALVE, ASSY, REED (EXCEPT CALIF.)
-
1327113271-1109 PLATE, BREATHERPLATE, BREATHER
-
1402614026-1256 COVER, CHAIN, CAM SPROCKETCOVER, CHAIN, CAM SPROCKET
-
1409014090-1852 COVER, REED VALVE (EXCEPT CALIF.)COVER, REED VALVE (EXCEPT CALIF.)
-
1606016060-1084 PIPE, INTAKEPIPE, INTAKE
-
1606516065-1335 HOLDER, CARBURETORHOLDER, CARBURETOR
-
3106431064-1205 PIPE, COMP (EXCEPT CALIF.)PIPE, COMP (EXCEPT CALIF.)
-
3209932099-1187 CASE, REED VALVE (EXCEPT CALIF.)CASE, REED VALVE (EXCEPT CALIF.)
-
3215332153-1560 PIPE (CALIF. ONLY)PIPE (CALIF. ONLY)
-
4900249002-1116 GUIDE, VALVEGUIDE, VALVE
-
9200492004-1121 STUD, 8X30STUD, 8X30
-
9200592005-1337 FITTINGFITTING
-
92005A92005-1342 FITTING, BREATHERFITTING, BREATHER
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9203392033-1247 RING, SNAPRING, SNAP
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9205592055-112 O-RING, 53.5X2.6O-RING, 53.5X2.6
-
92055A92055-1256 O-RING, 32MMO-RING, 32MM
-
9207592075-1089 DAMPERDAMPER
-
9215092150-1394 BOLT, 6X16BOLT, 6X16
-
92150A92150-1986 BOLT, 6X110BOLT, 6X110
-
9215192151-1092 BOLT, 9X228.5BOLT, 9X228.5
-
92151A92151-1726 BOLT, 6X18BOLT, 6X18
-
9217092170-1094 CLAMP, CARBURETOR HOLDERCLAMP, CARBURETOR HOLDER
-
92170A92170-1527 CLAMP, 43MMCLAMP, 43MM
-
9220092200-1037 WASHER, 9.5X18X1.2WASHER, 9.5X18X1.2
-
132D132Y0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
290290Q0606 SCREW, SET, SOCKET, 6X6SCREW, SET, SOCKET, 6X6
-
670670B1510 O-RING, 10MMO-RING, 10MM
-
670A670B2010 O-RING, 10MM (EXCEPT CALIF.)O-RING, 10MM (EXCEPT CALIF.)
-
671671E2595 O-RINGO-RING
