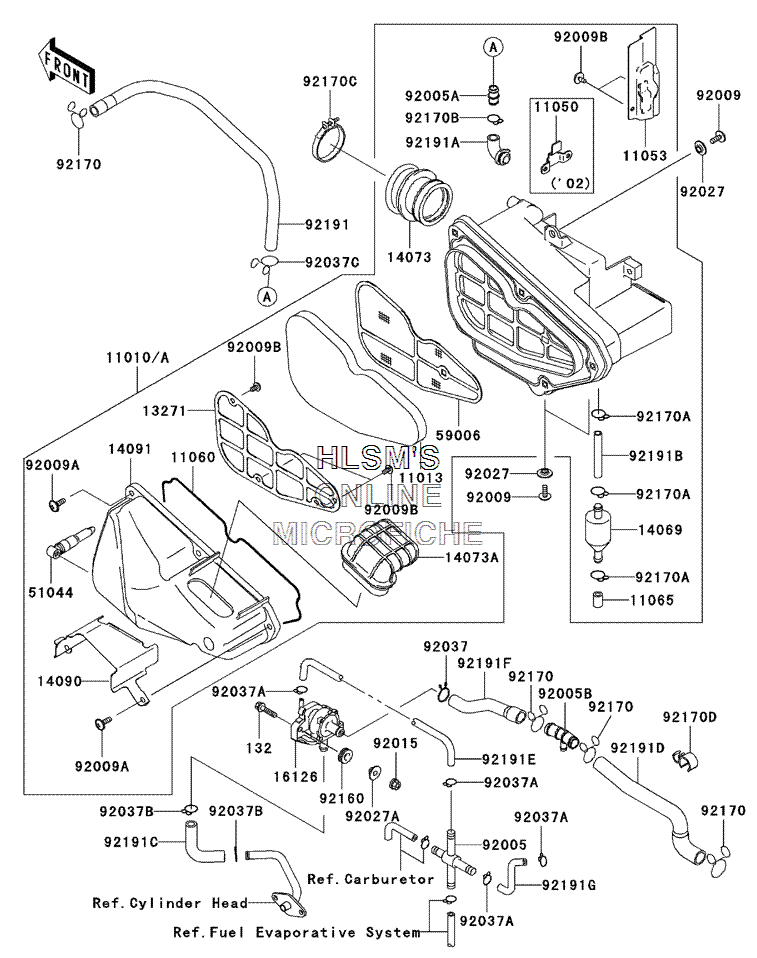

AIR CLEANER (CALIF. ONLY) для Kawasaki Eliminator 125 - 2004 года выпуска
-
№АртикулНазвание
-
1101011010-0008 FILTER, ASSY, AIRFILTER, ASSY, AIR
-
1101311013-1268 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1105311053-0124 BRACKETBRACKET
-
1106011060-1808 GASKET, AIR FILTERGASKET, AIR FILTER
-
1106511065-1088 CAP, BREATHERCAP, BREATHER
-
1327113271-1103 PLATE, ELEMENTPLATE, ELEMENT
-
1406914069-1064 BREATHERBREATHER
-
1407314073-1702 DUCT, CARBURETORDUCT, CARBURETOR
-
14073A14073-1703 DUCT, INTAKEDUCT, INTAKE
-
1409014090-1891 COVER, INTAKE DUCTCOVER, INTAKE DUCT
-
1409114091-1114 COVER, AIR FILTERCOVER, AIR FILTER
-
1612616126-1407 VALVEVALVE
-
5104451044-1196 TUBE, ASSY, DRAINTUBE, ASSY, DRAIN
-
5900659006-1057 ARRESTER, FLAMEARRESTER, FLAME
-
9200592005-1051 FITTING, TUBE, X, TYPEFITTING, TUBE, X, TYPE
-
92005A92005-1247 FITTINGFITTING
-
92005B92005-1373 FITTINGFITTING
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
92009A92009-1830 SCREW, 6X18SCREW, 6X18
-
92009B92009-1831 SCREW, TAPPING 5X10SCREW, TAPPING 5X10
-
132132V0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9202792027-1757 COLLARCOLLAR
-
92027A92027-1848 COLLAR, L=7.4COLLAR, L=7.4
-
9203792037-1468 CLAMPCLAMP
-
92037A92037-1610 CLAMPCLAMP
-
92037B92037-1862 CLAMP, 14MMCLAMP, 14MM
-
92037C92037-192 CLAMP, BREATHER TUBECLAMP, BREATHER TUBE
-
9216092160-1278 DAMPERDAMPER
-
9217092170-1017 CLAMPCLAMP
-
92170A92170-1796 CLAMPCLAMP
-
92170B92170-1845 CLAMPCLAMP
-
92170C92170-1864 CLAMPCLAMP
-
92170D92170-3737 CLAMPCLAMP
-
9219192191-1162 TUBE, BREATHERTUBE, BREATHER
-
92191A92191-1208 TUBE, BREATHERTUBE, BREATHER
-
92191B92191-1241 TUBE, 7X12X45TUBE, 7X12X45
-
92191C92191-1616 TUBE, L=108TUBE, L=108
-
92191D92191-1617 TUBE, A/C, FITTINGTUBE, A/C, FITTING
-
92191E92191-1618 TUBE, L=337TUBE, L=337
-
92191F92191-1621 TUBE, ASV, FITTINGTUBE, ASV, FITTING
-
92191G92191-1634 TUBE, L=88TUBE, L=88
