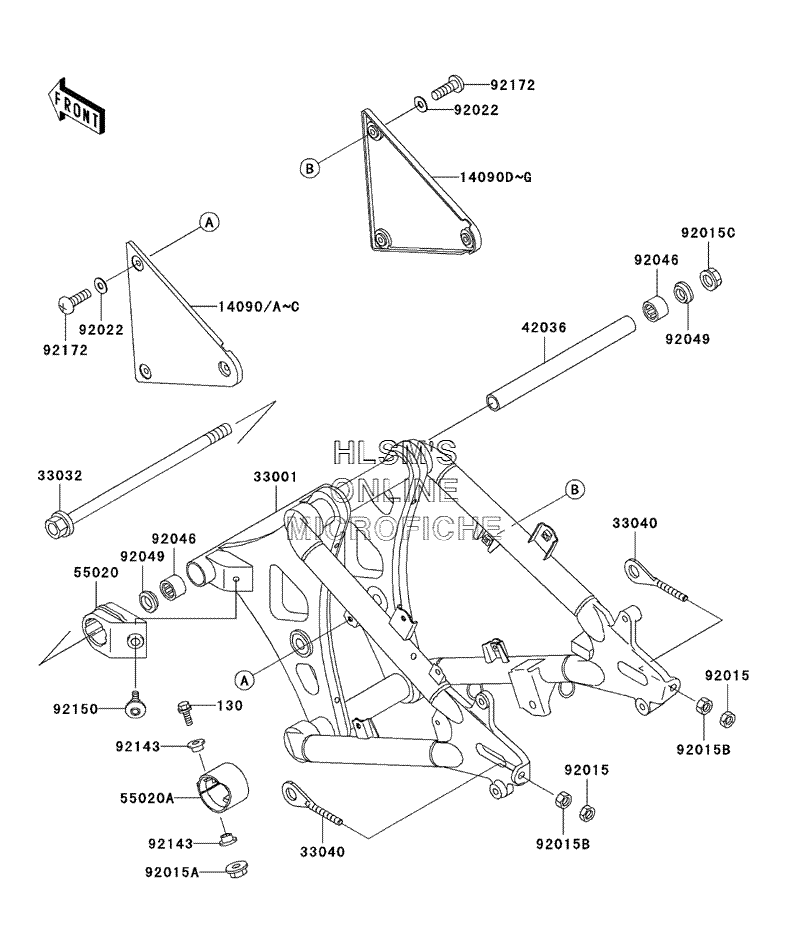

SUSPENSION - SWINGARM для Kawasaki Vulcan 800 Drifter - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0625 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 14090C
    14090-1988-468 COVER, SWING ARM (LEFT) (M.R.RED)
    COVER, SWING ARM (LEFT) (M.R.RED)
  • 14090G
    14090-1989-468 COVER, SWING ARM (RIGHT) (M.R.RED)
    COVER, SWING ARM (RIGHT) (M.R.RED)
  • 33001
    33001-1595 ARM, COMP, SWING
    ARM, COMP, SWING
  • 33032
    33032-1177 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1146 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 42036
    42036-1324 SLEEVE, SWING ARM, L=243
    SLEEVE, SWING ARM, L=243
  • 55020
    55020-1530 GUARD, CHAIN PIVOT
    GUARD, CHAIN PIVOT
  • 55020A
    55020-1531 GUARD, CHAIN CLOSS
    GUARD, CHAIN CLOSS
  • 92015
    92015-1364 NUT, 8MM
    NUT, 8MM
  • 92015A
    92015-1603 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92015B
    92015-1658 NUT, 8MM
    NUT, 8MM
  • 92015C
    92015-1946 NUT, FLANGED, 16MM
    NUT, FLANGED, 16MM
  • 92022
    92022-1143 WASHER, 6.5X16X1
    WASHER, 6.5X16X1
  • 92046
    92046-1174 BEARING, NEEDLE, TA2230Z
    BEARING, NEEDLE, TA2230Z
  • 92049
    92049-1289 SEAL, OIL, MHA22X29X5.7F
    SEAL, OIL, MHA22X29X5.7F
  • 92143
    92143-1088 COLLAR, L=6.6
    COLLAR, L=6.6
  • 92150
    92150-1154 BOLT, SOCKET, 6MM
    BOLT, SOCKET, 6MM
  • 92172
    92172-0004 SCREW, 6X14
    SCREW, 6X14
