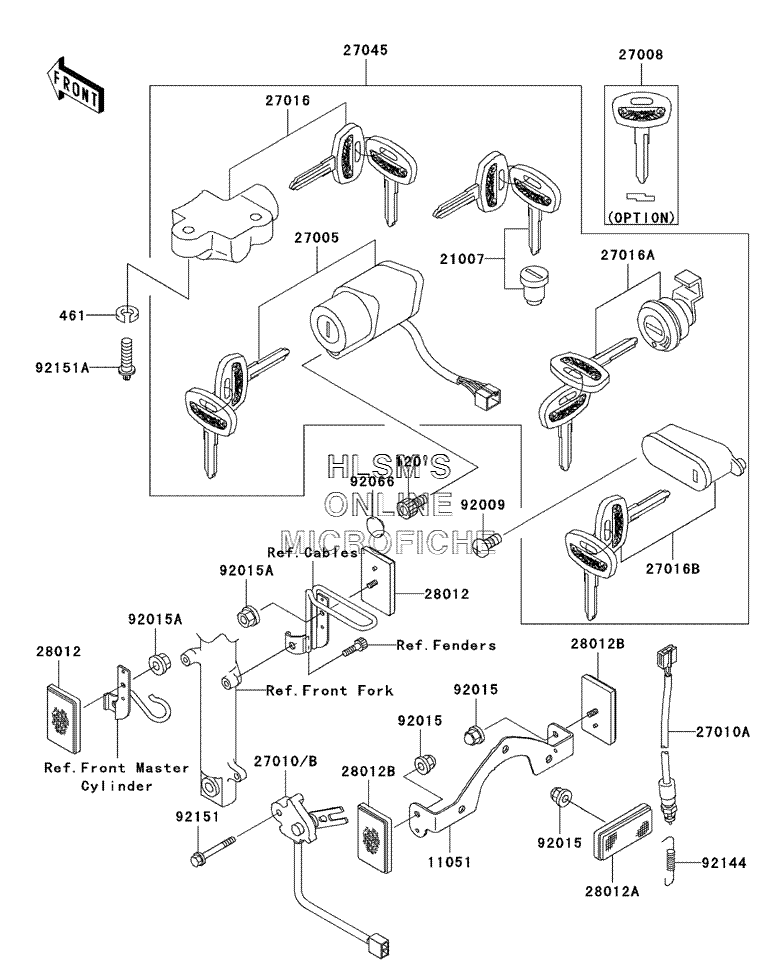

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 800 Drifter - 2003 года выпуска`
-
№АртикулНазвание
-
120120P0512 BOLT, SOCKETBOLT, SOCKET
-
461461L0600 WASHER, SPRINGWASHER, SPRING
-
1105111051-1100 BRACKET, REFLECTORBRACKET, REFLECTOR
-
2100721007-5047 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-1257 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1208 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
27010A27010-1412 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010B27010-1466 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2701627016-5269 LOCK, ASSY, STEERINGLOCK, ASSY, STEERING
-
27016A27016-5275 LOCK, ASSY, LIDLOCK, ASSY, LID
-
27016B27016-5276 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
2704527045-5129 SWITCH, ASSYSWITCH, ASSY
-
2801228012-1009 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
28012A28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012B28012-1088 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9200992009-1296 SCREW, 5X12SCREW, 5X12
-
9201592015-1263 NUT, LOCK, FLANGE CAP, 5MMNUT, LOCK, FLANGE CAP, 5MM
-
92015A92015-1656 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9206692066-1435 PLUGPLUG
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1576 BOLT, 6X45BOLT, 6X45
-
92151A92151-1946 BOLT, TORX, 6X22BOLT, TORX, 6X22
