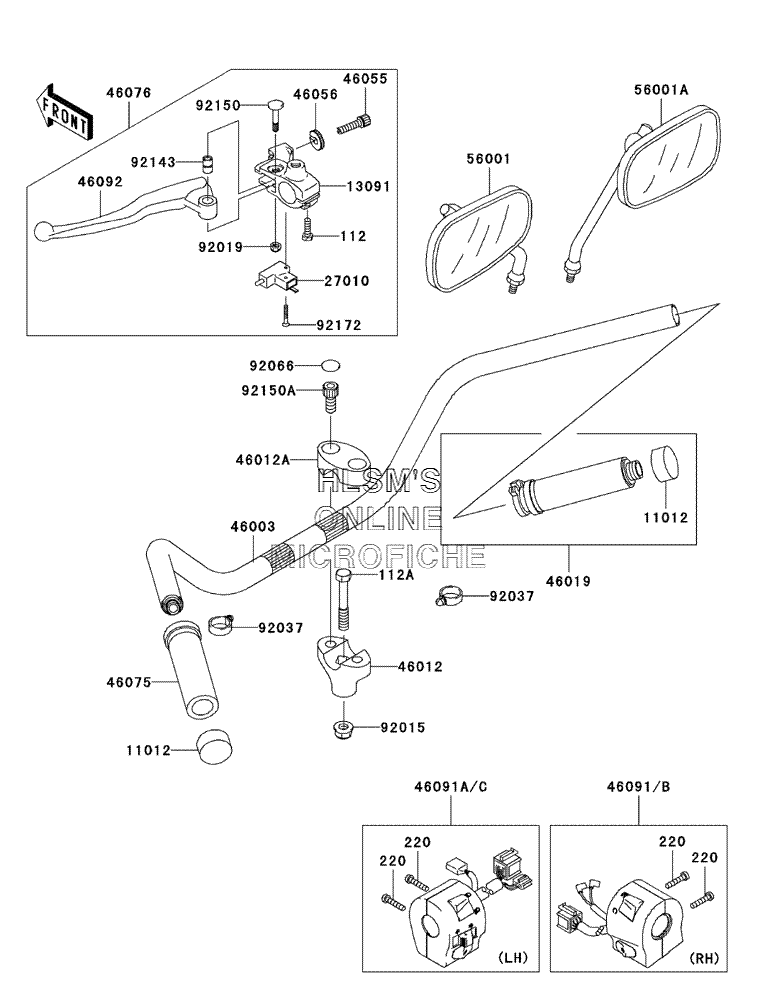

HANDLEBAR для Kawasaki Vulcan 800 Drifter - 2003 года выпуска

  • №
    Артикул
    Название
  • 112
    112G0620 BOLT, UPSET
    BOLT, UPSET
  • 112A
    112H1065 BOLT, UPSET, 10X65
    BOLT, UPSET, 10X65
  • 220
    220R0525 SCREW, PAN, CROSS, 5X25
    SCREW, PAN, CROSS, 5X25
  • 11012
    11012-1975 CAP, GRIP END
    CAP, GRIP END
  • 13091
    13091-1671 HOLDER, CLUTCH LEVER (SILVER)
    HOLDER, CLUTCH LEVER (SILVER)
  • 27010
    27010-1268 SWITCH, CLUTCH
    SWITCH, CLUTCH
  • 46003
    46003-1558 HANDLE
    HANDLE
  • 46012
    46012-1272 HOLDER, HANDLE, LOWER
    HOLDER, HANDLE, LOWER
  • 46012A
    46012-1273 HOLDER, HANDLE, UPPER
    HOLDER, HANDLE, UPPER
  • 46019
    46019-1109 GRIP, ASSY, THROTTLE
    GRIP, ASSY, THROTTLE
  • 46055
    46055-003 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 46056
    46056-005 NUT, CABLE ADJUST LOCK, 8MM
    NUT, CABLE ADJUST LOCK, 8MM
  • 46075
    46075-1074 GRIP (LEFT)
    GRIP (LEFT)
  • 46076
    46076-1237 LEVER, ASSY, GRIP, CLUTCH
    LEVER, ASSY, GRIP, CLUTCH
  • 46091B
    46091-1717 HOUSING, ASSY, CONTROL (RIGHT)
    HOUSING, ASSY, CONTROL (RIGHT)
  • 46091C
    46091-1811 HOUSING, ASSY, CONTROL (LEFT)
    HOUSING, ASSY, CONTROL (LEFT)
  • 46092
    46092-1204 LEVER, GRIP, CLUCTH
    LEVER, GRIP, CLUCTH
  • 56001
    56001-1451 MIRROR, ASSY (LEFT)
    MIRROR, ASSY (LEFT)
  • 56001A
    56001-1452 MIRROR, ASSY (RIGHT)
    MIRROR, ASSY (RIGHT)
  • 92015
    92015-1717 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92019
    92019-008 NUT, LOCK, 6MM
    NUT, LOCK, 6MM
  • 92037
    92037-1827 CLAMP, HOSE
    CLAMP, HOSE
  • 92066
    92066-1285 PLUG
    PLUG
  • 92143
    92143-1351 COLLAR
    COLLAR
  • 92150
    92150-1330 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92150A
    92150-1942 BOLT, SOCKET, 10X23
    BOLT, SOCKET, 10X23
  • 92172
    92172-0164 SCREW, 3X20
    SCREW, 3X20
