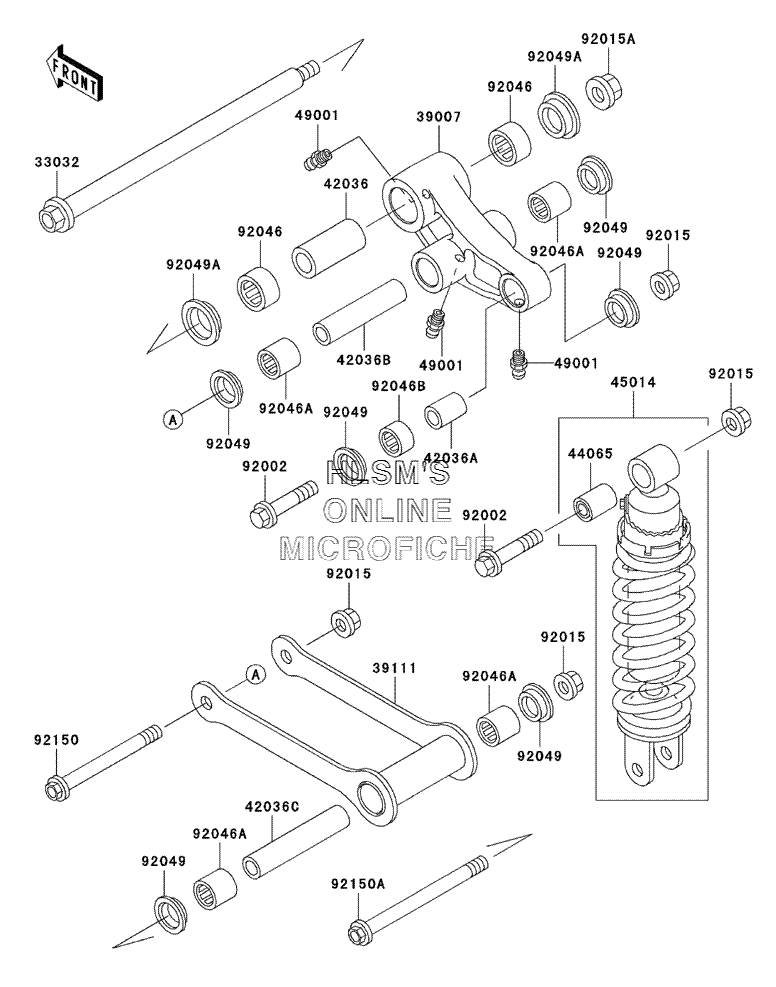

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki Vulcan 800 Drifter - 2003 года выпуска

  • №
    Артикул
    Название
  • 33032
    33032-1176 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 39007
    39007-1280 ARM, SUSP, UNI TRAK
    ARM, SUSP, UNI TRAK
  • 39111
    39111-1141 ROD, TIE, SUSPENSION
    ROD, TIE, SUSPENSION
  • 42036
    42036-1207 SLEEVE, 20X28X60
    SLEEVE, 20X28X60
  • 42036A
    42036-1234 SLEEVE, 12.1X20X30
    SLEEVE, 12.1X20X30
  • 42036B
    42036-1322 SLEEVE, 12.1X20X92
    SLEEVE, 12.1X20X92
  • 42036C
    42036-1323 SLEEVE, 12.1X20X108
    SLEEVE, 12.1X20X108
  • 44065
    44065-1017 BUSHING, SHOCKABSORBER
    BUSHING, SHOCKABSORBER
  • 45014
    45014-1708 SHOCKABSORBER
    SHOCKABSORBER
  • 49001
    49001-0001 NIPPLE, GREASE
    NIPPLE, GREASE
  • 92002
    92002-1130 BOLT, 12X55
    BOLT, 12X55
  • 92015
    92015-1433 NUT, FLANGED, 12MM
    NUT, FLANGED, 12MM
  • 92015A
    92015-1946 NUT, FLANGED, 16MM
    NUT, FLANGED, 16MM
  • 92046
    92046-0008 BEARING, NEEDLE, 7E, HVS 28X34X17
    BEARING, NEEDLE, 7E, HVS 28X34X17
  • 92046A
    92046-1110 BEARING, NEEDLE, BM202726
    BEARING, NEEDLE, BM202726
  • 92046B
    92046-1112 BEARING, NEEDLE, BM202715
    BEARING, NEEDLE, BM202715
  • 92049
    92049-1109 SEAL, OIL, ARM
    SEAL, OIL, ARM
  • 92049A
    92049-1181 SEAL, OIL
    SEAL, OIL
  • 92150
    92150-1895 BOLT, FLANGED, 12X117
    BOLT, FLANGED, 12X117
  • 92150A
    92150-1896 BOLT, FLANGED, 12X145
    BOLT, FLANGED, 12X145
