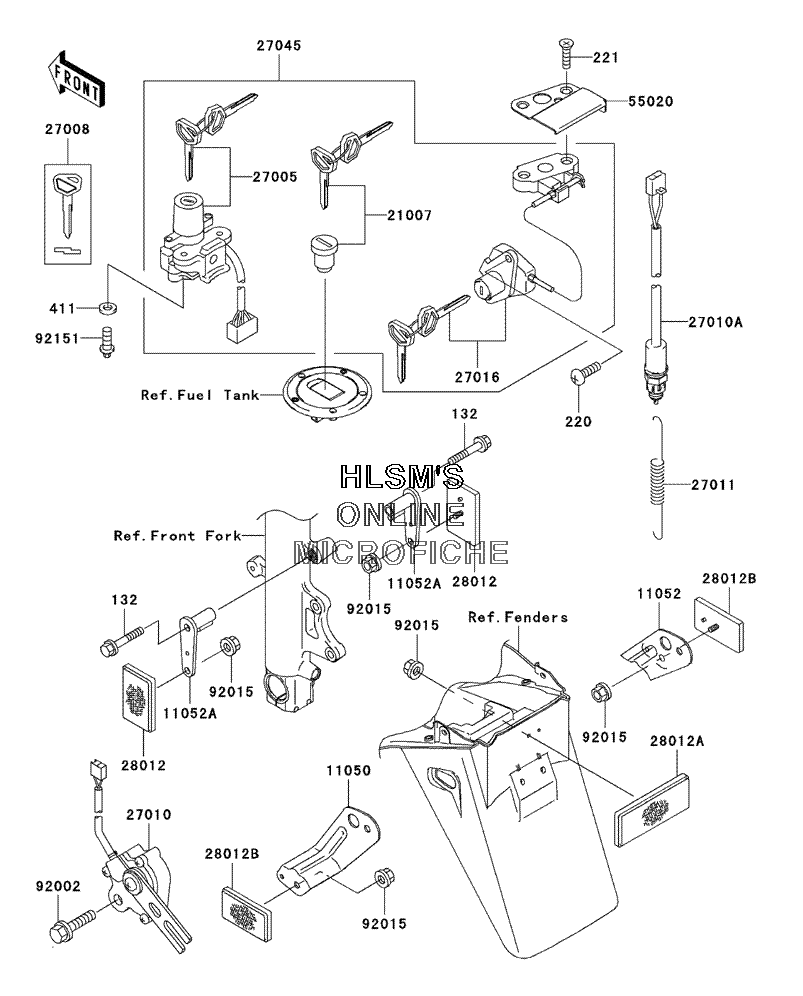

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-9R - 2003 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0635 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220C0612 SCREW, PAN, CROS, 6X12
    SCREW, PAN, CROS, 6X12
  • 221
    221B0628 SCREW, CSK, CROS, 6X28
    SCREW, CSK, CROS, 6X28
  • 411
    411E0600 WASHER, PLAIN, 6MM
    WASHER, PLAIN, 6MM
  • 11050
    11050-1483 BRACKET, REFLECTOR, REAR (LEFT)
    BRACKET, REFLECTOR, REAR (LEFT)
  • 11052
    11052-1555 BRACKET, REFLECTOR, REAR (RIGHT)
    BRACKET, REFLECTOR, REAR (RIGHT)
  • 11052A
    11052-1933 BRACKET, REFLECTOR, FRONT
    BRACKET, REFLECTOR, FRONT
  • 21007
    21007-5035 ROTOR, LOCK, TANK CAP
    ROTOR, LOCK, TANK CAP
  • 27005
    27005-1259 SWITCH, ASSY., IGNITION
    SWITCH, ASSY., IGNITION
  • 27008
    27008-1170 KEY, LOCK, BLANK (OPT)
    KEY, LOCK, BLANK (OPT)
  • 27010
    27010-1455 SWITCH, SIDE STAND
    SWITCH, SIDE STAND
  • 27010A
    27010-1479 SWITCH, REAR BRAKE
    SWITCH, REAR BRAKE
  • 27011
    27011-017 SPRING, BRAKE LAMP SWITCH
    SPRING, BRAKE LAMP SWITCH
  • 27016
    27016-5284 LOCK, ASSY., SEAT
    LOCK, ASSY., SEAT
  • 27045
    27045-5156 SWITCH, ASSY.
    SWITCH, ASSY.
  • 28012
    28012-1003 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 28012A
    28012-1077 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 28012B
    28012-1088 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 55020
    55020-1483 GUARD, SEAT LOCK
    GUARD, SEAT LOCK
  • 92002
    92002-1582 BOLT, 6X25
    BOLT, 6X25
  • 92015
    92015-1259 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
  • 92151
    92151-1911 BOLT, TORX, 6X16
    BOLT, TORX, 6X16
