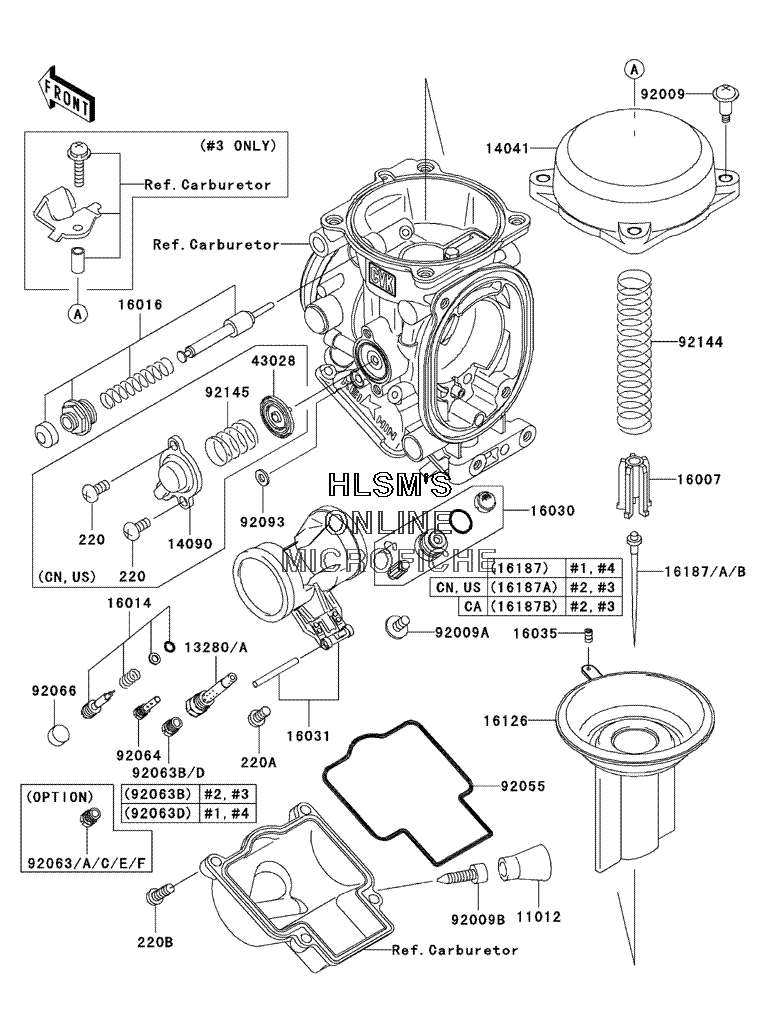

CARBURETOR PARTS для Kawasaki NINJA ZX-9R - 2003 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1675 CAP, DRAIN SCREW
    CAP, DRAIN SCREW
  • 13280
    13280-1276 HOLDER, JET NEEDLE (EXCEPT CALIF.)
    HOLDER, JET NEEDLE (EXCEPT CALIF.)
  • 13280A
    13280-1277 HOLDER, JET NEEDLE (CALIF. ONLY)
    HOLDER, JET NEEDLE (CALIF. ONLY)
  • 14041
    14041-1100 COVER, COMP, MIXING
    COVER, COMP, MIXING
  • 14090
    14090-1959 COVER, AIR CUT VALVE (EXCEPT CALIF.)
    COVER, AIR CUT VALVE (EXCEPT CALIF.)
  • 16007
    16007-1117 SEAT, SPRING, VALVE
    SEAT, SPRING, VALVE
  • 16014
    16014-1085 SCREW, PILOT AIR (EXCEPT CALIF.)
    SCREW, PILOT AIR (EXCEPT CALIF.)
  • 16016
    16016-1090 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16030
    16030-1077 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1080 FLOAT
    FLOAT
  • 16035
    16035-1055 JET, AIR, LEAK
    JET, AIR, LEAK
  • 16126
    16126-1359 VALVE, VACUUM
    VALVE, VACUUM
  • 16187
    16187-1230 NEEDLE, JET, N6NF
    NEEDLE, JET, N6NF
  • 16187A
    16187-1231 NEEDLE, JET, N74W (EXCEPT CALIF.)
    NEEDLE, JET, N74W (EXCEPT CALIF.)
  • 16187B
    16187-1237 NEEDLE, JET, N6NG (CALIF. ONLY)
    NEEDLE, JET, N6NG (CALIF. ONLY)
  • 43028
    43028-1085 DIAPHRAGM, AIR CUT VALVE (EXCEPT CALIF.)
    DIAPHRAGM, AIR CUT VALVE (EXCEPT CALIF.)
  • 92009
    92009-1549 SCREW, 4X4.4
    SCREW, 4X4.4
  • 92009A
    92009-1550 SCREW, 4X8
    SCREW, 4X8
  • 92009B
    92009-1551 SCREW, DRAIN, M6X0.75
    SCREW, DRAIN, M6X0.75
  • 92055
    92055-1426 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92063
    92063-1332 JET, MAIN, #155 (OPT)
    JET, MAIN, #155 (OPT)
  • 92063A
    92063-1344 JET, MAIN, #158 (OPT)
    JET, MAIN, #158 (OPT)
  • 92063B
    92063-1345 JET, MAIN, #160
    JET, MAIN, #160
  • 92063C
    92063-1346 JET, MAIN, #162 (OPT)
    JET, MAIN, #162 (OPT)
  • 92063D
    92063-1347 JET, MAIN, #165
    JET, MAIN, #165
  • 92063E
    92063-1386 JET, MAIN, #170 (OPT)
    JET, MAIN, #170 (OPT)
  • 92063F
    92063-1480 JET, MAIN, #168 (OPT)
    JET, MAIN, #168 (OPT)
  • 92064
    92064-1119 JET, PILOT, #38
    JET, PILOT, #38
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92093
    92093-1046 SEAL, "U"RING (EXCEPT CALIF.)
    SEAL, "U"RING (EXCEPT CALIF.)
  • 220
    220B0408 SCREW, PAN, CROS (EXCEPT CALIF.)
    SCREW, PAN, CROS (EXCEPT CALIF.)
  • 220A
    220D0408 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220B
    220D0414 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 92144
    92144-1962 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
  • 92145
    92145-1149 SPRING, AIR CUT VALVE (EXCEPT CALIF.)
    SPRING, AIR CUT VALVE (EXCEPT CALIF.)
