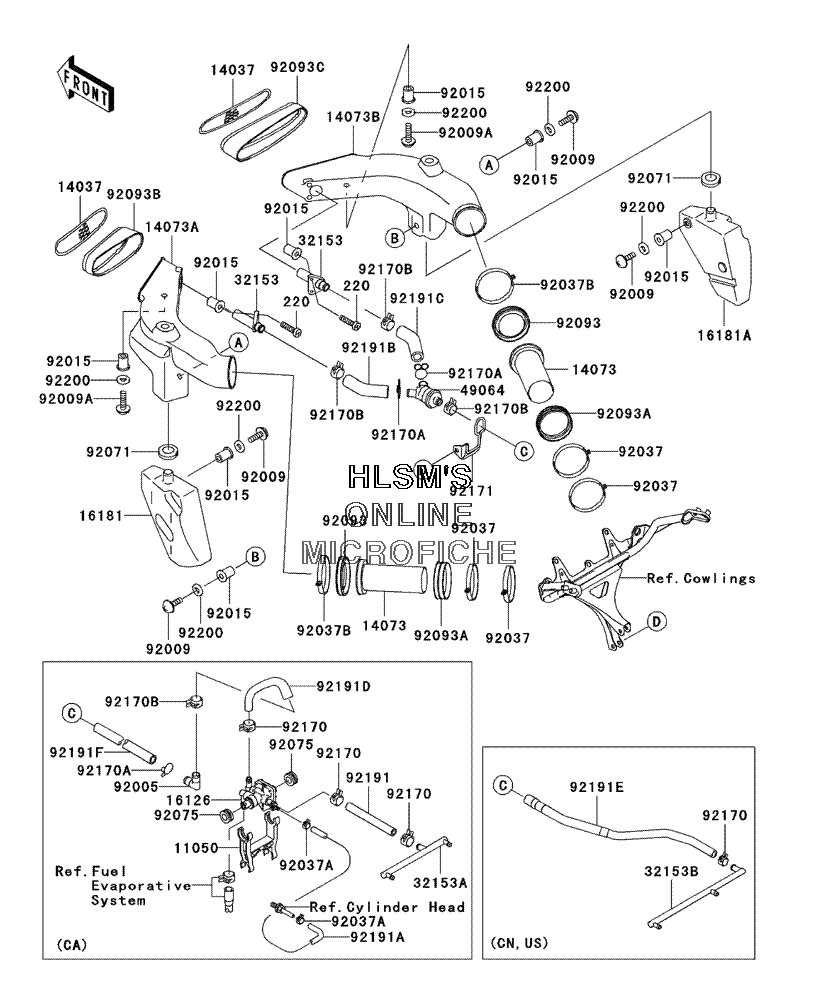

AIR DUCT для Kawasaki NINJA ZX-9R - 2003 года выпуска

  • №
    Артикул
    Название
  • 11050
    11050-1509 BRACKET (CALIF. ONLY)
    BRACKET (CALIF. ONLY)
  • 14037
    14037-1267 SCREEN, AIR DUCT
    SCREEN, AIR DUCT
  • 14073
    14073-1706 DUCT, AIR FILTER
    DUCT, AIR FILTER
  • 14073A
    14073-1760 DUCT (LEFT)
    DUCT (LEFT)
  • 14073B
    14073-1761 DUCT (RIGHT)
    DUCT (RIGHT)
  • 16126
    16126-1288 VALVE (CALIF. ONLY)
    VALVE (CALIF. ONLY)
  • 16181
    16181-1089 TANK, RESONATOR (LEFT)
    TANK, RESONATOR (LEFT)
  • 16181A
    16181-1090 TANK, RESONATOR (RIGHT)
    TANK, RESONATOR (RIGHT)
  • 32153
    32153-1103 PIPE, AIR VENT
    PIPE, AIR VENT
  • 32153A
    32153-1104 PIPE, 3WAY (CALIF. ONLY)
    PIPE, 3WAY (CALIF. ONLY)
  • 32153B
    32153-1321 PIPE (EXCEPT CALIF.)
    PIPE (EXCEPT CALIF.)
  • 49064
    49064-1061 FILTER, AIR
    FILTER, AIR
  • 92005
    92005-1309 FITTING (CALIF. ONLY)
    FITTING (CALIF. ONLY)
  • 92009
    92009-1909 SCREW, 5X16
    SCREW, 5X16
  • 92009A
    92009-1934 SCREW, 5X20
    SCREW, 5X20
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92037
    92037-129 CLAMP, AIR FILTER, ID=76 (BLACK)
    CLAMP, AIR FILTER, ID=76 (BLACK)
  • 92037A
    92037-1461 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037B
    92037-1654 CLAMP
    CLAMP
  • 92071
    92071-1042 GROMMET, AIR FILTER
    GROMMET, AIR FILTER
  • 92075
    92075-1621 DAMPER, MUFFLER (CALIF. ONLY)
    DAMPER, MUFFLER (CALIF. ONLY)
  • 92093
    92093-1456 SEAL, AIR FILTER DUCT
    SEAL, AIR FILTER DUCT
  • 92093A
    92093-1470 SEAL
    SEAL
  • 92093B
    92093-1514 SEAL, AIR DUCT (LEFT)
    SEAL, AIR DUCT (LEFT)
  • 92093C
    92093-1515 SEAL, AIR DUCT (RIGHT)
    SEAL, AIR DUCT (RIGHT)
  • 92170
    92170-1118 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92170
    92170-1118 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92170A
    92170-1486 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92170A
    92170-1486 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92170B
    92170-1909 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92170B
    92170-1909 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92171
    92171-1513 CLAMP, TUBE AND CABLE
    CLAMP, TUBE AND CABLE
  • 220
    220D0520 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 92191
    92191-1191 TUBE (CALIF. ONLY)
    TUBE (CALIF. ONLY)
  • 92191A
    92191-1192 TUBE (CALIF. ONLY)
    TUBE (CALIF. ONLY)
  • 92191B
    92191-1476 TUBE
    TUBE
  • 92191C
    92191-1477 TUBE
    TUBE
  • 92191D
    92191-1482 TUBE (CALIF. ONLY)
    TUBE (CALIF. ONLY)
  • 92191E
    92191-1519 TUBE (EXCEPT CALIF.)
    TUBE (EXCEPT CALIF.)
  • 92191F
    92191-1520 TUBE (CALIF. ONLY)
    TUBE (CALIF. ONLY)
  • 92200
    92200-1480 WASHER, NYLON, 5.3X11.5X0.5
    WASHER, NYLON, 5.3X11.5X0.5
