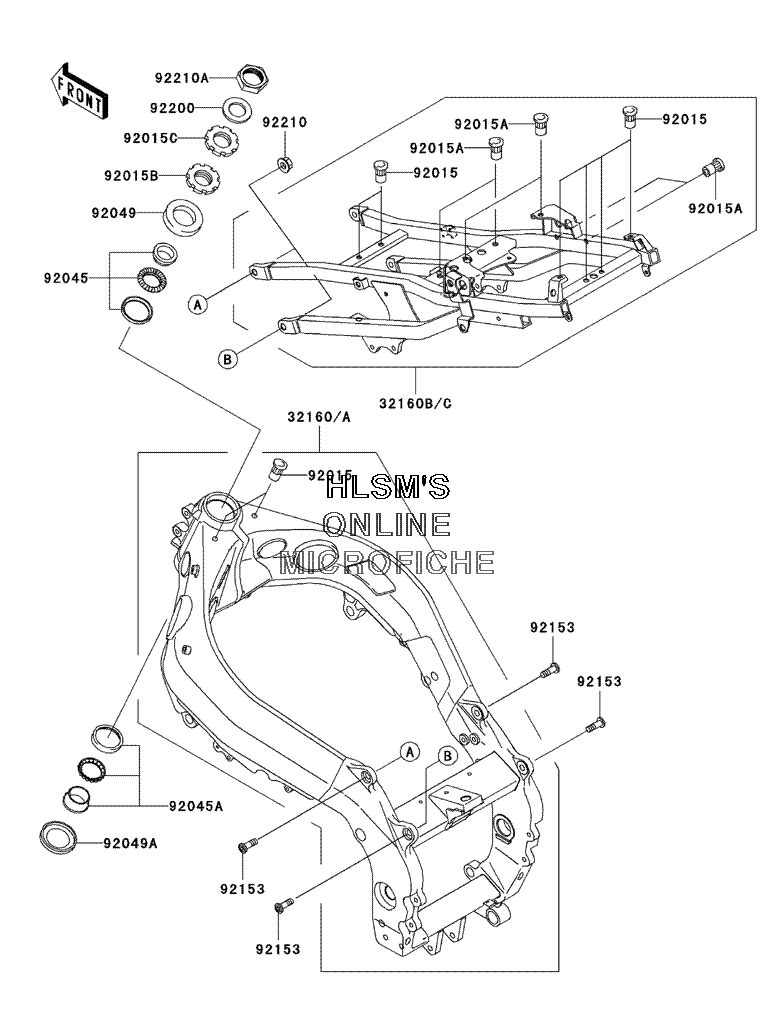

FRAME для Kawasaki NINJA ZX-9R - 2003 года выпуска

  • №
    Артикул
    Название
  • 32160A
    32160-1767-458 FRAME, COMP, AL, FRONT (P.SILVER)
    FRAME, COMP, AL, FRONT (P.SILVER)
  • 32160C
    32160-1769-458 FRAME, COMP, AL, REAR (P.SILVER)
    FRAME, COMP, AL, REAR (P.SILVER)
  • 92015
    92015-1791 NUT, POP, 6MM, L=15
    NUT, POP, 6MM, L=15
  • 92015A
    92015-1792 NUT, POP, 6MM, L=16.5
    NUT, POP, 6MM, L=16.5
  • 92015B
    92015-1803 NUT, 25MM
    NUT, 25MM
  • 92015C
    92015-1810 NUT, 25MM
    NUT, 25MM
  • 92045
    92045-1382 BEARING, BALL, SAC2547, 2
    BEARING, BALL, SAC2547, 2
  • 92045A
    92045-1384 BEARING, BALL, SF07A17PX1V1
    BEARING, BALL, SF07A17PX1V1
  • 92049
    92049-1313 SEAL, OIL, XMH33 70 6.4J, A
    SEAL, OIL, XMH33 70 6.4J, A
  • 92049A
    92049-1383 SEAL, OIL, XMHE 43 55 4J
    SEAL, OIL, XMHE 43 55 4J
  • 92153
    92153-1164 BOLT, SOCKET, 10X35
    BOLT, SOCKET, 10X35
  • 92200
    92200-1126 WASHER, 22.5X36X3.2
    WASHER, 22.5X36X3.2
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92210A
    92210-1202 NUT, 22MM
    NUT, 22MM
