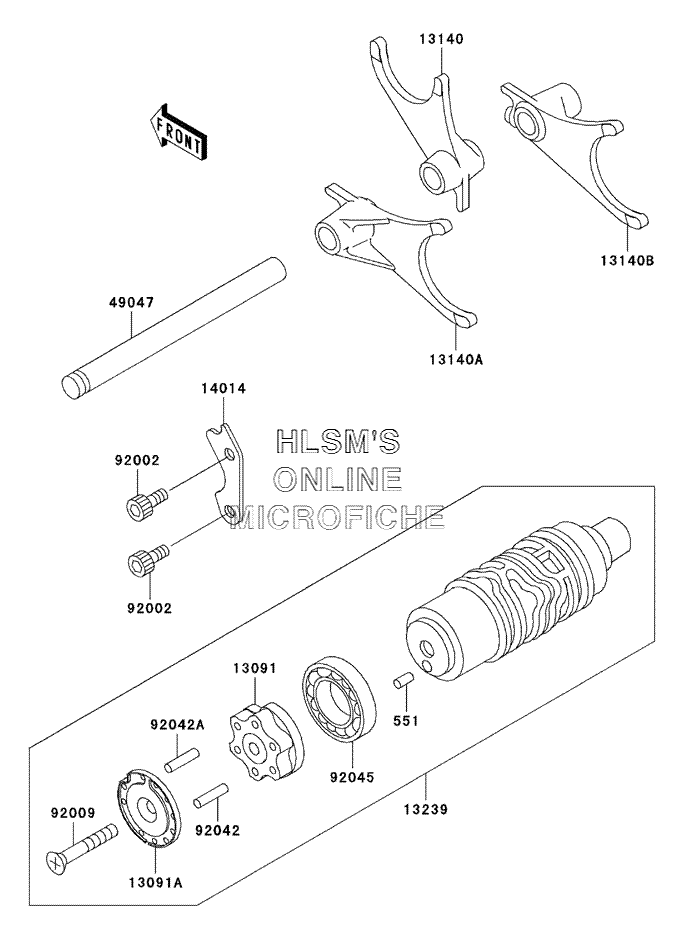

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki Concours - 2003 года выпуска`
-
№АртикулНазвание
-
551551A0408 PIN, DOWEL, 4X8PIN, DOWEL, 4X8
-
1309113091-1275 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
13091A13091-1334 HOLDER, NEUTRALHOLDER, NEUTRAL
-
1314013140-1196 FORK, SHIFTFORK, SHIFT
-
13140A13140-1197 FORK, SHIFTFORK, SHIFT
-
13140B13140-1209 FORK, SHIFTFORK, SHIFT
-
1323913239-1122 DRUM, ASSY, CHANGEDRUM, ASSY, CHANGE
-
1401414014-1059 PLATE, POSITION, CHANGE DRUMPLATE, POSITION, CHANGE DRUM
-
4904749047-1055 ROD, SHIFTROD, SHIFT
-
9200292002-1778 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9200992009-1599 SCREW, 6X45SCREW, 6X45
-
9204292042-014 PIN, DOWEL, 4X15.8PIN, DOWEL, 4X15.8
-
92042A92042-020 PIN, DOWEL, 4X17.8PIN, DOWEL, 4X17.8
-
9204592045-1045 BEARING, BALL, 16005 (NTN)BEARING, BALL, 16005 (NTN)
