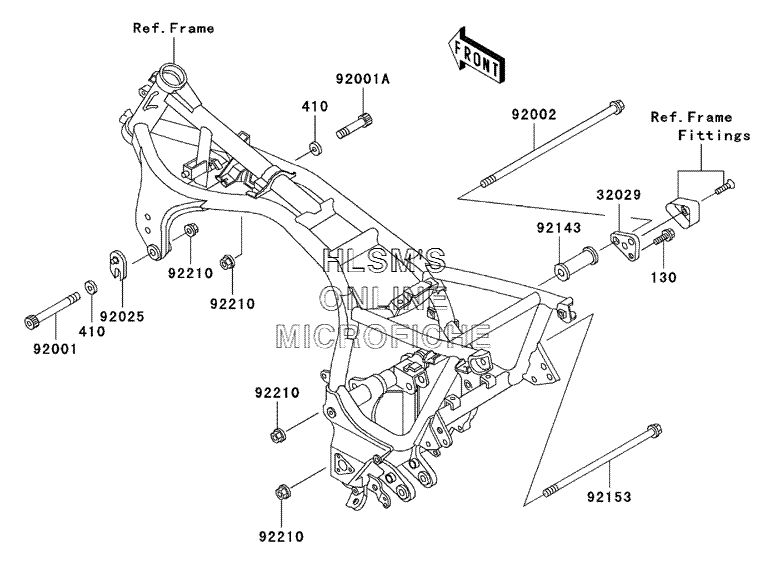

ENGINE MOUNT для Kawasaki Concours - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0812 BOLT, FLANGED
    BOLT, FLANGED
  • 410
    410B1000 WASHER, PLAIN, SMALL, 10MM
    WASHER, PLAIN, SMALL, 10MM
  • 32029
    32029-1473 BRACKET, ENGINE, REAR, UPPER (RIGHT)
    BRACKET, ENGINE, REAR, UPPER (RIGHT)
  • 92001
    92001-1888 BOLT, SOCKET, 10X100
    BOLT, SOCKET, 10X100
  • 92001A
    92001-1889 BOLT, SOCKET, 10X72
    BOLT, SOCKET, 10X72
  • 92002
    92002-1722 BOLT, FLANGED, 10X265
    BOLT, FLANGED, 10X265
  • 92025
    92025-1616 SHIM, ENGINE MOUNT, T=1.2
    SHIM, ENGINE MOUNT, T=1.2
  • 92143
    92143-1027 COLLAR, L=57.5
    COLLAR, L=57.5
  • 92153
    92153-0445 BOLT, FLANGED, 10X215
    BOLT, FLANGED, 10X215
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
